Rear Cushion Lever (Dr200Sl7 E33) для мотоциклов Suzuki DR200S (2017)

Москва и регионы России

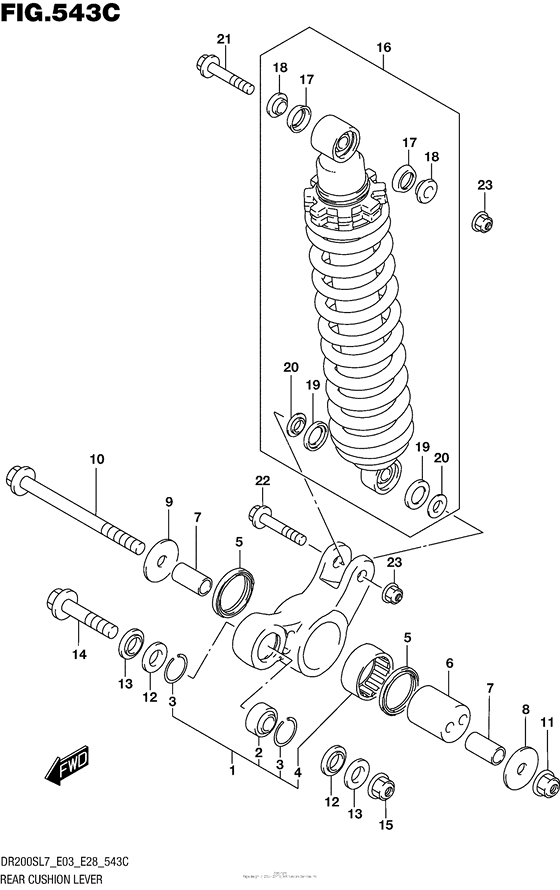

Rear Cushion Lever (Dr200Sl7 E33)

Suzuki DR200S

Rear Cushion Lever (Dr200Sl7 E33)

Rear Cushion Lever (Dr200Sl7 E33)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

#

oem код

название

цена

1

62600-42812-000

LEVER SET,RR CUSHION

LEVER SET,RR CUSHION

Lever set, rear cushion

2

09269-12006-000

BEARING(12X26X16)

BEARING(12X26X16)

Bearing (12x26x16)

3

62277-27C20-000

RING,BEARING STOPPER

RING,BEARING STOPPER

4

09263-37003-000

BEARING(37X47X20)

BEARING(37X47X20)

Bearing (37x47x20)

5

62624-42A00-000

Уплотнение

Уплотнение

Seal, dust inner

6

62623-42A11-000

SPACER,RR SUSPENSION ECCENTRIC

SPACER,RR SUSPENSION ECCENTRIC

7

62646-42A11-000

SPACER,CUSHION LEVER SHAFT

SPACER,CUSHION LEVER SHAFT

Spacer, shaft

8

62628-42AA0-000

Шайба

Шайба

Washer, center lh (12x40x1)

9

62625-42AA0-000

WASHER,RR CUSH LVR CTR,R

WASHER,RR CUSH LVR CTR,R

Washer, center rh (14x40x1)

10

62621-42AA0-000

SHAFT,RR CUSHION LEVER CTR

SHAFT,RR CUSHION LEVER CTR

Shaft, center

11

08319-2112A-000

Гайка

Гайка

12

62647-05A00-000

SEAL,RR CUSHION ROD DUST

SEAL,RR CUSHION ROD DUST

Seat, dust front

13

62316-05A01-000

SPACER,RR CUSHION ROD

SPACER,RR CUSHION ROD

Spacer, front

14

62668-42A02-000

BOLT,CUSHION LEVER

BOLT,CUSHION LEVER

15

08319-3112A-000

Гайка

Гайка

16

62100-44AF0-28W

ABSORBER ASSY,REAR SHOCK

ABSORBER ASSY,REAR SHOCK

17

62226-20900-000

Пыльник

Пыльник

18

62684-20900-000

Кольцо/шайба

Кольцо/шайба

19

62226-02B00-000

Уплотнение

Уплотнение

Seal, dust lower

20

62684-31300-000

Втулка

Втулка

Collar, lower

21

09103-10428-000

BOLT(10X58)

BOLT(10X58)

22

09103-10126-000

BOLT(10X48)

BOLT(10X48)

Bolt (10x48)

23

09159-10115-000

Гайка

Гайка
