Обтекатель задний для мотоциклов Suzuki DR125 (2009)

Москва и регионы России

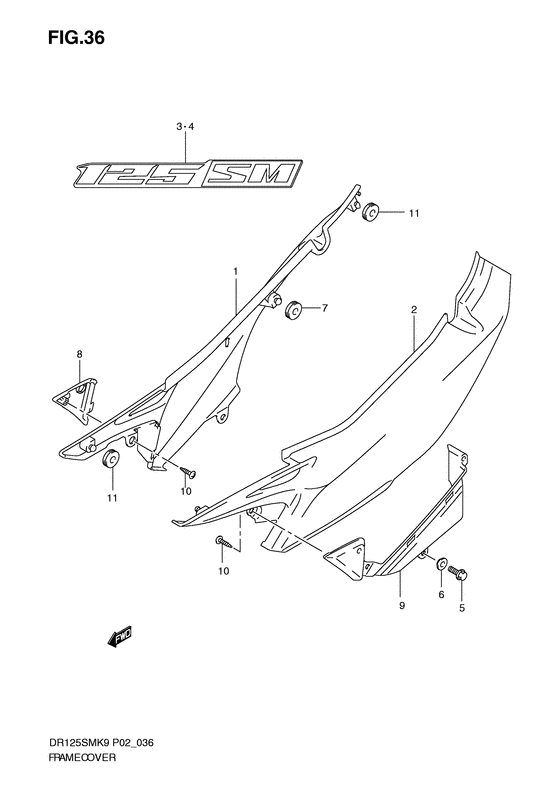

Обтекатель задний

Suzuki DR125

Обтекатель задний

Обтекатель задний

1

1

2

2

3

3

3

4

4

4

5

6

7

8

9

10

10

11

11

#

oem код

название

цена

1

47111-24H00-YLW

Cover, frame rh

Cover, frame rh

BLUE Cover, frame rh (blue); For ylw

1

47111-24H00-019

Cover, frame rh

Cover, frame rh

BLACK Cover, frame rh (black); For 019,fkh

2

47211-24H00-YLW

Cover, frame lh

Cover, frame lh

BLUE Cover, frame lh (blue); For ylw

2

47211-24H00-019

Cover, frame lh

Cover, frame lh

BLACK Cover, frame lh (black); For 019,fkh

3

68131-24H00-DBV

Emblem, rh

Emblem, rh

For fkh

3

68131-24H00-FLH

Emblem, rh

Emblem, rh

For ylw

3

68131-24H00-FLG

Emblem, rh

Emblem, rh

For 019

4

68141-24H00-DBV

Emblem, lh

Emblem, lh

For fkh

4

68141-24H00-FLH

Emblem, lh

Emblem, lh

For ylw

4

68141-24H00-FLG

Emblem, lh

Emblem, lh

For 019

5

09103-06273-000

BOLT(6X12)

BOLT(6X12)

6

09169C06031J000

Шайба

Шайба

7

09320-08018-000

Валик

Валик

Cushion, lh Cushion, center;

8

47131-24H00-291

Cover, lower rh

Cover, lower rh

BLACK Cover, lower rh (black);

9

47231-24H00-291

Cover, lower lh

Cover, lower lh

BLACK Cover, lower lh (black);

10

03541-0512B-000

Винт

Винт

11

09320-08028-000

Подушка

Подушка

Grommet

12

33652-03D10-000

Cushion (40x20x2)

Cushion (40x20x2)
