Frame comp для мотоциклов Suzuki DR125 (2010)

Москва и регионы России

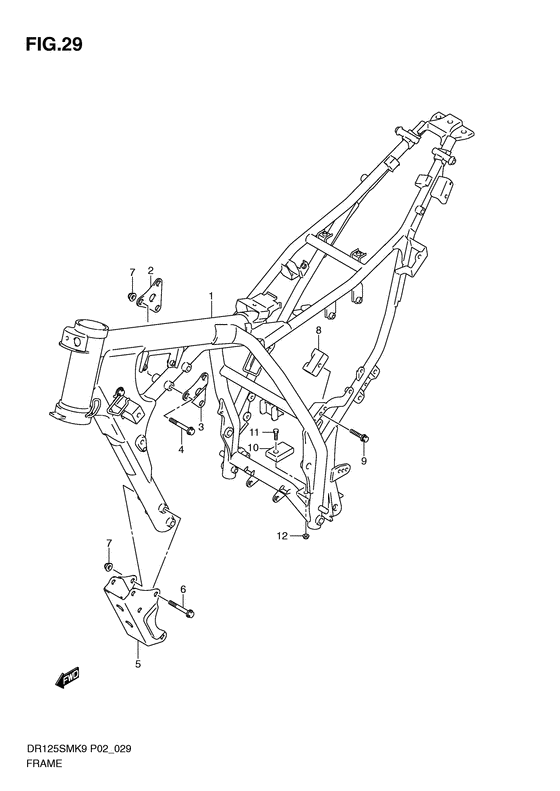

Frame comp

Suzuki DR125

Frame comp

Frame comp

1

2

3

4

5

6

7

7

8

9

10

11

12

#

oem код

название

цена

1

41100-24H00-EE3

Рама

Рама

BLACK Frame (black);

2

41991-24H00-000

Plate, mount upper rh

Plate, mount upper rh

BLACK Plate, mount upper rh (black);

3

41992-24H00-000

Plate, mount upper lh

Plate, mount upper lh

BLACK Plate, mount upper lh (black);

4

09103-08217-000

BOLT(8X60)

BOLT(8X60)

Bolt (8x60) Bolt, upper;

5

41993-24H00-EE3

Plate, mount lower

Plate, mount lower

BLACK Plate, mount lower (black);

6

09103-08293-000

BOLT(8X70)

BOLT(8X70)

Bolt, lower;

7

08319-3108A-000

Гайка

Гайка

8

43911-44A00-000

GUIDE,CH CONTROL UPR

GUIDE,CH CONTROL UPR

Guide, chain control upper Guide, chain upper;

9

01580-0635B-000

Болт

Болт

Bolt, upper;

10

43912-42A00-000

GUIDE,CH LENGTH CONTROL LWR

GUIDE,CH LENGTH CONTROL LWR

Guide, chain control Guide, chain lower;

11

09128-06006-000

BOLT(6X20)

BOLT(6X20)

Bolt, lower;

12

08319-3106B-000

Гайка

Гайка

Nut, lower;
