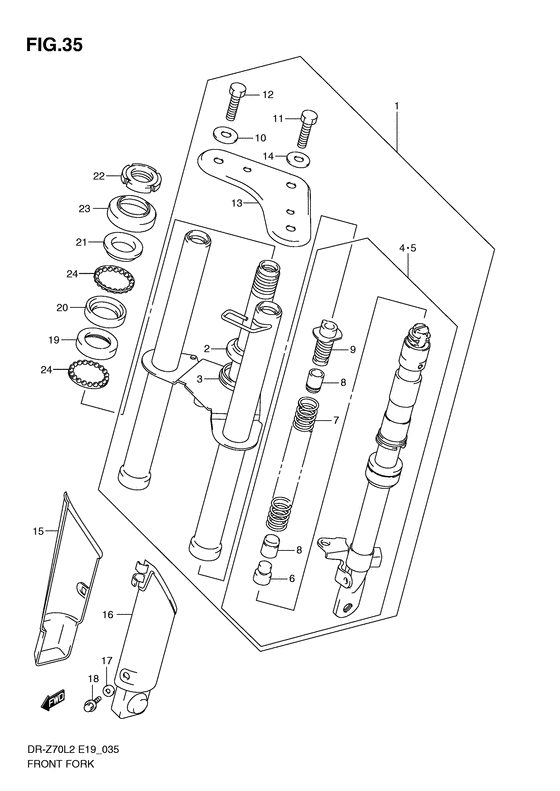

Вилка передней оси для мотоциклов Suzuki DR-Z70 (2012)

Москва и регионы России

Вилка передней оси

Suzuki DR-Z70

Вилка передней оси

Вилка передней оси

1

2

3

4

5

6

7

8

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

24

#

oem код

название

цена

1

51100-14821-000

FORK SET,FR

FORK SET,FR

2

51622-14H00-000

RACE,STEERING OUTER LWR

RACE,STEERING OUTER LWR

3

51644-14H00-000

SEAL,STEERING LWR

SEAL,STEERING LWR

4

51110-14H00-000

TUBE ASSY,FR FORK LWR,R

TUBE ASSY,FR FORK LWR,R

5

51120-14H00-000

TUBE ASSY,FR FORK LWR,L

TUBE ASSY,FR FORK LWR,L

6

51116-14H00-000

Стопор

Стопор

7

51171-14H00-000

Пружина

Пружина

8

51292-14H00-000

Стопор

Стопор

9

51422-14H00-000

SPRING,JOINT B

SPRING,JOINT B

10

09160-10144-000

WASHER(10X30X2.5)

WASHER(10X30X2.5)

Washer, fr fork upper b

11

01550-1035A-000

Болт

Болт

Bolt, fr fork upper Bolt, fr fork upper;

12

01550-1035A-000

Болт

Болт

Bolt, fr fork upper Bolt, fr fork upper;

13

51310-14H00-000

BRACKET,UPR

BRACKET,UPR

14

09160-10128-XC0

Шайба

Шайба

Washer, fr fork upper a;

15

51501-14H00-30H

PROTECTOR,FR FORK,R

PROTECTOR,FR FORK,R

замена

51501-14H00-000

Protector, front fork, r

Protector, front fork, r

16

51511-14H00-30H

PROTECTOR,FR FORK,L

PROTECTOR,FR FORK,L

замена

51511-14H00-000

Protector, front fork, l

Protector, front fork, l

17

09169-06071-000

Шайба

Шайба

Washer, rr side Washer, front fork protector;

18

01547-0612A-000

Болт

Болт

Bolt, push rod guide Bolt, front fork protector;

19

51611-14H00-000

RACE,STEERING INNER LWR

RACE,STEERING INNER LWR

20

51611-20002-000

RACE,STEERING INNER UPR

RACE,STEERING INNER UPR

Race, inner Race, steering inner;

21

51621-28000-000

RACE,STEERING OUTER UPR

RACE,STEERING OUTER UPR

Race, outer upper Race, steering outer;

22

51631-28000-000

NUT,STEERING STEM(25X44X10)

NUT,STEERING STEM(25X44X10)

Nut, stem Nut, steering stem;

23

51643-25001-000

DUST SEAL,STEERING UPR

DUST SEAL,STEERING UPR

Seal, dust Seal, steering upper;

24

09269-27001-000

BEARING(27X40.5X5)

BEARING(27X40.5X5)

Bearing, steering (27x40.5x5);
