Радиатор для мотоциклов Suzuki DR-Z400 (2005)

Москва и регионы России

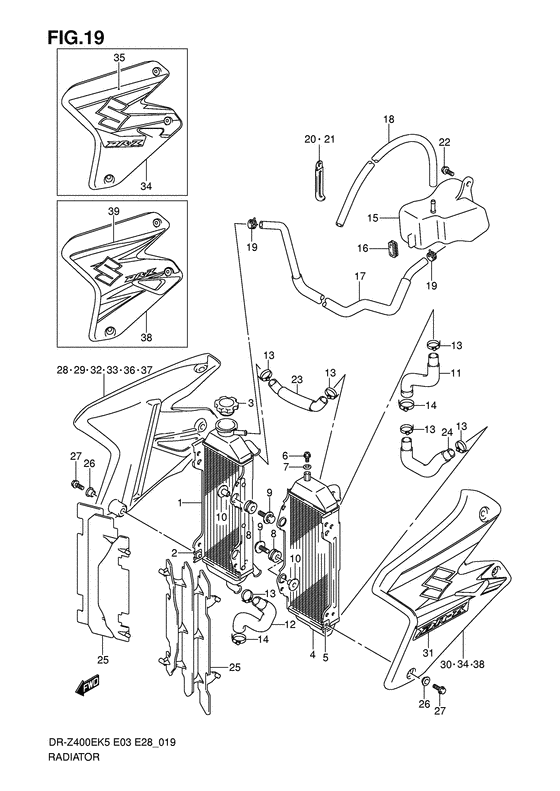

Радиатор

Suzuki DR-Z400

Радиатор

Радиатор

1

2

3

4

5

6

7

8

8

9

9

10

10

11

12

13

13

13

13

13

13

14

14

15

16

17

18

19

19

20

21

22

23

24

25

25

26

26

26

26

27

27

27

27

28

29

30

31

32

33

34

34

35

36

37

38

38

39

#

oem код

название

цена

1

17710-29F20-000

RADIATOR,WATER,R

RADIATOR,WATER,R

2

09148-06015-000

Гайка

Гайка

3

17730-12C30-000

CAP,RADIATOR

CAP,RADIATOR

Cap, radiator (1.1);

4

17720-29F20-000

RADIATOR,WATER,L

RADIATOR,WATER,L

5

09148-06015-000

Гайка

Гайка

6

17568-50F00-000

Болт крышки термостата

Болт крышки термостата

Bolt, thermostat cover Bolt, air release;

7

09168-06026-000

GASKET(6.4X11.5X0.8)

GASKET(6.4X11.5X0.8)

Gasket, air release;

8

17787-19A00-000

CUSHION,RADIATOR LWR

CUSHION,RADIATOR LWR

Cushion, lower Cushion, support;

9

09116-06147-000

Болт копрусный

Болт копрусный

Bolt, side Bolt (6x25);

10

09180-06243-000

Прокладка

Прокладка

11

17851-29F21-000

Шланг впускной

Шланг впускной

12

17852-29F20-000

Шланг выпускной

Шланг выпускной

13

09402-28511-000

Зажим

Зажим

14

09402-32511-000

Хомут

Хомут

15

17911-29F11-000

Бак резервуарный

Бак резервуарный

16

17913-29F00-000

CUSHION,RESERVOIR TANK

CUSHION,RESERVOIR TANK

17

17981-29F01-000

Шланг впускной

Шланг впускной

18

09352-50901-00B

HOSE(5X9X2000)

HOSE(5X9X2000)

Hose, reservoir tank Hose, overflow; L:2000->50

19

09401-08411-000

Зажим

Зажим

Clip;

20

09404-08205-000

CLAMP(L:45 T:0.6)

CLAMP(L:45 T:0.6)

Clamp (l:62) Clamp, reservoir hose;

21

09404-06429-000

Струбцина катушки

Струбцина катушки

Clamp, coil lead wire Clamp, reservoir inlet hose;

22

01550-0612B-000

Болт

Болт

Bolt, clamp

замена

01550-06123-000

Болт

Болт

23

17853-29F10-000

Шланг соединительный

Шланг соединительный

Hose, joint upper;

24

17854-29F20-000

HOSE,RADIATOR JOINT LWR

HOSE,RADIATOR JOINT LWR

25

17831-37E11-000

LOUVER,RADIATOR

LOUVER,RADIATOR

26

09169-06053-000

Шайба (6.3X16X1)

Шайба (6.3X16X1)

Washer; Model k6/k7

26

09169-06060-000

Шайба

Шайба

Gasket Washer; Model k5

27

09103-06273-000

BOLT(6X12)

BOLT(6X12)

Model k6/k7

27

01547-0612B-000

Болт

Болт

замена

01547-06123-000

Болт

Болт

Model k5

28

17760-29F70-YU1

COVER,RADIATOR,R(YELLOW)

COVER,RADIATOR,R(YELLOW)

Cover, radiator, rh (yellow); Model k5

29

68665-29F70-YHB

TAPE,RADIATOR COVER,R

TAPE,RADIATOR COVER,R

Tape, radiator cover, rh; Model k5

30

17770-29F70-YU1

COVER,RADIATOR,L(YELLOW)

COVER,RADIATOR,L(YELLOW)

Cover, radiator, lh (yellow); Model k5

31

68675-29F70-YHB

TAPE,RADIATOR COVER,L

TAPE,RADIATOR COVER,L

Tape, radiator cover, lh; Model k5

32

17760-29F90-YU1

COVER,RADIATOR,R(YELLOW)

COVER,RADIATOR,R(YELLOW)

Cover, radiator, rh (yellow); Model k6

33

68665-29F90-CET

TAPE,RADIATOR COVER,R

TAPE,RADIATOR COVER,R

Tape, radiator cover, rh; Model k6

34

17770-29F90-YU1

COVER,RADIATOR,L(YELLOW)

COVER,RADIATOR,L(YELLOW)

Cover, radiator, lh (yellow); Model k6

35

68675-29F90-CET

TAPE,RADIATOR COVER,L

TAPE,RADIATOR COVER,L

Tape, radiator cover, lh; Model k6

36

17760-29FA0-YU1

COVER,RADIATOR,R(YELLOW)

COVER,RADIATOR,R(YELLOW)

Cover, radiator, rh (yellow); Model k7

37

68665-29FA0-DRA

TAPE,RADIATOR COVER,R

TAPE,RADIATOR COVER,R

Tape, radiator cover, rh; Model k7

38

17770-29FA0-YU1

COVER,RADIATOR,L(YELLOW)

COVER,RADIATOR,L(YELLOW)

Cover, radiator, lh (yellow); Model k7

39

68675-29FA0-DRA

TAPE,RADIATOR COVER,L

TAPE,RADIATOR COVER,L

Tape, radiator cover, lh; Model k7
