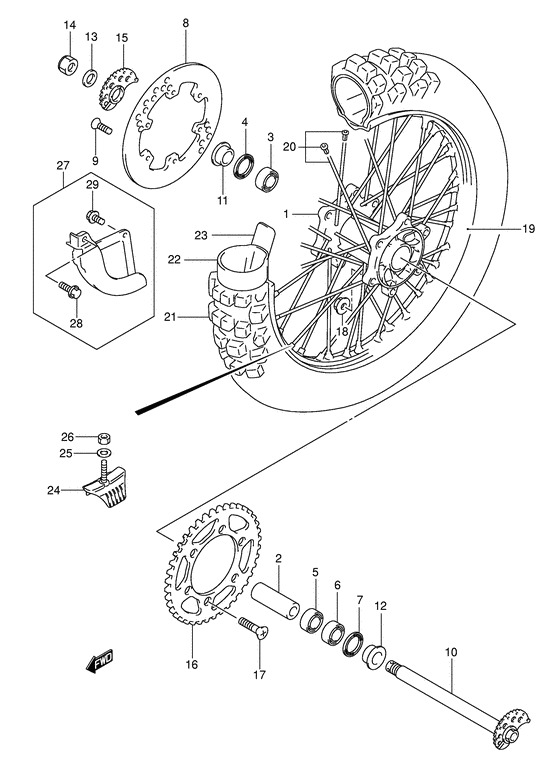

Rear wheel complete assy для мотоциклов Suzuki DR-Z400 (2007)

oem код

название

цена

64111-29F00-000

HUB,RR WHEEL

64731-29F00-000

Шайба, подшипник

08133-60047-000

Подшипник B1 20X42X12

Bearing Bearing, rh;

64841-28E00-000

SEAL(29X42X6)

Oil seal, axle shaft rh (27x42 Seal, rh (29x42x6);

08133-60047-000

Подшипник B1 20X42X12

Bearing Bearing, lh;

08123-62047-000

Подшипник

Bearing, rear hub Bearing, outer lh;

09283-29006-000

SEAL,OIL(29X47X6)

Seal, lh (29x47x5);

69211-43D00-000

DISC,RR BRAKE

09120-06014-000

Болт

Screw, disc Screw (6x17.5);

64710-29F00-000

AXLE,RR

64751-28E20-000

SPACER,RR AXLE

Spacer, rh Spacer, rh;

64751-28E20-000

SPACER,RR AXLE

Spacer, rh

09160-19022-000

Шайба

Washer (19x32x3.2)

08319-2118A-000

Гайка

61410-29F00-000

ADJUSTER,CHAIN,R

64511-29F00-000

SPROCKET,RR(NT:47-520)

Sprocket, rear (nt:47-520) Sprocket, rear (nt:47-520);

09120-08010-000

BOLT(8X30.5)

Screw Screw (8x30.5);

08319-3108A-000

Гайка

65311-29F10-000

RIM,RR WHEEL(18X2.15 AL)

Rim, rear wheel (2.15x18);

65320-29F10-000

SPOKE SET,RR WHEEL

65110-29F20-000

TIRE,RR(120/90-18 65P)

Tire, rear (120/90-18 65p) (bridgestone) Tire, rear (120/90-18 65p) (bridgestone); E24, ed07 120/90-18 65p

65110-29F00-000

TIRE,RR(110/100 18 64M)

Tire, rear (110/100-18 64m) (dunlop) Tire, rear (110/100-18 64m) (dunlop); E1,p37, d756 110/100-18 64m

65200-29E00-000

TUBE ASSY,WHEEL INNER

Tube assy, wheel inner; E24

65200-29F00-000

TUBE ASSY,WHEEL INNER

E1,p37

65261-14E00-000

PROTECTOR,WHL INR TUBE

Protector, inner tube E24

65261-44AF0-000

PROTECTOR,WHL INR TUBE

E1,p37

65270-29F00-000

STOPPER,BEAD(2.15)

08322-0108A-000

Шайба

Washer;

08310-0008A-000

Гайка

Nut, bead stopper

69200-28C00-000

COVER SET,RR BRAKE DISC

Cover set, rear disc Cover, rear disc;

01550-0620B-000

Болт

Bolt, inspection cap Bolt, front;

01550-0612B-000

Болт

Bolt, clamp Bolt, rear;
