Подножки для мотоциклов Suzuki DL650 V-Strom (2004)

Москва и регионы России

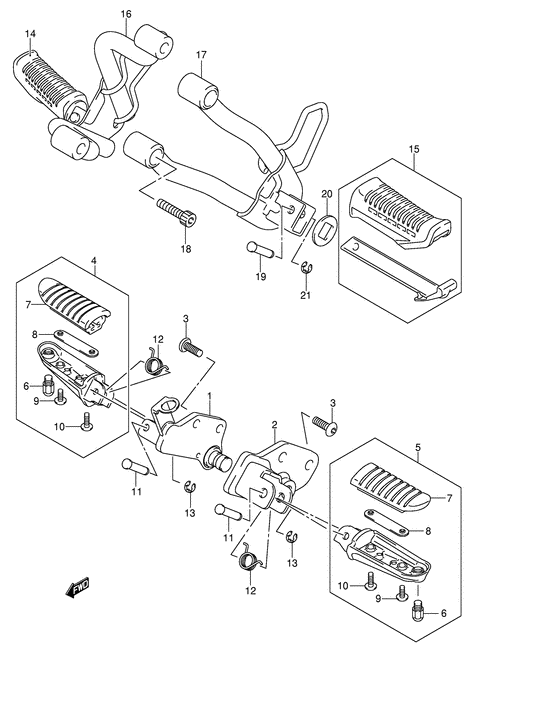

Подножки

Suzuki DL650 V-Strom

Подножки

Подножки

1

1

2

2

3

3

4

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

15

16

17

17

18

19

20

21

#

oem код

название

цена

1

43510-11J00-YAP

BRACKET,FR FOOTREST,R

BRACKET,FR FOOTREST,R

замена

43510-27G01-YAP

Bracket, front rh (black)

Bracket, front rh (black)

Bracket, front rh (black); Model k5/k6

1

43510-11J00-13L

BRACKET,FR FOOTREST,R

BRACKET,FR FOOTREST,R

замена

43510-27G00-000

Bracket, front rh

Bracket, front rh

Model k4

2

43520-11J00-YAP

BRACKET,FR FOOTREST,L

BRACKET,FR FOOTREST,L

замена

43520-27G01-YAP

Bracket, front lh (black)

Bracket, front lh (black)

Bracket, front lh (black); Model k5/k6

2

43520-11J00-13L

BRACKET,FR FOOTREST,L

BRACKET,FR FOOTREST,L

замена

43520-27G00-000

Bracket, front lh

Bracket, front lh

Model k4

3

09106-08150-000

Болт

Болт

4

43501-06G01-000

FOOTREST ASSY,PILLION,R

FOOTREST ASSY,PILLION,R

5

43502-06G01-000

FOOTREST ASSY,PILLION,L

FOOTREST ASSY,PILLION,L

6

43576-07D01-000

BOLT,BANK SENSOR

BOLT,BANK SENSOR

Bolt, bank sensor;

7

43551-06G00-000

RUBBER,FOOTREST

RUBBER,FOOTREST

8

43552-06G00-000

PLATE,FR FOOTREST RUBBER

PLATE,FR FOOTREST RUBBER

9

02142-0516B-000

Болт

Болт

замена

02142-05163-000

Болт

Болт

Screw Screw, outer;

10

02142-0520B-000

Винт

Винт

Screw, rear

замена

02142-05203-000

Болт

Болт

Screw, rear Screw, inner;

11

09208-08010-000

PIN(8X33.2)

PIN(8X33.2)

12

09448-18022-000

Пружина

Пружина

13

08332-1106B-000

E RING

E RING

Circlip

замена

08332-11063-000

E ring

E ring

E ring;

14

43600-12B00-000

FOOTREST ASSY,PILLION,R

FOOTREST ASSY,PILLION,R

15

43700-12B00-000

FOOTREST ASSY,PILLION,L

FOOTREST ASSY,PILLION,L

замена

43810-27G01-YAP

Bracket, pillion rh (black)

Bracket, pillion rh (black)

Bracket, pillion rh (black); Model k5

16

43810-27G01-019

BRACKET,PILLION FOOTREST,R(BLA

BRACKET,PILLION FOOTREST,R(BLA

замена

43810-27G00-000

Bracket, pillion rh

Bracket, pillion rh

Model k4

17

43820-27G01-YAP

BRACKET,PILLION FOOTREST,L(BLA

BRACKET,PILLION FOOTREST,L(BLA

Bracket, pillion lh (black); Model k5

17

43820-27G01-019

BRACKET,PILLION FOOTREST,L(BLA

BRACKET,PILLION FOOTREST,L(BLA

замена

43820-27G00-000

Bracket, pillion lh

Bracket, pillion lh

Model k4

18

09106-08074-000

BOLT(8X40)

BOLT(8X40)

Bolt, bracket Bolt, bracket;

19

09208-06005-000

Штифт

Штифт

20

43631-34A01-000

WASHER,FOOTREST RUBBER

WASHER,FOOTREST RUBBER

Plate, footrest lh

21

08332-1104B-000

E RING

E RING

замена

08332-11043-000

E ring

E ring
