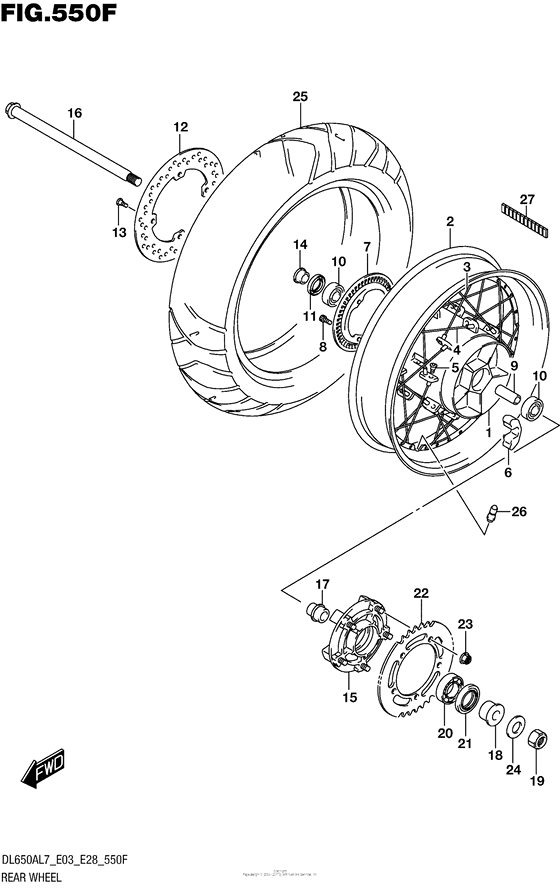

Rear Wheel (Dl650Xal7 E33)

Suzuki DL650 (ABS) V-Strom

Suzuki
Rear Wheel (Dl650Xal7 E33)
#oem кодцена
1
64111-11J00-000
HUB,RR
2-2
65311-11J10-000
RIM,RR WHEEL(17M/CXMT4.00)
2-1
65311-11J00-000
RIM,RR WHEEL(17M/CXMT4.00)
3
65321-11J00-000
SPOKE,REAR WHEEL INNER
4
65322-11J00-000
SPOKE,REAR WHEEL OUTER
5
55326-11J00-000
NIPPLE,WHEEL
6
64651-35F10-000
ABSORBER,RR HUB SHOCK
7
54162-28K00-000
RING,SPEED SENSOR(50T)
8
07130-0512A-000
Болт
9
09180-20112-000
SPACER(20.8X27.2X124)
10
08123-62047-000
Подшипник
11
09285-28001-000
SEAL,OIL(28X47X7)
12
69211-06G10-000
DISC,RR BRAKE
13
09106-08160-000
BOLT(8X21)
14
64741-10F00-000
SPACER,RR AXLE,R
15
64610-35F40-000
DRUM,RR SPROCKET
16
64711-03F00-000
AXLE,RR
17
64733-06G00-000
RETAINER,RR SPROCKET DRUM
18
64751-27G00-000
SPACER,RR AXLE,L
19
09159-18007-000
Гайка
20
09262-32022-000
BEARING(32X65X17)
21
09285-39001-000
Валик
22
64511-27G00-000
SPROCKET,RR(47T-525)
23
08319-3110A-000
Гайка
24
09160-19025-000
Шайба
25
65110-28K00-000
TIRE COMP,REAR
26
43130-24A00-000
VALVE ASSY,WHEEL RIM(TR412)
27
55411-11J00-000
WEIGHT,WHEEL BALANCE(5GRAM)
