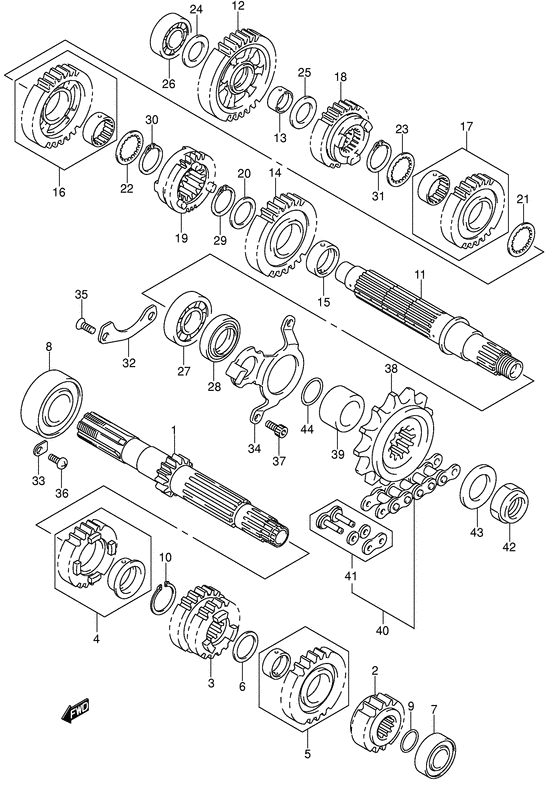

Трансмиссия

Suzuki DL1000 V-Strom

Трансмиссия

Трансмиссия

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

#

oem код

название

цена

1

24120-06G00-000

SHAFT,COUNTER

SHAFT,COUNTER

Shaft, counter (nt:12);

2

24221-02F01-000

GEAR,2ND DRIVE(NT:15)

GEAR,2ND DRIVE(NT:15)

Gear, 2nd drive (nt:15);

3

24231-02F13-000

GEAR,3RD & 4TH DRIVE(NT:18/27)

GEAR,3RD & 4TH DRIVE(NT:18/27)

Nt:18/27

4

24251-02811-000

Gear set, 5th drive (nt:23)

Gear set, 5th drive (nt:23)

Gear set, 5th drive (nt:23);

5

24261-02821-000

GEAR SET,6TH DRIVE(NT:23)

GEAR SET,6TH DRIVE(NT:23)

замена

24261-02820-000

Gear set, 6th drive (nt:23)

Gear set, 6th drive (nt:23)

Gear set, 6th drive (nt:23);

6

09181-22167-000

SHIM(22X30X1)

SHIM(22X30X1)

Washer (22x30x1.0) Washer, 6th drive; 22x30x1.0

7

09262-20139-000

Подшипник

Подшипник

Bearing, sub t/m counter, r Bearing, center shaft lh; 20x47x14

8

09262-25073-000

BEARING(25X62X17)

BEARING(25X62X17)

Bearing (25x62x17) Bearing, center shaft rh; 25x62x17

9

09280-17004-000

O RING(D:1.9,ID:16.6)

O RING(D:1.9,ID:16.6)

O ring (d:1.9,id:16.6) O ring, center shaft; D:1.9,id:16.6

10

09380-27001-000

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip, idle driven gear Circlip, 5th drive;

11

24130-02F10-000

Вал ведущий

Вал ведущий

12

24311-06G00-000

GEAR,1ST DRIVEN

GEAR,1ST DRIVEN

Gear, 1st driven (nt:36);

13

24312-02F00-000

Втулка

Втулка

Bush, 1st driven gr Bush, 1st driven;

14

24321-02F11-000

GEAR,2ND DRIVEN(NT:29)

GEAR,2ND DRIVEN(NT:29)

Gear, 2nd driven (nt:29);

15

24322-02F01-000

BUSH,2ND DRIVEN GEAR

BUSH,2ND DRIVEN GEAR

Bush, 2nd driven Bush, 2nd driven;

16

24331-02811-000

Gear set, 3rd driven (nt:27)

Gear set, 3rd driven (nt:27)

Gear set, 3rd driven (nt:27);

17

24341-02811-000

GEAR SET,4TH DRIVEN(NT:27)

GEAR SET,4TH DRIVEN(NT:27)

Gear set, 4th driven (nt:27);

18

24351-02F13-000

GEAR,5TH DRIVEN(NT:25)

GEAR,5TH DRIVEN(NT:25)

Gear, 5th driven (nt:25);

19

24361-06G00-000

GEAR,6TH DRIVEN(NT:21)

GEAR,6TH DRIVEN(NT:21)

Gear, 6th driven (nt:21);

20

09160-27008-000

Шайба

Шайба

Washer (27x36x1) Washer, 2nd driven gear; 27x36x1

21

09167-27002-000

WASHER,LOCK

WASHER,LOCK

Washer, 3rd & 4th driven; 27x36x2

22

24333-02F00-000

WASHER,3RD & 4TH DRIVEN

WASHER,3RD & 4TH DRIVEN

Washer, 3rd driven Washer, 3rd driven;

23

24333-02F00-000

WASHER,3RD & 4TH DRIVEN

WASHER,3RD & 4TH DRIVEN

Washer, 3rd driven Washer, 4th driven;

24

09181-20251-000

Шайба (T:1.0)

Шайба (T:1.0)

Shim (t:1.0) Washer, 1st driven rh; 20x34x1

25

09181-22223-000

SHIM(22X34X1)

SHIM(22X34X1)

Washer, 1st driven lh; 22x34x1

26

09262-20082-000

BEARING(20X52X15)

BEARING(20X52X15)

Bearing, drive shaft rh; 20x52x15

27

09262-28040-000

BEARING(28X68X20)

BEARING(28X68X20)

Bearing, drive shaft lh; 28x68x20

28

09283-38020-000

SEAL,OIL(38X52X8)

SEAL,OIL(38X52X8)

Seal, drive shaft; 38x52x8

29

09380-27001-000

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip, idle driven gear Circlip, 2nd driven;

30

09380-27001-000

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip, idle driven gear Circlip, 3rd driven;

31

09380-27001-000

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip, idle driven gear Circlip, 4th driven;

32

24741-06G00-000

RETAINER,DRIVE SHAFT BEARING

RETAINER,DRIVE SHAFT BEARING

33

24741-21A00-000

Седло

Седло

Retainer, center shaft;

34

24751-06G00-000

RETAINER,DRIVE SHAFT OIL SEAL

RETAINER,DRIVE SHAFT OIL SEAL

35

09126-06011-000

SCREW(6X12)

SCREW(6X12)

Screw, retainer mdl Screw, drive shaft (6x12);

36

02112-0612B-000

Болт

Болт

Screw, oil guide plate

замена

02112-06123-000

Винт

Винт

Screw, center shaft;

37

07130-0612A-000

Болт

Болт

замена

07130-06123-000

Болт

Болт

Bolt, oil guide plate lh Bolt, drive shaft oil;

38

27510-20A20-000

SPROCKET,ENGINE(17T)

SPROCKET,ENGINE(17T)

Sprocket, engine (nt:17);

39

27531-24B13-000

SPACER,ENGINE SPROCKET

SPACER,ENGINE SPROCKET

Spacer, sprocket;

40

27600-06G40-112

CHAIN,DRIVE(RK525SMOZ8)

CHAIN,DRIVE(RK525SMOZ8)

замена

27600-06G00-112

Цепь масляного насоса

Цепь масляного насоса

Chain assy (rk525smoz7) Chain assy (rk525smoz7);

41

27620-06G00-000

JOINT SET

JOINT SET

Joint set, chain; Opt

42

09159-20004-000

Гайка

Гайка

43

09160-25009-000

WASHER(25X41X3)

WASHER(25X41X3)

Washer (25x41x3) Washer (25x41x3);

44

09280-24010-000

O RING(D:2.4,ID:23.7)

O RING(D:2.4,ID:23.7)

O ring, collar output O ring (d:2.4,id:23.7);
