Frame comp для мотоциклов Suzuki DL1000 V-Strom (2010)

Москва и регионы России

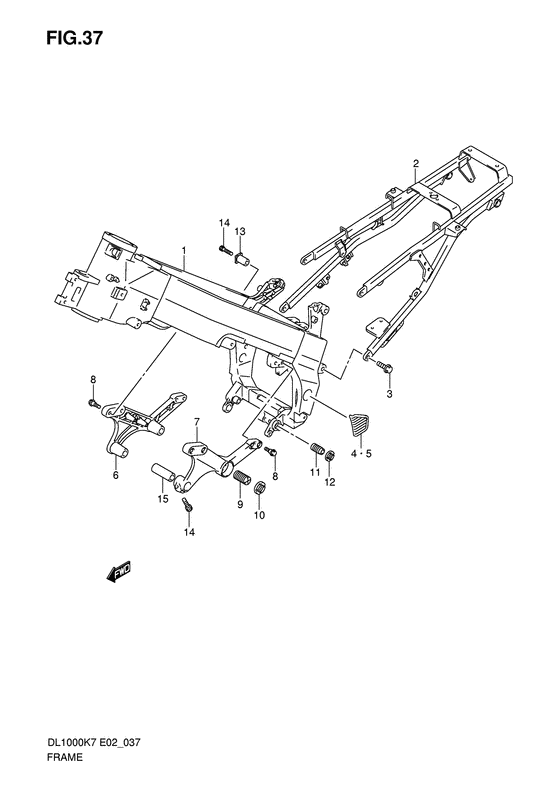

Frame comp

Suzuki DL1000 V-Strom

Frame comp

Frame comp

1

2

3

4

5

6

7

8

8

9

10

11

12

13

14

14

15

#

oem код

название

цена

1

41100-06G01-YAP

FRAME(BLACK)

FRAME(BLACK)

Frame (black);

2

41200-06G00-000

RAIL,SEAT

RAIL,SEAT

3

09103-10379-000

BOLT(10X30)

BOLT(10X30)

4

43585-27G00-000

COVER,PIVOT,R

COVER,PIVOT,R

Cover, pivot rh

5

43595-27G00-000

COVER,PIVOT,L

COVER,PIVOT,L

Cover, pivot lh

6

41911-06G20-YAP

BRACKET,ENGINE MOUNTING,R

BRACKET,ENGINE MOUNTING,R

Bracket, mount rh (black);

7

41912-06G20-YAP

BRACKET,ENGINE MOUNTING,L

BRACKET,ENGINE MOUNTING,L

Bracket, mount lh (black);

8

09106-08175-000

BOLT(8X30)

BOLT(8X30)

9

41923-16G00-000

BOLT,CRANK CASE ADJUST CTR

BOLT,CRANK CASE ADJUST CTR

Bolt, adjuster center

10

41922-19F20-000

NUT,CRANK CASE ADJUST CTR

NUT,CRANK CASE ADJUST CTR

замена

41922-19F00-000

Nut, crankcase adjust

Nut, crankcase adjust

Nut, adjuster center

11

41921-16G00-000

BOLT,CASE LWR & RR HEAD ADJ

BOLT,CASE LWR & RR HEAD ADJ

Bolt, adjuster lower

12

41922-33E00-000

NUT,CRANK CASE ADJUST BOLT

NUT,CRANK CASE ADJUST BOLT

Nut, adjuster lower

13

41941-19F01-000

SPACER,MOUNTING RR UPR,R

SPACER,MOUNTING RR UPR,R

Spacer, adjuster upper

14

09106-08170-000

Болт

Болт

замена

09106-08149-000

Болт

Болт

15

41198-02F00-000

SPACER,ENG HEAD MTG FR,L

SPACER,ENG HEAD MTG FR,L

Spacer, head front lh Spacer, head front lh;
