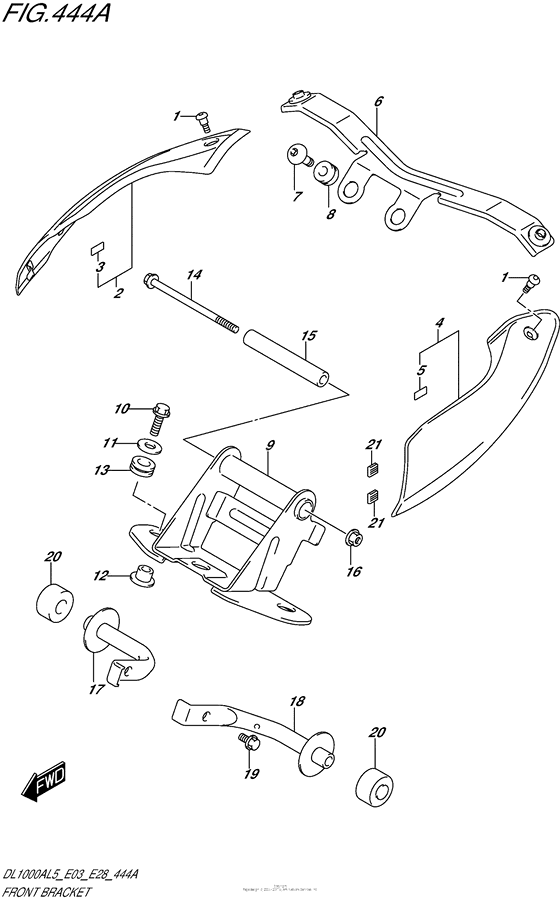

Front Bracket

Suzuki DL1000 (ABS) V-Strom

Suzuki
Front Bracket
#oem кодцена
1
09139-06197-000
SCREW(6X16)
2
94420-31J01-000
COVER,SIDE REAR,R
3
94633-31J00-000
CUSHION,COVER SIDE
4
94430-31J01-000
COVER,SIDE REAR,L
5
94633-31J00-000
CUSHION,COVER SIDE
6
44160-31J00-000
BRACKET,FRONT COVER
7
09139-06190-000
BOLT(6X20)
8
44164-31J00-000
CUSHION,FUEL TANK COVER BRKT
9
44520-31J00-000
BRACKET,FUEL TANK FRONT
10
09139-06192-000
SCREW(6X25)
11
09160-06054-000
Шайба
12
44512-16G00-000
Кольцо/шайба
13
44511-16G00-000
CUSHION,FUEL TANK FR
14
01550-0695B-000
Болт
15
44561-35F00-000
Прокладка
16
08319-3106B-000
Гайка
17
44560-31J00-000
BRACKET,FRONT SIDE
18
44560-31J00-000
BRACKET,FRONT SIDE
19
01550-0612B-000
Болт
20
44543-31J00-000
CUSHION,FRONT SIDE BRKT
21
14795-10FA0-000
Уплотнитель резиновый
