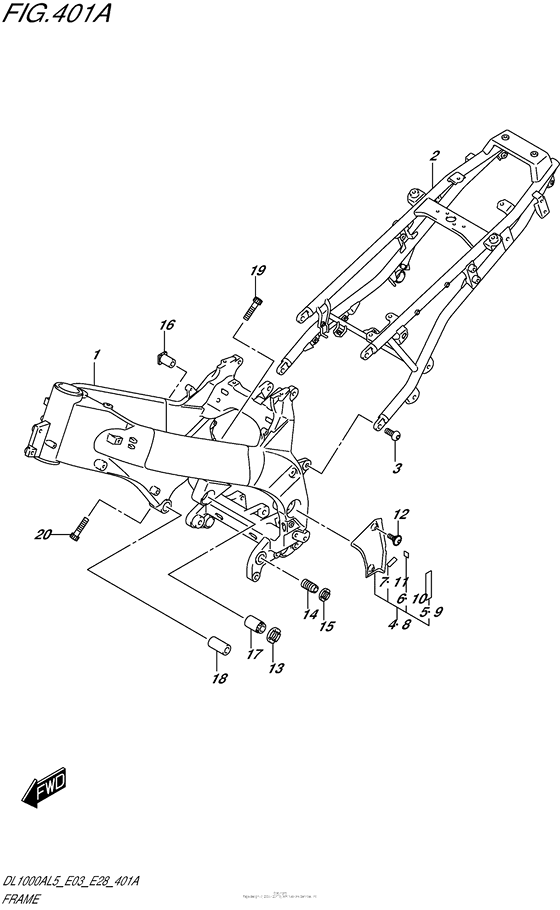

Рама

Suzuki DL1000 (ABS) V-Strom

Suzuki
Рама
#oem кодцена
1
41100-31J01-YAP
FRAME COMP
замена
41100-31J00-YAP
FRAME(BLACK)
2
41200-31J11-YD8
RAIL COMP,SEAT
замена
41200-31J00-YD8
RAIL,SEAT(SILVER)
3
09139-10003-000
BOLT(10X25)
4
43580-31J00-000
COVER,PIVOT,R
5
33652-07D00-000
PROTECTOR(80X80X2)
6
63115-37H00-000
CUSHION,RR COVER NO.2
7
94429-21E00-000
CUSHION,PIVOT COVER NO.2
8
43590-31J00-000
COVER,PIVOT,L
9
33652-07D00-000
PROTECTOR(80X80X2)
10
63115-37H00-000
CUSHION,RR COVER NO.2
11
94429-21E00-000
CUSHION,PIVOT COVER NO.2
12
09139-05074-000
Болт №1
13
41922-19F20-000
NUT,CRANK CASE ADJUST CTR
14
41921-16G00-000
BOLT,CASE LWR & RR HEAD ADJ
15
41922-33E20-000
NUT,CRANK CASE ADJUST LWR
16
41941-19F01-000
SPACER,MOUNTING RR UPR,R
17
41921-47H00-000
BOLT,CRANK CASE ADJUST
18
41942-02F00-000
SPACER,ENG HEAD MTG RR,L
19
07130-0840B-000
Болт
20
07130-0840B-000
Болт
