Front leg shield для мотоциклов Suzuki CP50 Shoot (1985)

Москва и регионы России

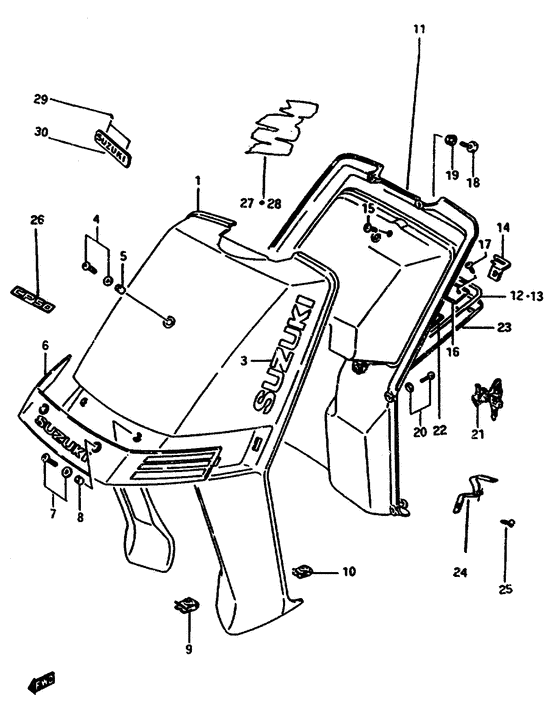

Front leg shield

Suzuki CP50 Shoot

Front leg shield

Front leg shield

#

oem код

название

цена

1

48111-02E00-NE1

Shield, front leg

Shield, front leg

P04 a

1

48111-02E00-BE1

Shield, front leg

Shield, front leg

P04 a

1

48111-03A10-NE1

Shield, front leg

Shield, front leg

A

1

48111-03A10-BE1

Shield, front leg

Shield, front leg

A

1

48111-03A10-58P

Shield, front leg

Shield, front leg

A

1

48111-03A10-07P

Shield, front leg

Shield, front leg

A

1

48111-03A10-019

Shield, front leg

Shield, front leg

A

1

48111-03A10-04Y

Shield, front leg

Shield, front leg

Protection, (bleu) Shield, front leg; A

1

48111-03A10-22R

Shield, front leg

Shield, front leg

Protection, (blanc) Shield, front leg; A

1

48111-03A10-00J

Shield, front leg

Shield, front leg

Protection, (rouge) Shield, front leg; A

3

68271-02E00-05F

Emblem (suzuki)

Emblem (suzuki)

Emblem, leg shield Emblem (suzuki); For 22r,019,58p a

3

68271-04A10-22R

Эмблема

Эмблема

замена

68271-04A00-16D

Emblem (suzuki)

Emblem (suzuki)

Embleme (blanc) Emblem (suzuki); For 00j,04y,07p a

4

09136-06081-000

Болт

Болт

5

09180-06310-000

SPACER(6.5X10X10)

SPACER(6.5X10X10)

Spacer (6.8x10x10)

замена

09180-06030-000

Прокладка катушки зажигания

Прокладка катушки зажигания

A

6

48137-03A10-000

Cover, front grille

Cover, front grille

Couvercle Cover, front grille; A

7

09136-06082-000

Болт

Болт

Vis, bas

8

09180-06060-E0Z

Кольцо/шайба

Кольцо/шайба

A

9

09148-04015-000

Гайка

Гайка

замена

09148-04019-000

Gsxgf nut lugga

Gsxgf nut lugga

Nut, inner;

10

09148-05017-000

Гайка

Гайка

Ecrou Nut, outer;

11

92111-03A10-000

Box, front

Box, front

Boitier Box, front; A

12

92114-03A00-000

Соединение

Соединение

Joint Molding, no.1; A

13

92119-03A00-000

Соединение

Соединение

Joint Molding, no.2; A

14

92116-03A00-000

Plate, front box

Plate, front box

Plaque, boitier Plate, front box; A

15

02142-0612A-000

Винт

Винт

15

02142-0612B-000

Винт

Винт

замена

02142-06126-000

Screw, front fender rear

Screw, front fender rear

A

16

92116-03A10-000

Reinforcement, front box lid

Reinforcement, front box lid

Renforcement A

17

03241-0408A-000

Болт

Болт

замена

03241-04085-000

Болт

Болт

Vis

18

01500-06167-000

Болт

Болт

Bolt, fuel cooler

замена

01107-06167-000

Болт

Болт

19

09169-06071-000

Шайба

Шайба

Washer, rr side

замена

09169-06034-000

Шайба

Шайба

A

20

03511-0516A-000

Винт

Винт

замена

03511-05165-000

Болт

Болт

21

92101-03820-000

LOCK SET,FR BOX

LOCK SET,FR BOX

замена

92130-03A01-KEY

Lock assy, front box

Lock assy, front box

22

92116-03A20-000

Reinforcement, lid lower

Reinforcement, lid lower

A

23

92112-03A10-000

Lid, front box

Lid, front box

Couvercle Lid, front box; A

24

92113-03A00-000

Hinge, front box lid

Hinge, front box lid

Attache Hinge, front box lid; A

25

03541-06108-000

Screw, front box hinge

Screw, front box hinge

Vis

26

68273-01E20-019

Emblem, cp-50

Emblem, cp-50

For ne1 a

26

68273-01E20-E10

Emblem, cp-50

Emblem, cp-50

For be1 a

27

68272-01E10-019

Emblem, shield side lh

Emblem, shield side lh

For ne1 a

27

68272-01E10-E10

Emblem, shield side lh

Emblem, shield side lh

For be1 a

28

68271-01E10-019

Emblem, shield side rh

Emblem, shield side rh

For ne1 a

28

68271-01E10-E10

Emblem, shield side rh

Emblem, shield side rh

For be1 a

29

09148-04010-000

Гайка 4MM

Гайка 4MM

Ecrou Nut; P04 a

30

68231-08E00-000

Anagram, suzuki

Anagram, suzuki

P04 a
