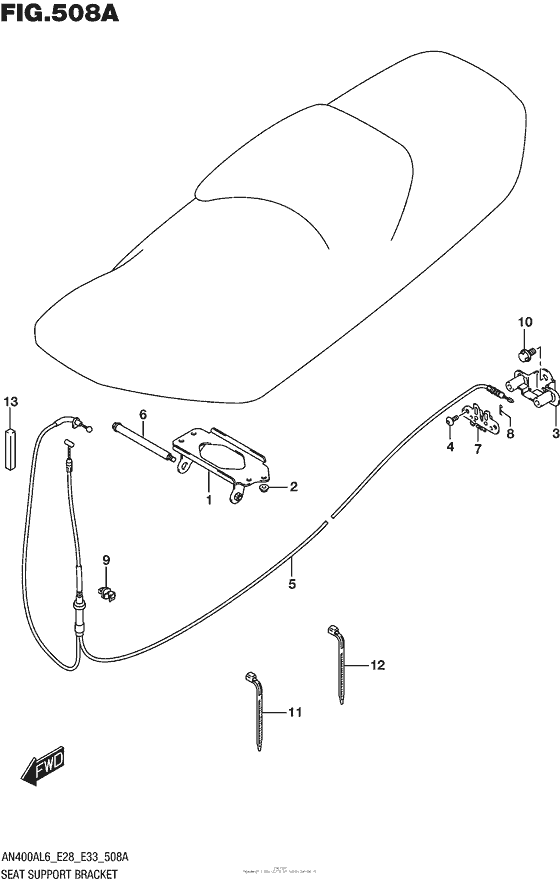

Seat Support Bracket

Suzuki AN400 (ABS) Burgman (European analogue of "SkyWave")

Suzuki
Seat Support Bracket
#oem кодцена
1
45240-05H01-000
BRACKET,SEAT HINGE
2
08316-1006A-000
Гайка
3
45220-05H00-000
BRACKET,SEAT SUPPORT
4
09139-06139-000
SCREW(6X16)
5
45280-05H02-000
CABLE,SEAT LOCK
6
45215-05H00-000
BOLT,SEAT HINGE BRKT
7
45700-14FD2-000
LOCK ASSY,SEAT STRIKER
8
09385-05004-000
PIN,SNAP
9
09403-07331-000
Хомут
10
01550-1016A-000
Болт
11
09407-19401-000
Хомут
12
09407-14403-000
CLAMP(L:125)
13
45289-05H00-000
CUSHION,STEERING LOCK
