Front leg shield для мотоциклов Suzuki AN400 Burgman (European analogue of "SkyWave") (2002)

Москва и регионы России

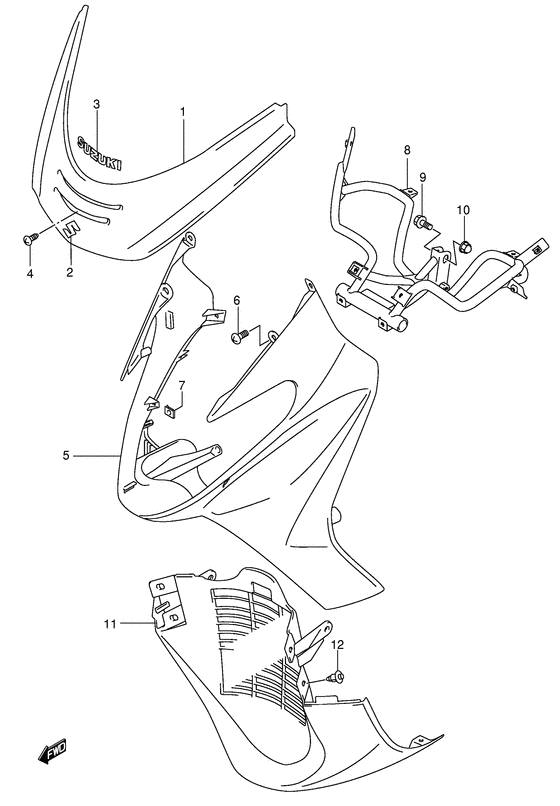

Front leg shield

Suzuki AN400 Burgman (European analogue of "SkyWave")

Front leg shield

Front leg shield

1

2

3

4

5

5

5

5

5

6

7

8

9

10

10

11

11

11

11

11

12

#

oem код

название

цена

1

48130-14F10-35W

COVER,FR LEG SHIELD(GRAY)

COVER,FR LEG SHIELD(GRAY)

Cover, front leg shield (gray);

2

68641-14F20-000

EMBLEM,S

EMBLEM,S

Emblem, "s" Emblem "s";

3

68641-14F30-L6Y

Эмблема

Эмблема

4

02142-0512A-000

Болт

Болт

Screw, lower

замена

02142-05123-000

Винт 5X12

Винт 5X12

Screw;

5

48111-14F00-YE2

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (maroon);

5

48111-14F00-YE1

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (gray);

5

48111-14F00-YD8

Обтекатель передний (silver)

Обтекатель передний (silver)

Shield, leg front (silver);

5

48111-14F00-YC7

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (gold);

5

48111-14F00-000

SHIELD,LEG FR(NON PAINT)

SHIELD,LEG FR(NON PAINT)

замена

48111-14F00-Y7L

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (black);

6

09136-06056-000

Винт (6X16)

Винт (6X16)

Screw (6x16);

7

09148-05038-000

Гайка

Гайка

Nut, inner

8

48150-14FB0-000

BRACE,LEG SHIELD

BRACE,LEG SHIELD

замена

48150-14F00-000

Brace, leg shield

Brace, leg shield

9

01570-0835A-000

Болт

Болт

замена

01570-08353-000

Болт

Болт

10

08313-2008A-000

Гайка

Гайка

10

08313-2008B-000

Гайка

Гайка

замена

08313-20083-000

Гайка

Гайка

11

48137-14F00-YE2

SHIELD,LEG LWR

SHIELD,LEG LWR

Shield, leg lower (maroon);

11

48137-14F00-YE1

SHIELD,LEG LWR

SHIELD,LEG LWR

Hield, leg lower (gray);

11

48137-14F00-YD8

SHIELD,LEG LWR

SHIELD,LEG LWR

Shield, leg lower (silver);

11

48137-14F00-000

SHIELD,LEG LWR(NON PAINT)

SHIELD,LEG LWR(NON PAINT)

замена

48137-14F00-YC7

Shield, leg lower (gold)

Shield, leg lower (gold)

Shield, leg lower (gold);

11

48137-14F00-Y7L

SHIELD,LEG LWR

SHIELD,LEG LWR

Shield, leg lower (black);

12

09409-08308-5ES

CLIP(BLACK)

CLIP(BLACK)

Cap, remocon shaft hole Clip (black);
