Front combination lamp для мотоциклов Suzuki AN400 Burgman (European analogue of "SkyWave") (2011)

Москва и регионы России

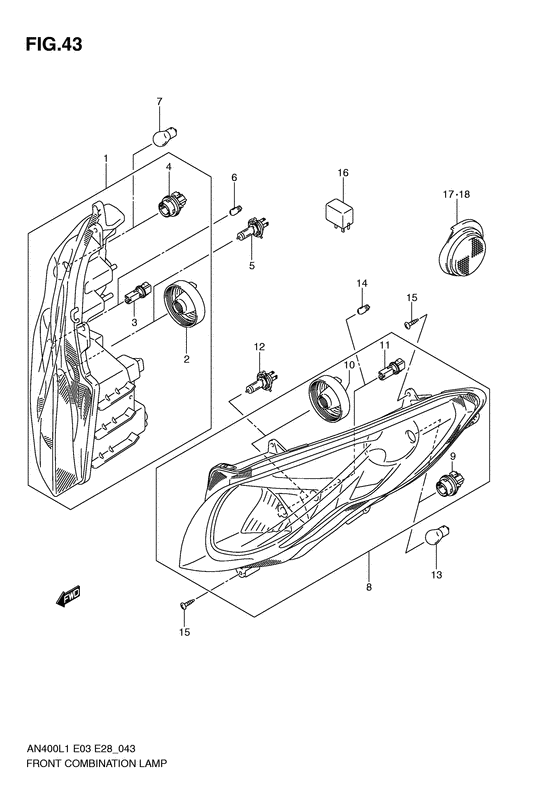

Front combination lamp

Suzuki AN400 Burgman (European analogue of "SkyWave")

Front combination lamp

Front combination lamp

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15

16

17

18

#

oem код

название

цена

1

35100-05H60-999

LAMP ASSY,FR COMBINATION,R

LAMP ASSY,FR COMBINATION,R

Lamp assy, front comb, rh;

2

35179-64G00-000

Вкладыш

Вкладыш

Socket, cover;

3

35118-76F00-000

SOCKET,POSITION LAMP

SOCKET,POSITION LAMP

Socket, position; For position

4

36118-60G00-000

Патрон

Патрон

For turn

5

09471-12182-000

BULB(12V60/55W,H4)

BULB(12V60/55W,H4)

Bulb (12v60/55w);

6

09471-12216-000

BULB(12V5W)

BULB(12V5W)

Bulb (12v5w) Bulb (12v5w); For position

7

09471-12152-000

BULB(12V27/8W)

BULB(12V27/8W)

Bulb (12v27/8w); For turn

8

35300-05H60-999

LAMP ASSY,FR COMBINATION,L

LAMP ASSY,FR COMBINATION,L

Lamp assy, front comb, lh;

9

36118-60G00-000

Патрон

Патрон

For turn

10

35179-64G00-000

Вкладыш

Вкладыш

Socket, cover;

11

35118-76F00-000

SOCKET,POSITION LAMP

SOCKET,POSITION LAMP

Socket, position; For position

12

09471-12182-000

BULB(12V60/55W,H4)

BULB(12V60/55W,H4)

Bulb (12v60/55w);

13

09471-12152-000

BULB(12V27/8W)

BULB(12V27/8W)

Bulb (12v27/8w); For turn

14

09471-12216-000

BULB(12V5W)

BULB(12V5W)

Bulb (12v5w) Bulb (12v5w); For position

15

03541-0516A-000

Болт

Болт

16

38610-05H00-000

RELAY ASSY,TURNSIGNAL

RELAY ASSY,TURNSIGNAL

17

35951-05H00-000

REFLEX REFLECTOR,FR SIDE,R

REFLEX REFLECTOR,FR SIDE,R

Reflex reflector, fr rh;

18

35952-05H00-000

REFLEX REFLECTOR,FR SIDE,L

REFLEX REFLECTOR,FR SIDE,L

Reflex reflector, fr lh;
