Щиток облицовочный для мотоциклов Suzuki AJ50 Sepia (1995)

Москва и регионы России

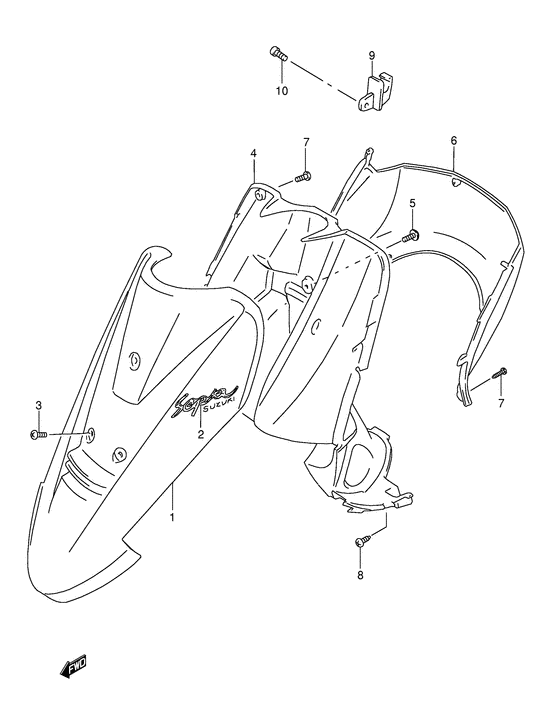

Щиток облицовочный

Suzuki AJ50 Sepia

Щиток облицовочный

Щиток облицовочный

1

1

1

1

2

2

2

2

3

4

4

4

5

6

6

6

7

7

8

9

9

9

10

#

oem код

название

цена

1

48111-25E00-1ZW

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (blue); Model t

1

48111-25E00-000

SHIELD,LEG FR(NON PAINT)

SHIELD,LEG FR(NON PAINT)

замена

48111-25E00-Y98

Shield, leg front (green)

Shield, leg front (green)

Shield, leg front (green); Model t

1

48111-25E00-20F

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (maroon);

1

48111-25E00-1WE

SHIELD,LEG FR

SHIELD,LEG FR

Shield, leg front (lavender); Model s

2

68641-25E40-E2E

EMBLEM,LEG SHIELD

EMBLEM,LEG SHIELD

Model s for y98,1zw

2

68641-25E40-E2F

EMBLEM,LEG SHIELD

EMBLEM,LEG SHIELD

Model s for 20f

2

68641-25E40-AP8

Emblem, leg shield

Emblem, leg shield

Model s for 20f

2

68641-25E40-AP6

EMBLEM,LEG SHIELD

EMBLEM,LEG SHIELD

Model s for 1we

3

09139-06083-000

SCREW(6X16)

SCREW(6X16)

Screw, front center

4

92111-25E11-19U

COVER,LEG SHIELD(GRAY)

COVER,LEG SHIELD(GRAY)

замена

92111-25E10-19U

Cover, leg shield (gray)

Cover, leg shield (gray)

Cover, leg shield (gray); Mdoel t

4

92111-25E11-0LS

COVER,LEG SHIELD(CHARCOAL)

COVER,LEG SHIELD(CHARCOAL)

замена

92111-25E10-0LS

Cover, leg shield (charcoal)

Cover, leg shield (charcoal)

Cover, leg shield (charcoal); Model s for 20f

4

92111-25E11-26B

COVER,LEG SHIELD(GRAY)

COVER,LEG SHIELD(GRAY)

замена

92111-25E10-26B

Cover, leg shield (gray)

Cover, leg shield (gray)

Cover, leg shield (gray); Model s for 1we

5

02142-0616A-000

Болт

Болт

замена

02142-06163-000

Болт

Болт

Screw;

6

92160-25E00-19U

Lack, leg shield (gray)

Lack, leg shield (gray)

Lack, leg shield (gray); Model t

6

92160-25E00-0LS

RACK,LEG SHIELD

RACK,LEG SHIELD

Lack, leg shield (charcoal); Model s for 20f

6

92160-25E00-26B

Lack, leg shield (gray)

Lack, leg shield (gray)

Lack, leg shield (gray); Model s for 1we

7

03541-0416A-000

Болт

Болт

Screw, trunk box lamp

замена

03541-04163-000

Болт

Болт

Screw;

8

03241-0516A-000

Винт

Винт

замена

03241-05163-000

Screw, bracket

Screw, bracket

9

92171-25E00-19U

HOOK,LEG SHIELD

HOOK,LEG SHIELD

Hook, leg shield (gray); Model t

9

92171-25E00-291

HOOK,LEG SHIELD

HOOK,LEG SHIELD

замена

92171-25E00-0LS

Hook, leg shield (charcoal)

Hook, leg shield (charcoal)

Hook, leg shield (charcoal); Model s for 20f

9

92171-25E00-26B

HOOK,LEG SHIELD

HOOK,LEG SHIELD

Hook, leg shield (gray); Model s for 1we

10

09116-06165-000

BOLT(6X16)

BOLT(6X16)

Bolt, joint

замена

09116-06144-000

Болт

Болт

Bolt (6x16) Bolt, hook;
