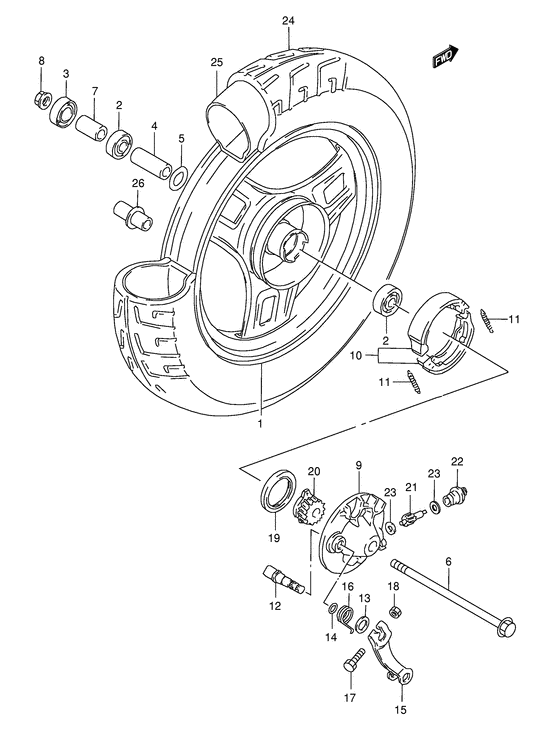

Transom + tube для мотоциклов Suzuki AE50 Hi-UP (1996)

oem код

название

цена

54140-36C01-12R

Колесо

Wheel, front,1.85-10 (silver); Model t

54140-36C01-1TS

WHEEL,FR(10X1.85)

замена

54140-36C00-1TS

Колесо

Wheel, front,1.85-10 (white); Model n/p/r

54140-36C01-28W

Колесо

Wheel, front,1.85-10 (white); Model l/m/n

08113-62007-000

Подшипник

Bearing, rh

замена

09262-10012-000

Подшипник

Bearing, lh

09285-16002-000

SEAL,OIL(16X30X8)

Oil seal (16x30x8.0)

54730-16A00-000

SPACER,FR WHEEL BEARING

Spacer, front wheel bearing

замена

54731-36C11-000

Шайба, подшипник

Spacer, front wheel bearing Model l/m/n/p,

54732-29C00-000

Support, bearing spacer

Support, spacer Model l/m/n/p

54711-16A00-000

AXLE,FR

54741-36C10-000

SPACER,FR AXLE

замена

54741-36C00-000

Spacer, front axle

Spacer, front axle rh

08319-31107-000

Гайка

54210-36C00-12R

PANEL,FR BRAKE ANCHOR

Panel, front brake anchor (silver) Panel, front brake anchor (silver); Model t

54210-36C00-1TS

Panel, front brake anchor

Panel, front brake anchor (white) Panel, front brake anchor (white); Model n/p/r

54210-36C00-28W

Panel, front brake anchor

Panel, front brake anchor (white) Panel, front brake anchor (white); Model l/m/n

замена

54410-39C00-000

Shoe, brake

54400-39820-000

SHOE SET,BRAKE

замена

Shoe, brake

Пружина

CAM,FR BRAKE

Уплотнение

Washer (12.5x20x1) Washer;

09280-12012-000

O RING(D:2.4,ID:11.8)

O ring (d:2.4 id:11.8)

54451-29C00-000

LEVER,FR BRAKE CAM

Lever, front brake cam;

54484-11B00-000

SPRING,FR BK CAM LEVER RETUR

01550-0625B-000

Болт масляного насоса

Bolt, head cover

замена

01550-06253-000

Болт (6x25)

Model r/t

01500-06257-000

Болт

замена

01107-06257-000

Болт

Model l/m/n/p

08310-0006B-000

Гайка

Nut gear shift link rod

замена

08310-00063-000

Гайка

Model r/t

08310-00067-000

Гайка

замена

08310-11067-000

Гайка

Model l/m/n/p

09285-34002-000

SEAL,OIL(34X42X5)

54611-36C00-000

GEAR,SPEEDOMETER(NT:17)

Gear, speedometer (nt:17);

54621-36C00-000

PINION,SPEEDOMETER(NT:10)

Pinion, speedometer (nt:10);

54632-02201-000

BUSH,SPEEDOMETER PINION OUTER

Bushing, pinion Bush, pinion outer;

09160-05001-A05

Шайба,5.1X9X0.4

замена

09160-05001-000

Плата

Plate, detent spring Washer;

55100-36C10-000

Tire, front (2.75-10-2pr) irc

Tire, front (2.75-10-2pr) irc; Model n, f.no.179999~180274

55110-36C40-000

Tire, front (2.75-10 37j)

Tire, front (2.75-10 37j) (pirelli) Tire, front (2.75-10 37j) (pirelli); P37, purchase locally

55100-36C00-000

Tire, front (2.75-10-2pr)

Tire, front (2.75-10-2pr) dunlop Tire, front (2.75-10-2pr) dunlop;

замена

55200-36C10-000

Tube assy, wheel inner irc

Model n, f.no.179999~180274

55200-36C40-000

Tube assy, wheel inner

Tube assy, wheel inner (pirelli) Tube assy, wheel inner (pirelli); P37, purchase locally

55200-16A00-000

TUBE ASSY,WHEEL INNER

Tube assy, wheel innter

замена

55200-36C00-000

Tube assy, wheel inner dunlop

54730-16A00-000

SPACER,FR WHEEL BEARING

Spacer, front wheel bearing Spacer, wheel bearing; Model r/t
