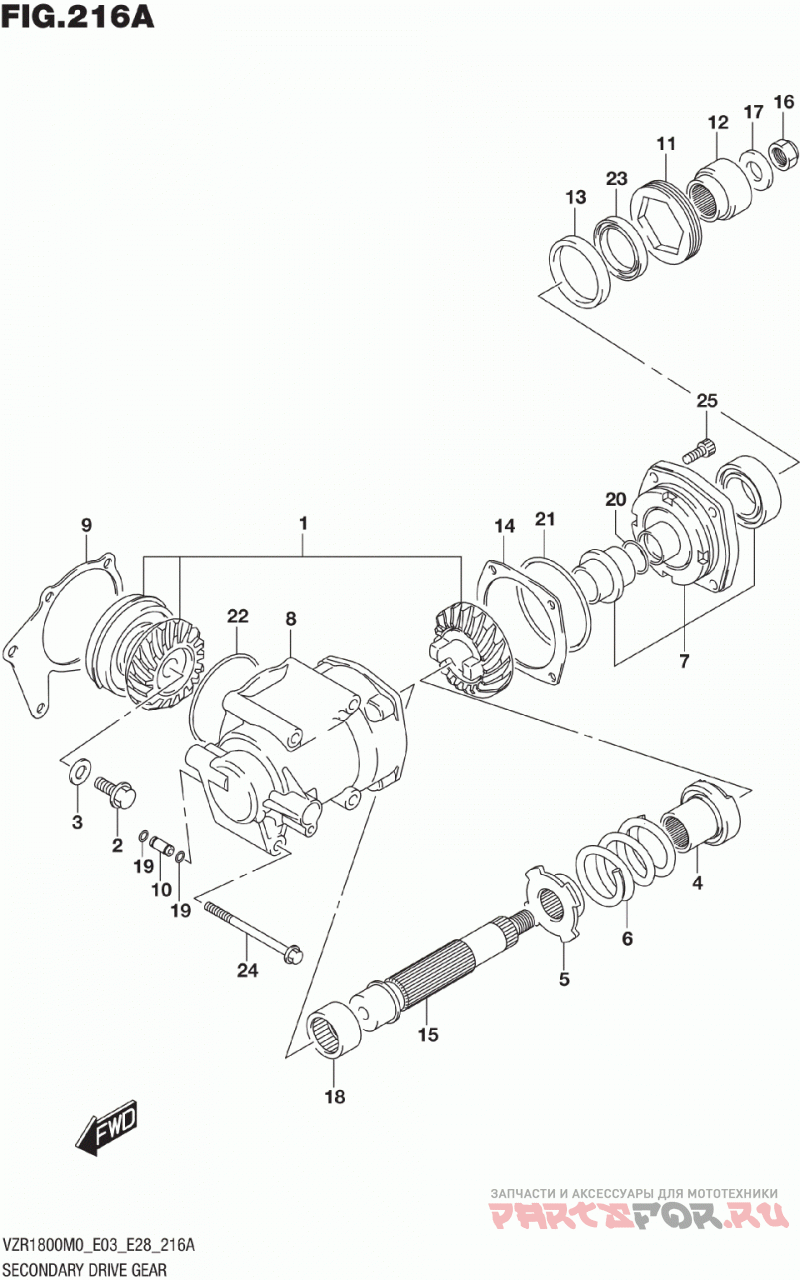

Secondary drive gear

Suzuki (Америка) VZR1800

Suzuki (Америка)
#oem кодцена
1
24910-48830
GEAR SET,SECONDARY
10
24940-26D00
PIPE,SECONDARY CASE,OIL (0.65/0.70/0.75/0.80)
11
24942-26D00
STOPPER,SEC DRIVEN BEARING
12
24943-48G01
COUPLING,SEC,DRIVEN BEVEL
13
24944-48G00
HOUSING,OIL SEAL
14
24945-48810
SHIM SET,SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)
15
24961-48G00
SHAFT,SECONDARY DRIVEN
16
09159-16003
Гайка
17
09160-16040
WASHER (16.5X36X4.0)
18
09263-32012
BEARING (32X48X22)
19
09280-06008
O RING (D:1.7,ID:6)
2
09103-12084
BOLT (12X24)
20
09280-24010
O RING (D:2.4,ID:23.7)
21
09280-78003
O RING (D:3.7,ID:76.5)
22
09280-92003
O RING (D:2.4,ID:90.8)
23
09283-38011
OIL SEAL (38X54X6)
24
01550-0895A
BOLT (8X95)
25
09106-10087
Болт (10x30)
3
09160-12045
WASHER (12X35X2.0)
4
24923-48G10
DOG,OUTPUT CAM
5
24924-48G10
STOPPER,CAM SPRING
6
24925-48G00
SPRING,SECONDARY DAMPER
7
24926-48830
STOPPER SECONDARY SET,DRIVEN
8
24931-48G30
CASE,SECONDARY GEAR
9
24935-48810
SHIM SET,SEC DRIVE (T:0.40/0.45/0.50/0.55/0.60/)
