Propeller shaft / final drive gear для мотоциклов Suzuki (Америка) VZR1800 (2020)

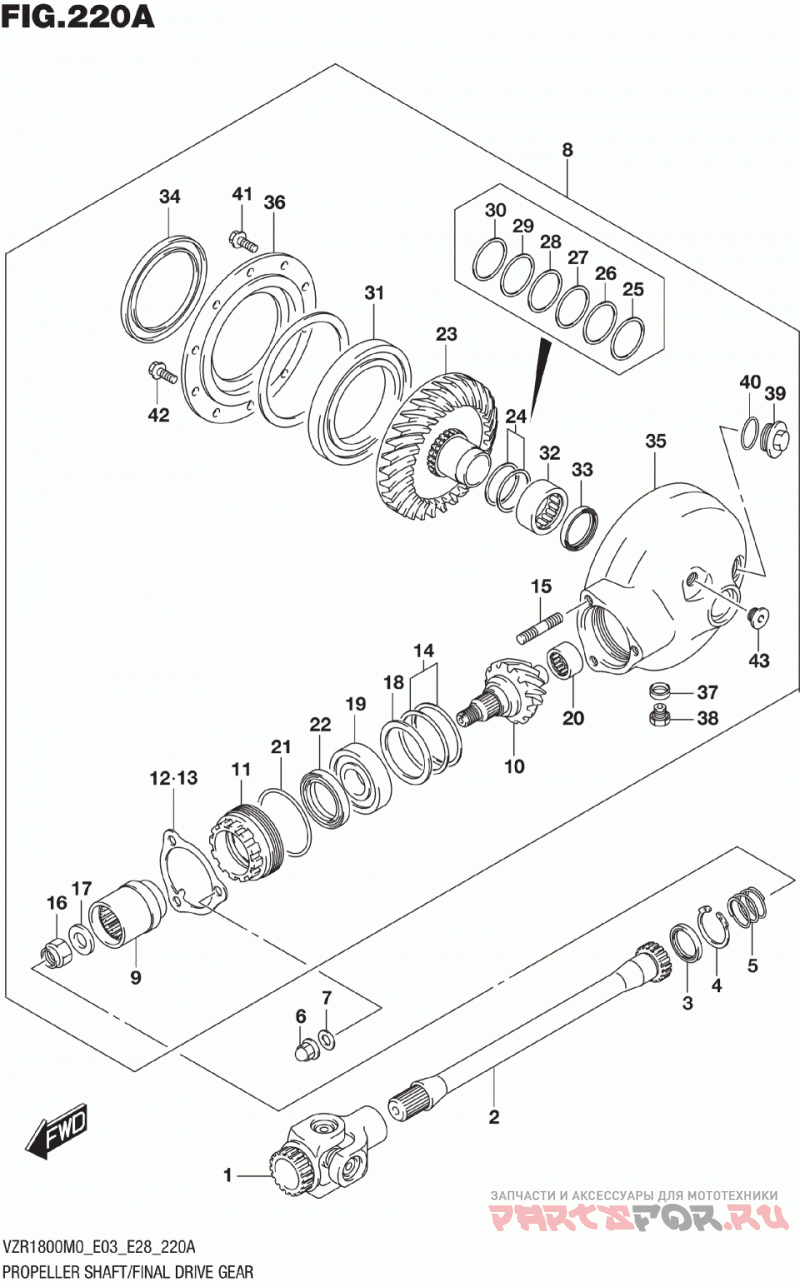

Propeller shaft / final drive gear

Suzuki (Америка) VZR1800

oem код

название

цена

27100-48G20

YOKE,UNIVERSAL JOINT

27311-24A03

.GEAR,FINAL DRIVE BEVEL (NT:1 )

27312-24A02

.STOPPER,FINAL DRIVE BEARING

27313-38B00

.PLATE,BEARING STOPPER

27313-38B10

.PLATE,BEARING STOPPER

27445-24810

.SHIM SET,FINAL DRIVE GEAR (T 0.30/0.35/0.40/0.50/0.60)

.BOLT,STUD

Гайка

.WASHER (16X29X4.0)

.WASHER (54X68X1.5)

.BEARING (28X68X18)

SHAFT,PROPELLER (L:375)

09263-20062

.BEARING (20X34X18)

09280-64003

.O RING (D:3.1,ID:63.9)

09283-47002

.OIL SEAL (45.5X58X7)

27320-48G00

.GEAR,FINAL DRIVEN BEVEL (NT: 2)

27326-48811

.SHIM SET,FINAL DRIVEN GEAR R

09283-30026

OIL SEAL (30X40.5X5.5)

..SHIM (40X50X1.5)

.BEARING (85X130X14)

.BEARING (40X50X20)

.OIL SEAL (38X46X6)

.OIL SEAL (85X110X11)

27450-48G70-019

.CASE,FINAL GEAR (BLACK)

27461-38B00

.CASE,FINAL GEAR BEARING

09168-14002

.GASKET (13.8X18.8X4.8)

09247-14002

.PLUG (MAGNETO)

09259-30007

.PLUG (30X9)

09381-40003

Пружинное стопорное кольцо

09280-26006

.O-RING (D:3.1,ID:26.4)

Болт

Болт

.PLUG (16X8)

Пружина

Гайка

WASHER (113X122X2.3)

GEAR & CASE SET,FINAL BEVEL ( LACK)

27172-24A00

.COUPLING,FINAL DRIVE GEAR

09168-14004

.GASKET (13.8X18.8X4.8)
