Secondary drive gear для мотоциклов Suzuki (Америка) VL800 (2020)

Москва и регионы России

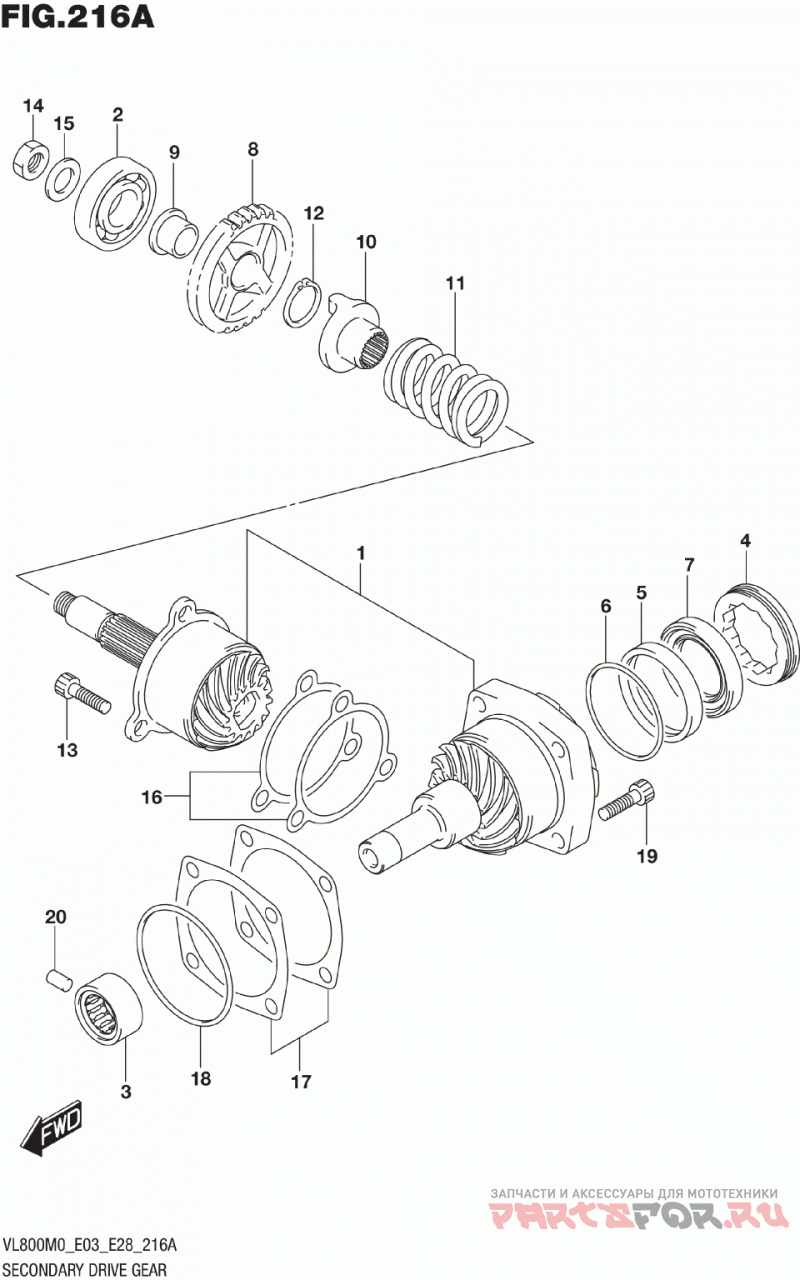

Secondary drive gear

Suzuki (Америка) VL800

Secondary drive gear

#

oem код

название

цена

1

GEAR & HOUSING SET,SECONDARY NT:15/17)

GEAR & HOUSING SET,SECONDARY NT:15/17)

10

DOG,OUTPUT CAM

DOG,OUTPUT CAM

11

Пружина

Пружина

12

Пружинное стопорное кольцо

Пружинное стопорное кольцо

13

BOLT (8X25)

BOLT (8X25)

14

Гайка

Гайка

15

WASHER (16X29X4.0)

WASHER (16X29X4.0)

16

SHIM SET,SEC DRIVE GEAR (T:0. /0.35/0.4/0.5/0.6)

SHIM SET,SEC DRIVE GEAR (T:0. /0.35/0.4/0.5/0.6)

17

SHIM SET,SEC DRIVEN HOUSING ( :0.3/0.35/0.4/0.5/0.6)

SHIM SET,SEC DRIVEN HOUSING ( :0.3/0.35/0.4/0.5/0.6)

18

O RING (D:2.1,ID:66.2)

O RING (D:2.1,ID:66.2)

19

BOLT (8X25)

BOLT (8X25)

2

.BEARING (20X52X15)

.BEARING (20X52X15)

20

Штифт

Штифт

3

.BEARING (20X34X16)

.BEARING (20X34X16)

4

.STOPPER,SEC DRIVEN BEARING

.STOPPER,SEC DRIVEN BEARING

5

.HOUSING,OIL SEAL

.HOUSING,OIL SEAL

6

.O RING (D:1.2,ID:59.6)

.O RING (D:1.2,ID:59.6)

7

.OIL SEAL (38X54X8.5)

.OIL SEAL (38X54X8.5)

8

GEAR,REDUCTION DRIVEN,NT:30 ( T:30)

GEAR,REDUCTION DRIVEN,NT:30 ( T:30)

9

BUSH,REDUCTION DRIVEN GEAR

BUSH,REDUCTION DRIVEN GEAR
