Rear wheel (vl800) для мотоциклов Suzuki (Америка) VL800 (2020)

Москва и регионы России

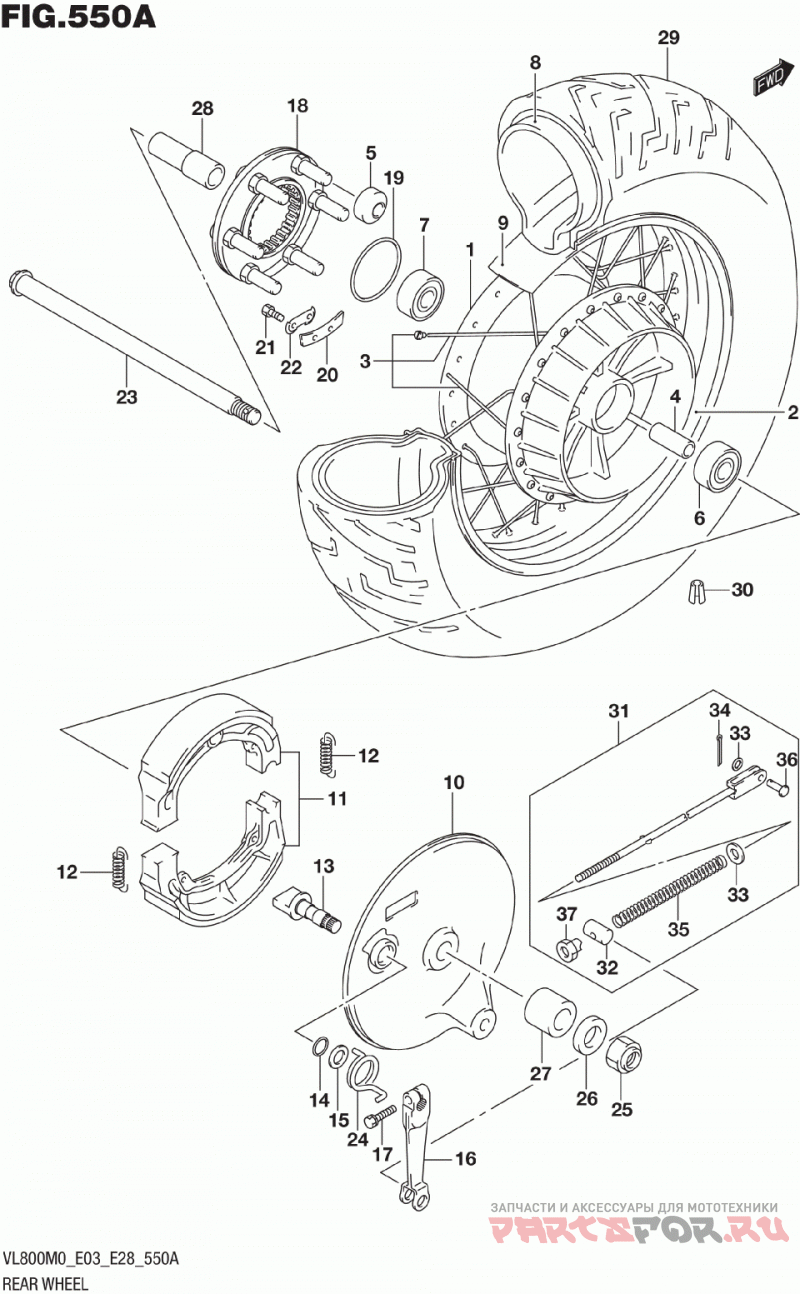

Rear wheel (vl800)

Suzuki (Америка) VL800

Rear wheel (vl800)

#

oem код

название

цена

1

HUB,REAR

HUB,REAR

10

64210-38A70-20H

PANEL,REAR BRAKE ANCHOR (SILV R)

PANEL,REAR BRAKE ANCHOR (SILV R)

11

SHOE SET,BRAKE

SHOE SET,BRAKE

12

SPRING,BRAKE SHOE

SPRING,BRAKE SHOE

13

CAM,REAR BRAKE

CAM,REAR BRAKE

14

O RING (D:1.9,ID:14.5)

O RING (D:1.9,ID:14.5)

15

WASHER (15.5X24X1.6)

WASHER (15.5X24X1.6)

16

LEVER,RR BRAKE CAM

LEVER,RR BRAKE CAM

17

Болт

Болт

18

JOINT ASSY,REAR HUB DRIVEN

JOINT ASSY,REAR HUB DRIVEN

19

O RING (D:2.1,ID:65)

O RING (D:2.1,ID:65)

2

RIM,REAR WHEEL (15M/CXMT4.00)

RIM,REAR WHEEL (15M/CXMT4.00)

20

WASHER, THRUST (T:1.6)

WASHER, THRUST (T:1.6)

21

BOLT (6X16)

BOLT (6X16)

22

Шайба

Шайба

23

AXLE,REAR (L:302)

AXLE,REAR (L:302)

24

Пружина

Пружина

25

Гайка

Гайка

26

WASHER (17X30X3.2)

WASHER (17X30X3.2)

27

SPACER,REAR AXLE RH

SPACER,REAR AXLE RH

28

SPACER,REAR AXLE LH

SPACER,REAR AXLE LH

29

TIRE,REAR (170/80-15M/C 77H) (GS-23R IRC)

TIRE,REAR (170/80-15M/C 77H) (GS-23R IRC)

3

SPOKE SET,REAR WHEEL

SPOKE SET,REAR WHEEL

30-1

BALANCER,WHEEL (15G)

BALANCER,WHEEL (15G)

30-2

BALANCER,WHEEL (30G)

BALANCER,WHEEL (30G)

31

ROD ASSY,REAR BRAKE

ROD ASSY,REAR BRAKE

32

.PIN (D:13.0,L:18.0)

.PIN (D:13.0,L:18.0)

33

Шайба

Шайба

34

Палец

Палец

35

Пружина

Пружина

36

.PIN (10X16)

.PIN (10X16)

37

Гайка

Гайка

4

SPACER (17.5X25X113)

SPACER (17.5X25X113)

5

BUSH (12X41X34)

BUSH (12X41X34)

6

Подшипник

Подшипник

7

Подшипник

Подшипник

8

TUBE ASSY,WHEEL INNER

TUBE ASSY,WHEEL INNER

9

PROTECTOR, WHEEL INNER TUBE

PROTECTOR, WHEEL INNER TUBE
