Front fork damper (sv650xa) для мотоциклов Suzuki (Америка) SV650A (2020)

Москва и регионы России

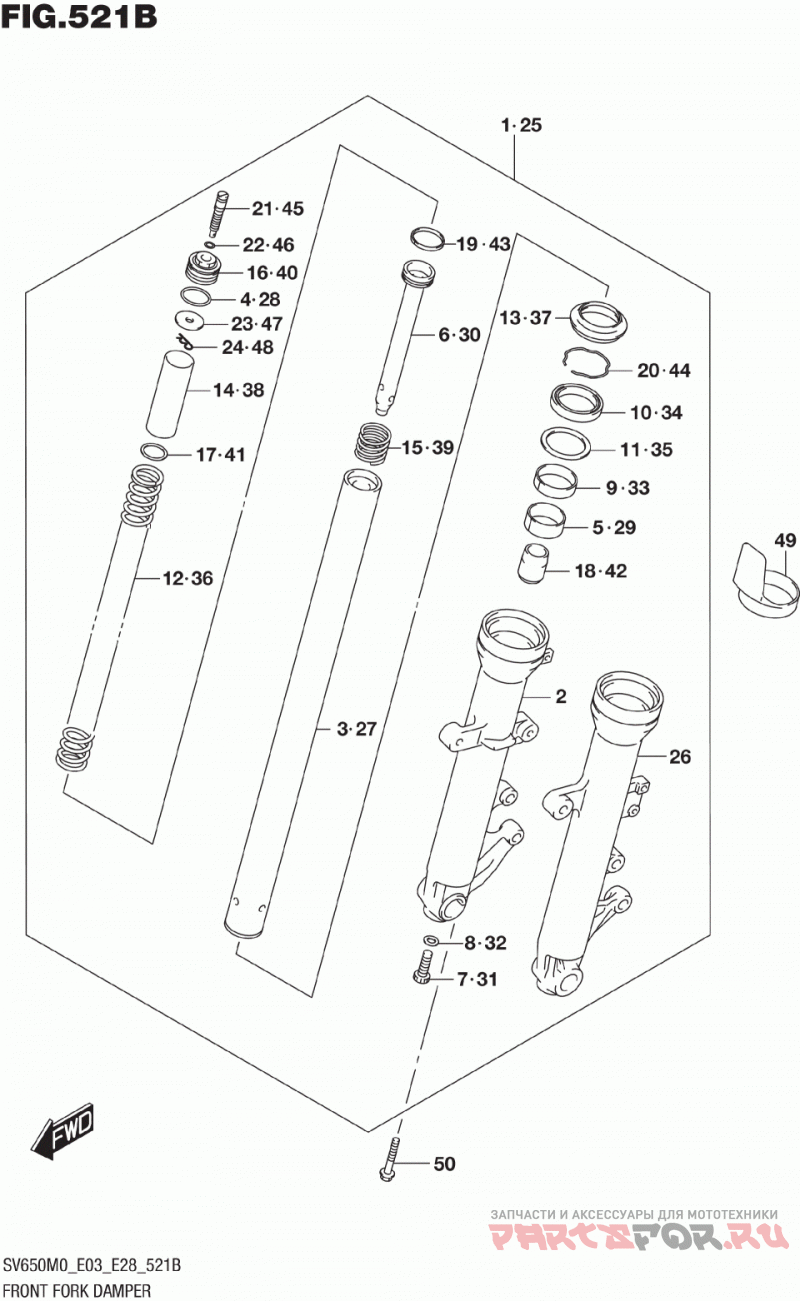

Front fork damper (sv650xa)

Suzuki (Америка) SV650A

Front fork damper (sv650xa)

#

oem код

название

цена

1

51103-18K10-291

DAMPER ASSY,FR RH (BLACK)

DAMPER ASSY,FR RH (BLACK)

10

.SEAL,OIL

.SEAL,OIL

11

.SPACER,SEAL

.SPACER,SEAL

12

.SPRING,FRONT

.SPRING,FRONT

13

.SEAL,DUST

.SEAL,DUST

14

.COLLAR,SPRING

.COLLAR,SPRING

15

.SPRING,REBOUND

.SPRING,REBOUND

16

.BOLT,FORK

.BOLT,FORK

17

.JOINT,SPRING

.JOINT,SPRING

18

.PIECE,OIL LOCK

.PIECE,OIL LOCK

19

.RING,PISTON

.RING,PISTON

2

51130-18K00-291

.TUBE,OUTER RH (BLACK)

.TUBE,OUTER RH (BLACK)

20

.RING,STOPPER

.RING,STOPPER

21

.ADJUSTER BOLT,SPRING

.ADJUSTER BOLT,SPRING

22

.O-RING (D:1.9,ID:8.6)

.O-RING (D:1.9,ID:8.6)

23

.SEAT,SPRING

.SEAT,SPRING

24

.PIN,SEAT SPRING

.PIN,SEAT SPRING

25

51104-18K10-291

DAMPER ASSY,FR LH (BLACK)

DAMPER ASSY,FR LH (BLACK)

26

51140-18K00-291

.TUBE,OUTER LH (BLACK)

.TUBE,OUTER LH (BLACK)

27

.TUBE,INNER

.TUBE,INNER

28

Кольцо

Кольцо

29

Втулка скольжения

Втулка скольжения

3

.TUBE,INNER

.TUBE,INNER

30

Цилиндр

Цилиндр

31

.BOLT (8X18)

.BOLT (8X18)

32

.GASKET (8.2X13X1.5)

.GASKET (8.2X13X1.5)

33

.BUSH,GUIDE

.BUSH,GUIDE

34

.SEAL,OIL

.SEAL,OIL

35

.SPACER,SEAL

.SPACER,SEAL

36

.SPRING,FRONT

.SPRING,FRONT

37

.SEAL,DUST

.SEAL,DUST

38

.COLLAR,SPRING

.COLLAR,SPRING

39

.SPRING,REBOUND

.SPRING,REBOUND

4

Кольцо

Кольцо

40

.BOLT,FORK

.BOLT,FORK

41

.JOINT,SPRING

.JOINT,SPRING

42

.PIECE,OIL LOCK

.PIECE,OIL LOCK

43

.RING,PISTON

.RING,PISTON

44

.RING,STOPPER

.RING,STOPPER

45

.ADJUSTER BOLT,SPRING

.ADJUSTER BOLT,SPRING

47

.SEAT,SPRING

.SEAT,SPRING

48

.PIN,SEAT SPRING

.PIN,SEAT SPRING

49

Протектор

Протектор

5

Втулка скольжения

Втулка скольжения

50

BOLT,HANDLE HOLDER

BOLT,HANDLE HOLDER

6

Цилиндр

Цилиндр

7

.BOLT (8X18)

.BOLT (8X18)

8

.GASKET (8.2X13X1.5)

.GASKET (8.2X13X1.5)

9

.BUSH,GUIDE

.BUSH,GUIDE
