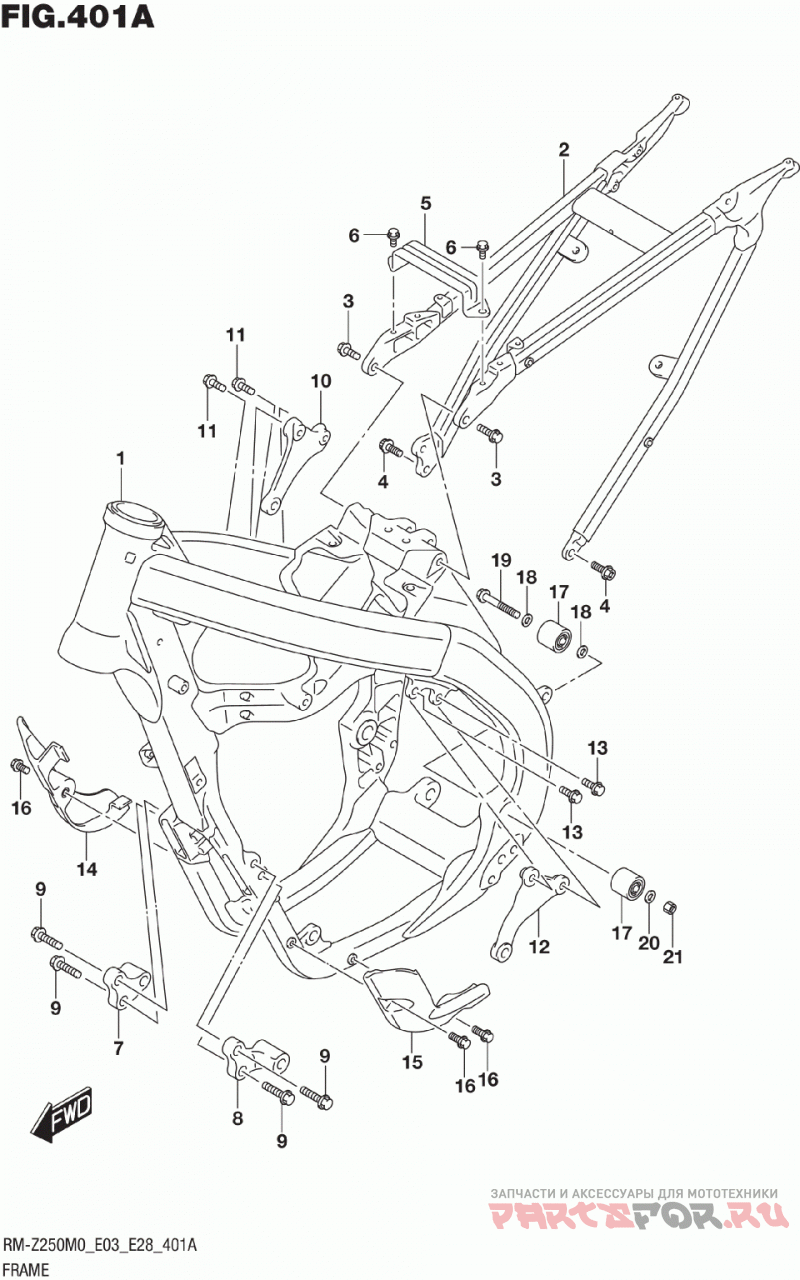

Рама
Suzuki (Америка) RM,Z250
| # | oem код | название | цена |
|---|---|---|---|
11 | 09103-08288 BOLT (8X25) | BOLT (8X25) | |
13 | 09103-08505 Болт (8x20) | Болт (8x20) | |
14 | 42520-28H11 PROTECTOR,FRONT RH | PROTECTOR,FRONT RH | |
15 | 42530-28H20 PROTECTOR,FRONT LH | PROTECTOR,FRONT LH | |
16 | 09116-06177 Болт (6x25) | Болт (6x25) | |
17 | 43910-37F00 ROLLER,CHAIN | ROLLER,CHAIN | |
18 | 09181-08167 SHIM (8X16X1) | SHIM (8X16X1) | |
19 | 09103-08207 Болт (8x45) | Болт (8x45) | |
2 | 41200-37K00 RAIL,SEAT | RAIL,SEAT | |
20 | 09181-08111 SHIM (8X12X1) | SHIM (8X12X1) | |
21 | 08319-2108A Гайка | Гайка | |
3 | 09103-08288 BOLT (8X25) | BOLT (8X25) | |
4 | 09103-08505 Болт (8x20) | Болт (8x20) | |
6 | 01547-0616A Болт | Болт | |
9 | 09103-08048 Болт (8x30) | Болт (8x30) |
