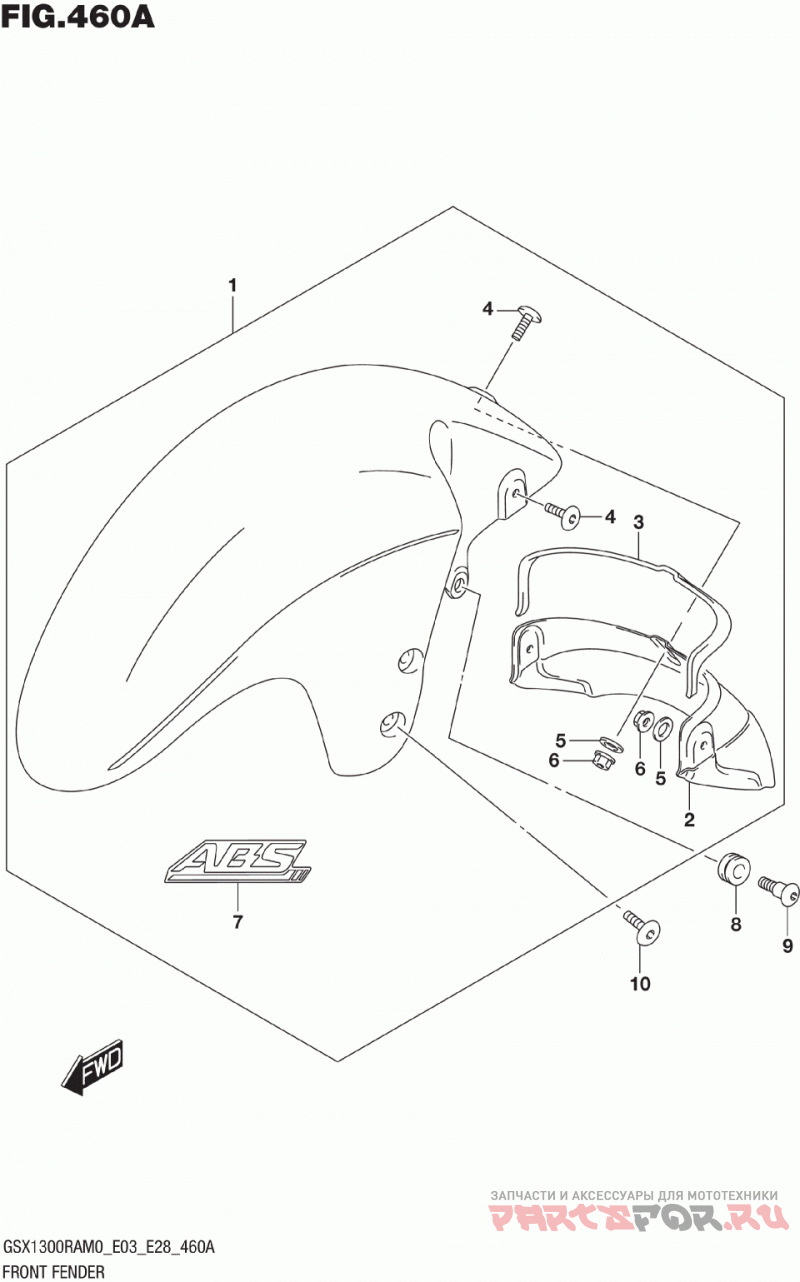

Переднее крыло
Suzuki (Америка) GSX1300RA
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 53100-15H11-YLF FENDER ASSY,FRONT (GRAY) (BODY COLOR:YLF) | FENDER ASSY,FRONT (GRAY) (BODY COLOR:YLF) | |
1-2 | 53100-15H11-YYG FENDER, FRONT (RED) (BODY COLOR:YYG) | FENDER, FRONT (RED) (BODY COLOR:YYG) | |
10 | 09139-06169 Винт (6x16) | Винт (6x16) | |
2 | 53331-15H00 .MUD GUARD,FRONT FENDER | .MUD GUARD,FRONT FENDER | |
3 | 94424-05H00 .CUSHION | .CUSHION | |
4 | 09139-06129 .SCREW (6X16) | .SCREW (6X16) | |
5 | 09160-06129 .WASHER (6.5X16X1) | .WASHER (6.5X16X1) | |
6 | 08319-3106A Гайка | Гайка | |
7 | 68151-44G01-1ZY .EMBLEM, | .EMBLEM, | |
8 | 09320-09016 CUSHION (9X18X9.5) | CUSHION (9X18X9.5) | |
9 | 09139-06190 Болт (6X20) | Болт (6X20) |
