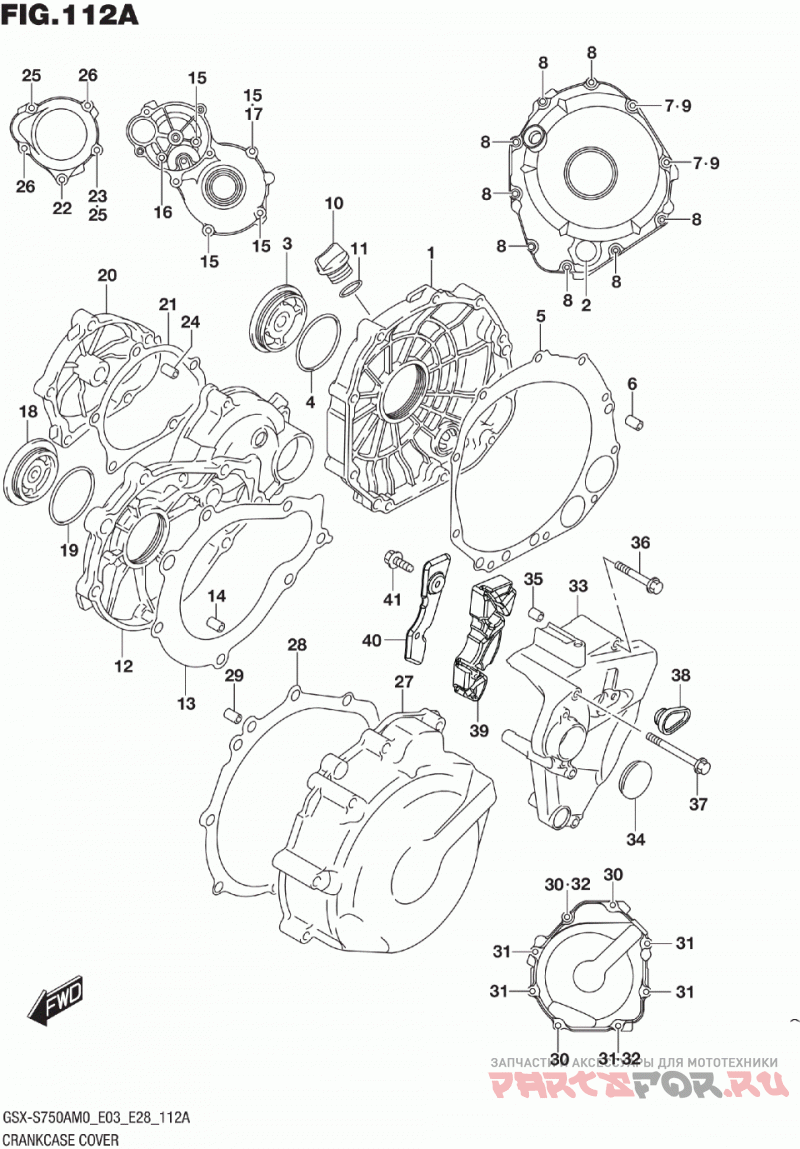

Боковые крышки

Suzuki (Америка) GSX,S750Z,A,ZA

Suzuki (Америка)
#oem кодцена
1
11340-44G10
Крышка сцепления
10
11971-25D00
PLUG,ENGINE OIL FILLER
11
09280-17003
O RING (D:3.1,ID:16.8)
12
11381-35F10
COVER,STARTER CLUTCH
13
11491-33E02
GASKET,STARTER CLUTCH COVER
14
04211-09149
Штифт
15
09103-06528
BOLT,STARTER CLUTCH COVER (6X 5)
16
09103-06530
BOLT,CLUTCH COVER (6X35)
17
09168-06023
GASKET (5.8X13X1.2)
18
09259-36021
PLUG (36X10)
19
09280-33004
O-RING (D:3.1,ID:32.7)
2
11971-33210
.LENS, OIL LEVEL CHECK
20
11382-33E10
CAP,STRAINER IDLE GEAR
21
11492-33E00
GASKET,START IDLE GR CAP
22
09103-06534
BOLT,ENG SPROCKET COVER (6X55
23
09168-06023
GASKET (5.8X13X1.2)
24
04211-09149
Штифт
25
09103-06528
BOLT,STARTER CLUTCH COVER (6X 5)
26
09103-06530
BOLT,CLUTCH COVER (6X35)
27
11351-18G20
COVER,MAGNETO
28
11483-18G00
GASKET,MAGNETO COVER
29
04211-09149
Штифт
3
11342-41G10
CAP,CLUTCH RELEASE ADJUST
30
09103-06529
BOLT,CLUTCH COVER (6X30)
31
09103-06532
BOLT,MAGNETO COVER (L45)
32
09168-06023
GASKET (5.8X13X1.2)
33
11361-08J10
COVER, ENGINE SPROCKET
34
09250-30003
CAP (OD:36)
35
04211-09129
Штифт
36
09103-06536
BOLT,MAGNETO COVER (6X65)
37
09103-06541
BOLT,ENG SPROCKET COVER (6X95
38
11362-04K00
CAP, ENG SPROCKET COVER HOLE
39
11362-13K00
DAMPER, ENGINE SPROCKET COVER
4
31156-17E00
O-RING (D:2.4,ID:52.6)
40
11363-13K00
PLATE, ENGINE SPROCKET COVER
41
09103-06188
Болт (6x10)
5
11482-40F10
GASKET,CLUTCH COVER
6
04211-09189
Штифт
7
09168-06023
GASKET (5.8X13X1.2)
8
09103-06529
BOLT,CLUTCH COVER (6X30)
9
09103-06531
BOLT,MAGNETO COVER (6X40)
