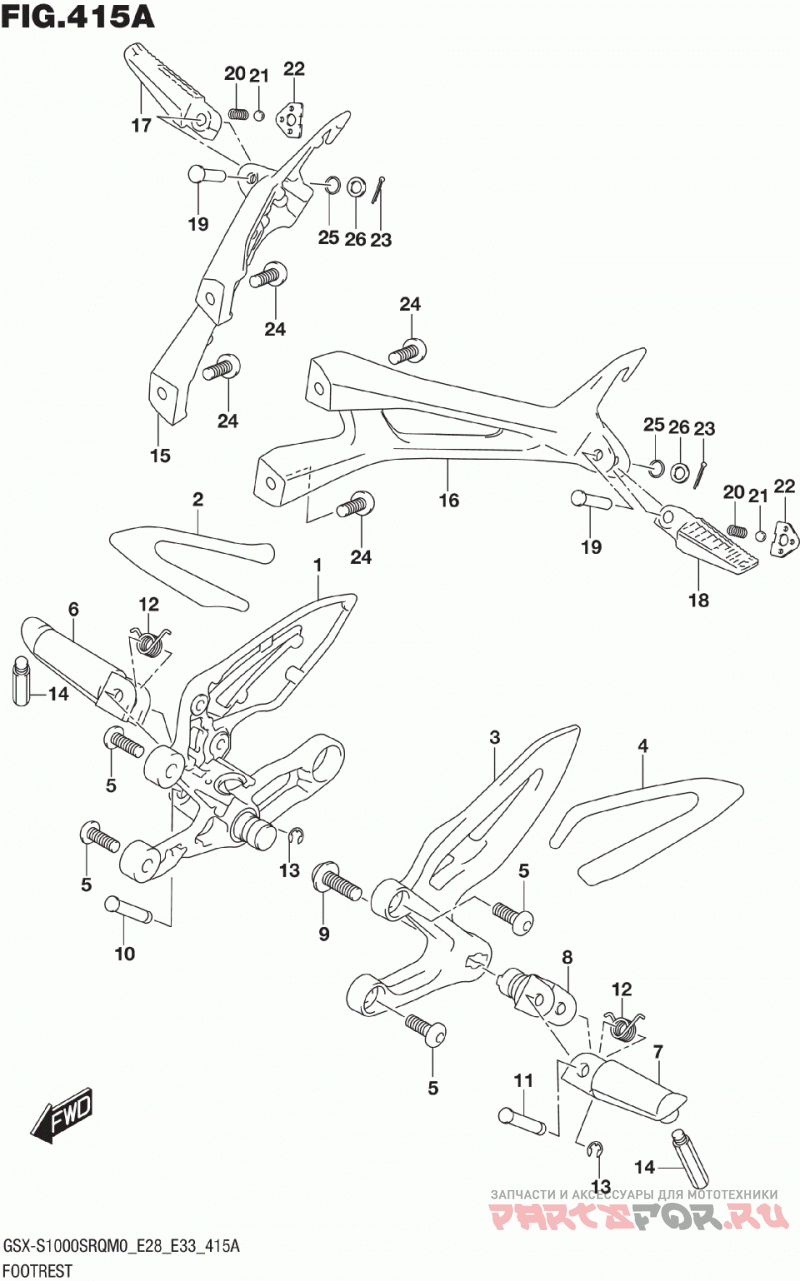

Подножки для мотоциклов Suzuki (Америка) GSX,S1000SA,KATANA 2020 (2020)

Подножки

Suzuki (Америка) GSX,S1000SA,KATANA 2020

oem код

название

цена

43510-04K10

BRACKET,FR FOOTREST,R ((E28,E33))

PIN ((E28,E33))

PIN ((E28,E33))

SPRING ((E28,E33))

E-RING ((E28,E33))

BOLT,BANK SENSOR ((E28,E33))

43811-07L00

BRACKET,PILLION FOOTREST RH ((E28,E33))

43821-07L00

BRACKET,PILLION FOOTREST LH ((E28,E33))

43611-37H60

BAR,PILLION FOOTREST RH ((E28,E33))

43621-37H60

BAR,PILLION FOOTREST LH ((E28,E33))

09200-08002

PIN ((E28,E33))

43571-04K10

TAPE,FR FOOTREST,R ((E28,E33))

09440-05003

SPRING ((E28,E33))

06111-07004

BALL ((E28,E33))

43816-01H20

PLATE,PILLION FOOTREST,R ((E28,E33))

04111-2015A

PIN ((E28,E33))

18592-68K00

O-RING (D:2.4,ID:6.9) ((E28,E33))

09160-08090

WASHER (8.5X14X1.6) ((E28,E33))

43521-04K10

BRACKET,FR FOOTREST,L ((E28,E33))

43572-04K10

TAPE,FR FOOTREST,L ((E28,E33))

43516-35F20

BAR, FRONT FOOTREST RH ((E28,E33))

43526-35F20

BAR, FRONT FOOTREST LH ((E28,E33))

43530-16G10

HOLDER,FOOTREST,L ((E28,E33))

09106-10064

BOLT (10X28) ((E28,E33))
