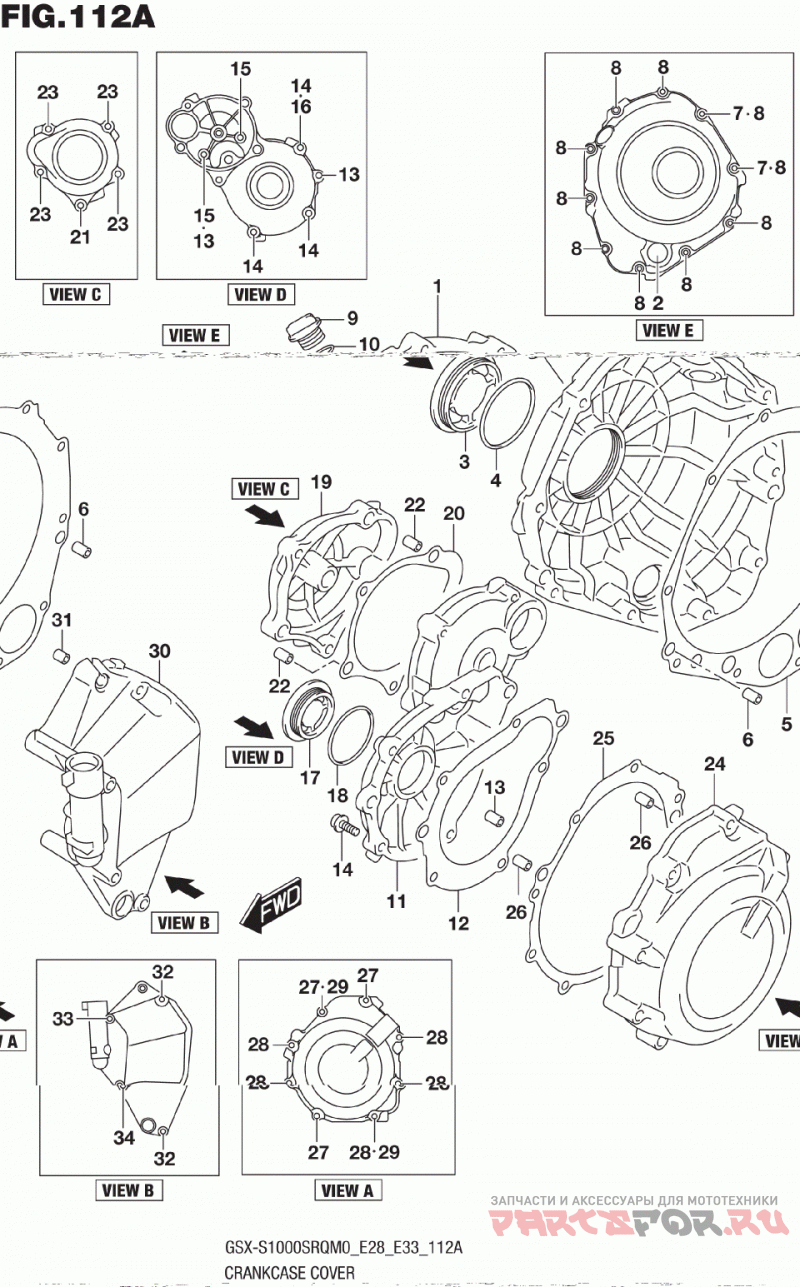

Боковые крышки

Suzuki (Америка) GSX,S1000SA,KATANA 2020

Suzuki (Америка)
#oem кодцена
1
11340-04K00
COVER,CLUTCH
10
09280-17003
O RING (D:3.1,ID:16.8)
11
11381-04K00
COVER,STARTER CLUTCH
12
11491-33E02
GASKET,STARTER CLUTCH COVER
13
04211-09149
Штифт
14
09103-06528
BOLT,STARTER CLUTCH COVER (6X 5)
15
09103-06530
BOLT,CLUTCH COVER (6X35)
16
09168-06023
GASKET (5.8X13X1.2)
17
09259-36021
PLUG (36X10)
18
09280-33004
O-RING (D:3.1,ID:32.7)
19
11382-04K00
CAP,STARTER IDLE GEAR
2
11971-33210
.LENS, OIL LEVEL CHECK
20
11492-04K00
GASKET,START IDLE GR CAP
21
09103-06535
BOLT,START IDLE GEAR CAP (6X6 )
22
04211-09149
Штифт
23
09103-06530
BOLT,CLUTCH COVER (6X35)
24
11351-04K00
COVER,MAGNETO
25
11483-18G00
GASKET,MAGNETO COVER
26
04211-09149
Штифт
27
09103-06529
BOLT,CLUTCH COVER (6X30)
28
09103-06531
BOLT,MAGNETO COVER (6X40)
29
09168-06023
GASKET (5.8X13X1.2)
3
11342-41G10
CAP,CLUTCH RELEASE ADJUST
30
11361-04K00
COVER,ENG SPROCKET
31
04211-09129
Штифт
32
09103-06534
BOLT,ENG SPROCKET COVER (6X55
33
09103-06541
BOLT,ENG SPROCKET COVER (6X95
34
09103-06539
BOLT,ENG SPROCKET COVER (6X80
4
31156-17E00
O-RING (D:2.4,ID:52.6)
5
11482-40F10
GASKET,CLUTCH COVER
6
04211-09189
Штифт
7
09168-06023
GASKET (5.8X13X1.2)
8
09103-06529
BOLT,CLUTCH COVER (6X30)
9
11971-25D00
PLUG,ENGINE OIL FILLER
