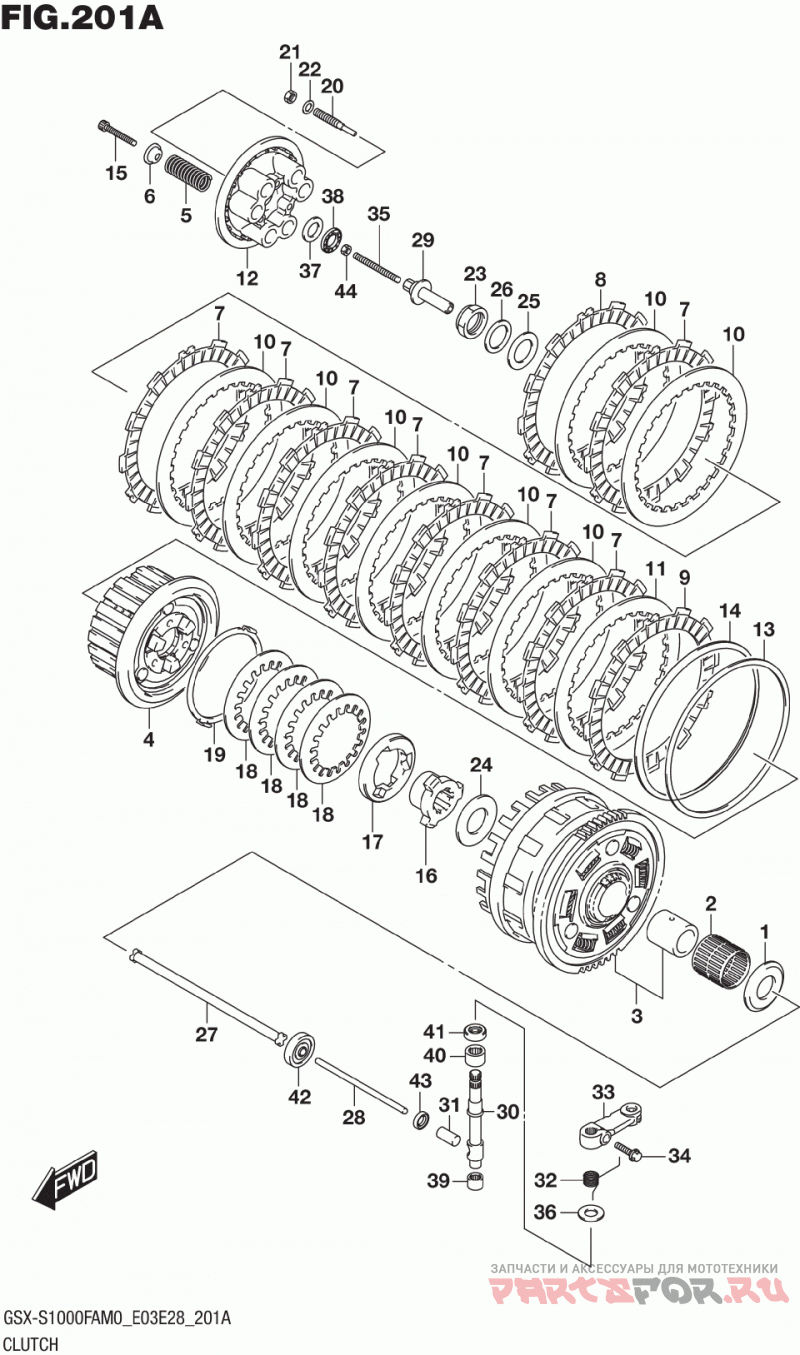

Сцепление

Suzuki (Америка) GSX,S1000FA,FZA

Suzuki (Америка)
#oem кодцена
1
09160-25073
WASHER (25X54X2.4)
10
21451-41G00
PLATE,CLUTCH DRIVEN (T:2.3)
11
21451-41G40
PLATE,CLUTCH DRIVEN NO.2 (T:2 3)
12
21462-41G00
DISC,CLUTCH PRESSURE
13
21471-41G00
SEAT,WAVE WASHER
14
21472-41G20
WASHER,CLUTCH PLATE WAVE
15
21482-41G10
BOLT,CLUTCH SPRING
16
21611-41G20
CAM,CLUTCH DRIVE
17
21612-41G20
CAM,CLUTCH DRIVEN
18
21621-41G00
WASHER,CAM REACTION WAVE
19
21624-41G10
WASHER,CAM REACTION SEAT
2
09263-35017
BEARING (35X40X35.8)
20
21622-41G00
LIFTER,CLUTCH PRESSURE DISC
21
21623-41G00
NUT,CL PRESS DISC LIFTER LOCK
22
09181-08139
SHIM (8.8X14X1)
23
09159-24010
Гайка
24
09160-25056
WASHER (25X50X2.5)
25
09160-25077
WASHER (25X41X2.5)
26
09164-24008
WASHER (24.2X35X2.7)
27
23110-38B00
ROD,CLUTCH PUSH RIGHT
28
23111-35F00
ROD,CLUTCH PUSH LH
29
23121-41G00
PIECE,CLUTCH PUSH
3
21200-40880
GEAR ASSY,PRIMARY DRIVEN (NT: 3)
30
23122-41G00
CAMSHAFT,CLUTCH RELEASE
31
23123-41G00
CAP,CLUTCH PUSH ROD
32
23125-41G00
SPRING,CLUTCH RELEASE RETURN
33
23271-41G60
ARM,CLUTCH RELEASE
34
09103-06223
Болт (6X20)
35
09134-06015
SCREW (6X73)
36
09160-10020
WASHER (10.5X24X1)
37
09160-15045
WASHER (15.5X28X1)
38
09263-15003
Подшипник (15x28x2)
39
09263-10014
BEARING (10X14X10)
4
21410-41G20
HUB,CLUTCH SLEEVE
40
09263-12027
BEARING (12X18X12)
41
09282-10012
OIL SEAL (10X20X6)
42
09283-06010
OIL SEAL (6X34X10.5)
43
09285-10004
OIL SEAL (10X17X5)
44
08310-0006A
Гайка
5
21413-41G00
SPRING,CLUTCH
6
21414-29F00
Шайба
7
21441-36F00
PLATE,CLUTCH DRIVE (T:2.7)
8
21441-49H00
PLATE,CLUTCH DRIVE (T:2.7)
9
21442-41G00
PLATE,CLUTCH DRIVE NO.3 (T:2. )
