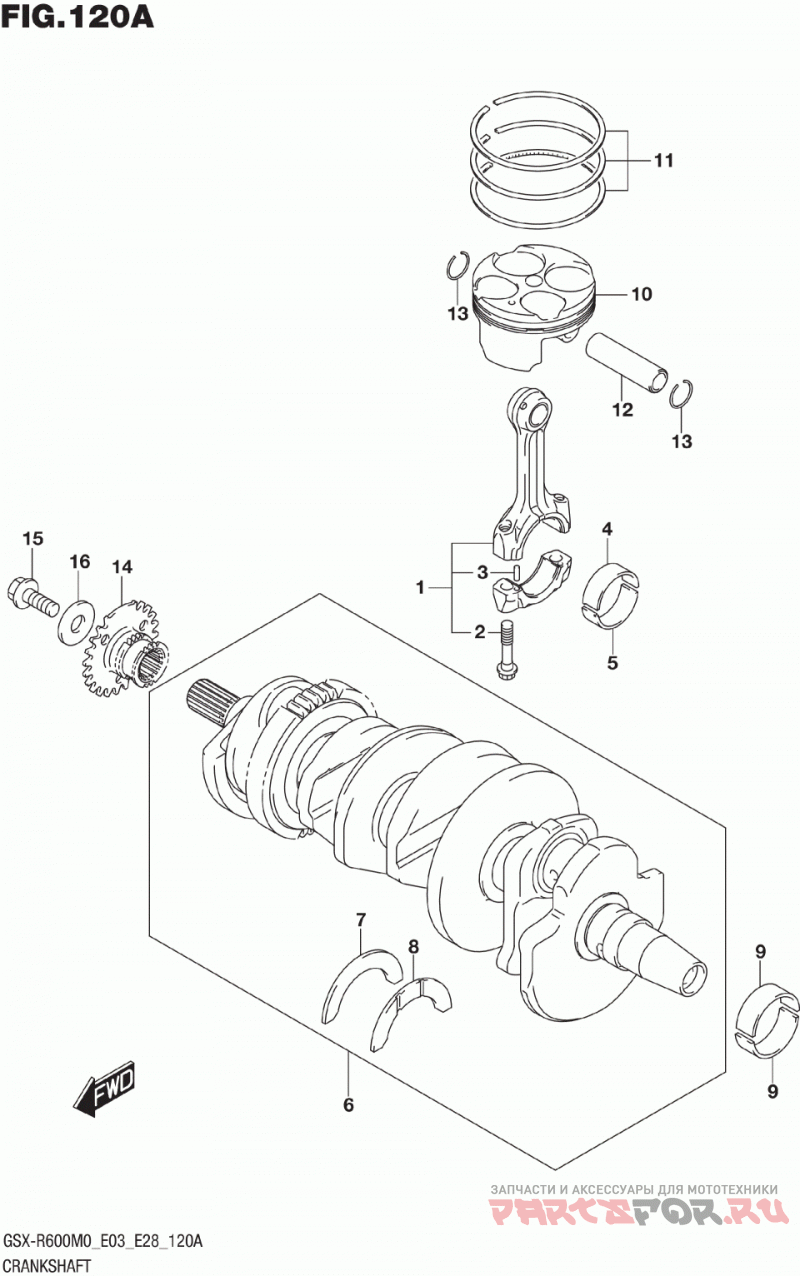

Коленвал

Suzuki (Америка) GSX,R600

Suzuki (Америка)
#oem кодцена
1
12160-14J10
Шатун
10
12111-14J00-0F0
Поршень
11
12140-29G20
RING SET,PISTON
12
12151-14J00
PIN,PISTON
13
09381-14001
RING,SNAP
14
12731-01H00
SPROCKET,CAM CHAIN DRIVE (NT: 7)
15
09103-10189
BOLT (10X23)
16
08211-10285
Шайба
2
12163-35F00
.BOLT,CONNROD
3
04221-04089
Палец
4-1
12164-14J00-0A0
BEARING,CRANK PIN
4-2
12164-14J00-0B0
BEARING,CRANK PIN
4-3
12164-14J00-0C0
BEARING,CRANK PIN
4-4
12164-14J00-0D0
BEARING,CRANK PIN
5-1
12164-29G00-0A0
BEARING,CRANK PIN
5-2
12164-29G00-0B0
BEARING,CRANK PIN
5-3
12164-29G00-0C0
BEARING,CRANK PIN
5-4
12164-29G00-0D0
BEARING,CRANK PIN
6
12000-01820
CRANKSHAFT SET
7
12228-17E00-0D0
.BEARING,CRANK THRUST (GREEN)
8-1
12228-17E00-0A0
.BEARING,CRANK THRUST (RED)
8-2
12228-17E00-0B0
.BEARING,CRANK THRUST (BLACK)
8-3
12228-17E00-0C0
.BEARING,CRANK THRUST (BLUE)
8-4
12228-17E00-0D0
.BEARING,CRANK THRUST (GREEN)
8-5
12228-17E00-0E0
.BEARING,CRANK THRUST (YELLOW
8-6
12228-17E00-0F0
.BEARING,CRANK THRUST (WHITE)
9-1
12229-01H00-0A0
BEARING,CRANKSHAFT
9-2
12229-01H00-0B0
BEARING,CRANKSHAFT
9-3
12229-01H00-0C0
BEARING,CRANKSHAFT
9-4
12229-01H00-0D0
BEARING,CRANKSHAFT
9-5
12229-01H00-0E0
BEARING,CRANKSHAFT
