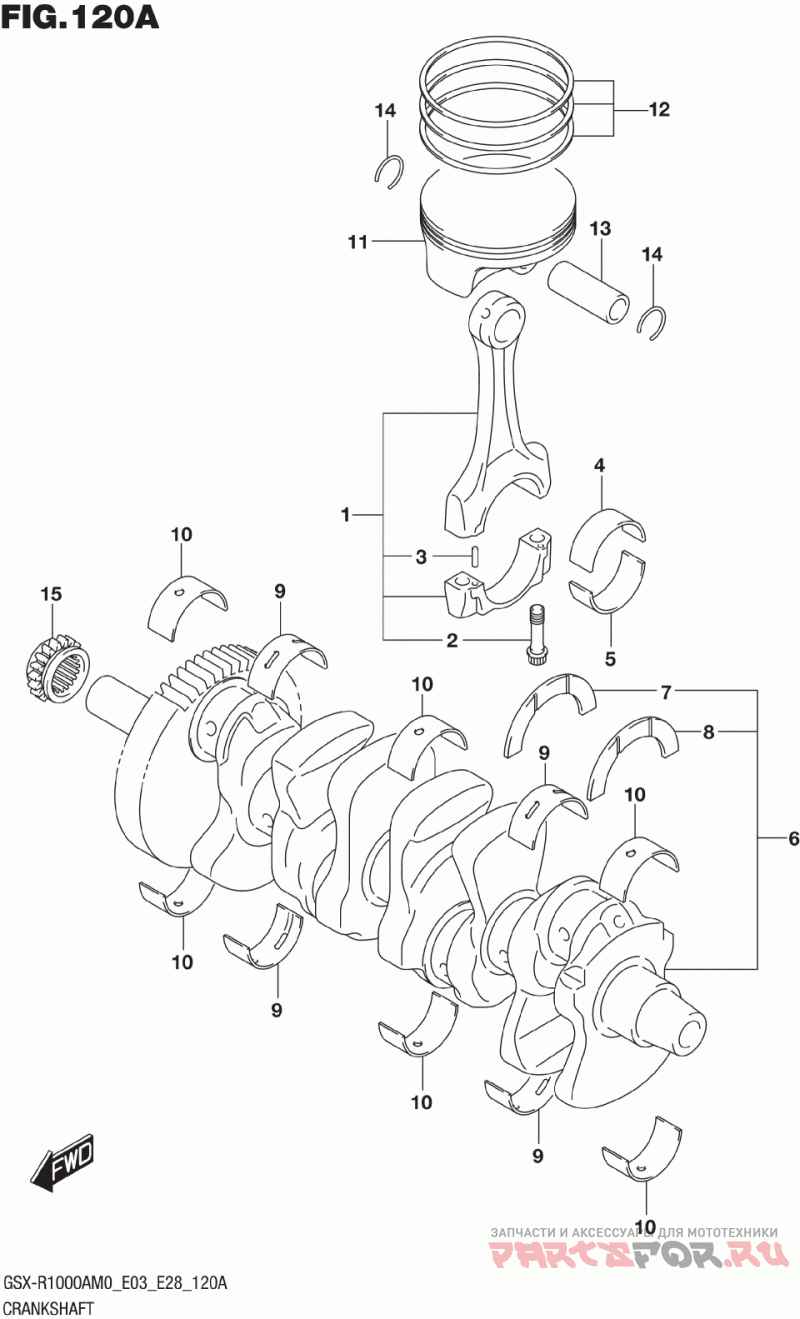

Коленвал

Suzuki (Америка) GSX,R1000

Suzuki (Америка)
#oem кодцена
1
12160-17K00
Шатун
10-1
12229-17K10-0A0
BEARING,CRANKSHAFT
10-2
12229-17K10-0B0
BEARING,CRANKSHAFT
10-3
12229-17K10-0C0
BEARING,CRANKSHAFT
10-4
12229-17K10-0D0
BEARING,CRANKSHAFT
10-5
12229-17K10-0E0
BEARING,CRANKSHAFT
11
12111-17K00-0F0
Поршень
12
12140-17K00
RING SET,PISTON
13
12151-17K00
PIN,PISTON
14
12152-17K01
CIRCLIP,PISTON PIN
15
12731-47H00
SPROCKET,CAM CHAIN DRIVE (NT: 7)
2
12163-17K00
.BOLT,CONNROD
3
04221-03059
Палец
4-1
12164-17K00-0A0
BEARING,CRANK PIN UPPER (GREEN)
4-2
12164-17K00-0B0
BEARING,CRANK PIN UPPER (BLACK)
4-3
12164-17K00-0C0
BEARING,CRANK PIN UPPER (BROWN)
4-4
12164-17K00-0D0
BEARING,CRANK PIN UPPER (YELLOW)
5-1
12164-17K10-0A0
BEARING,CRANK PIN LOWER
5-2
12164-17K10-0B0
BEARING,CRANK PIN LOWER
5-3
12164-17K10-0C0
BEARING,CRANK PIN LOWER
5-4
12164-17K10-0D0
BEARING,CRANK PIN LOWER
6
12000-17870
CRANKSHAFT SET
7
12228-48B00-0B0
BEARING,CRANK THRUST
8-1
12228-48B00-0C0
BEARING,CRANK THRUST
8-2
12228-48B00-0D0
BEARING,CRANK THRUST
8-3
12228-48B00-0E0
BEARING,CRANK THRUST
8-4
12228-48B00-0F0
BEARING,CRANK THRUST
8-5
12228-48B00-0G0
BEARING,CRANK THRUST
8-6
12228-48B00-0H0
BEARING,CRANK THRUST
8-7
12228-48B00-0E0
BEARING,CRANK THRUST
9-1
12229-17K00-0A0
BEARING,CRANKSHAFT
9-2
12229-17K00-0B0
BEARING,CRANKSHAFT
9-3
12229-17K00-0C0
BEARING,CRANKSHAFT
9-4
12229-17K00-0D0
BEARING,CRANKSHAFT
9-5
12229-17K00-0E0
BEARING,CRANKSHAFT
7
12228-48B00-0E0
BEARING,CRANK THRUST (GREEN)
8-1
12228-48B00-0B0
BEARING,CRANK THRUST (BROWN)
8-2
12228-48B00-0C0
BEARING,CRANK THRUST (RED)
8-3
12228-48B00-0D0
BEARING,CRANK THRUST (YELLOW)
8-4
12228-48B00-0E0
BEARING,CRANK THRUST (GREEN)
8-5
12228-48B00-0F0
BEARING,CRANK THRUST (BLUE)
8-6
12228-48B00-0G0
BEARING,CRANK THRUST (ORANGE)
8-7
12228-48B00-0H0
BEARING,CRANK THRUST (BLACK)
