Набор прокладок

Suzuki (Америка) DR,Z400S,SM

Suzuki (Америка)
#oem кодцена
1
11401-29883

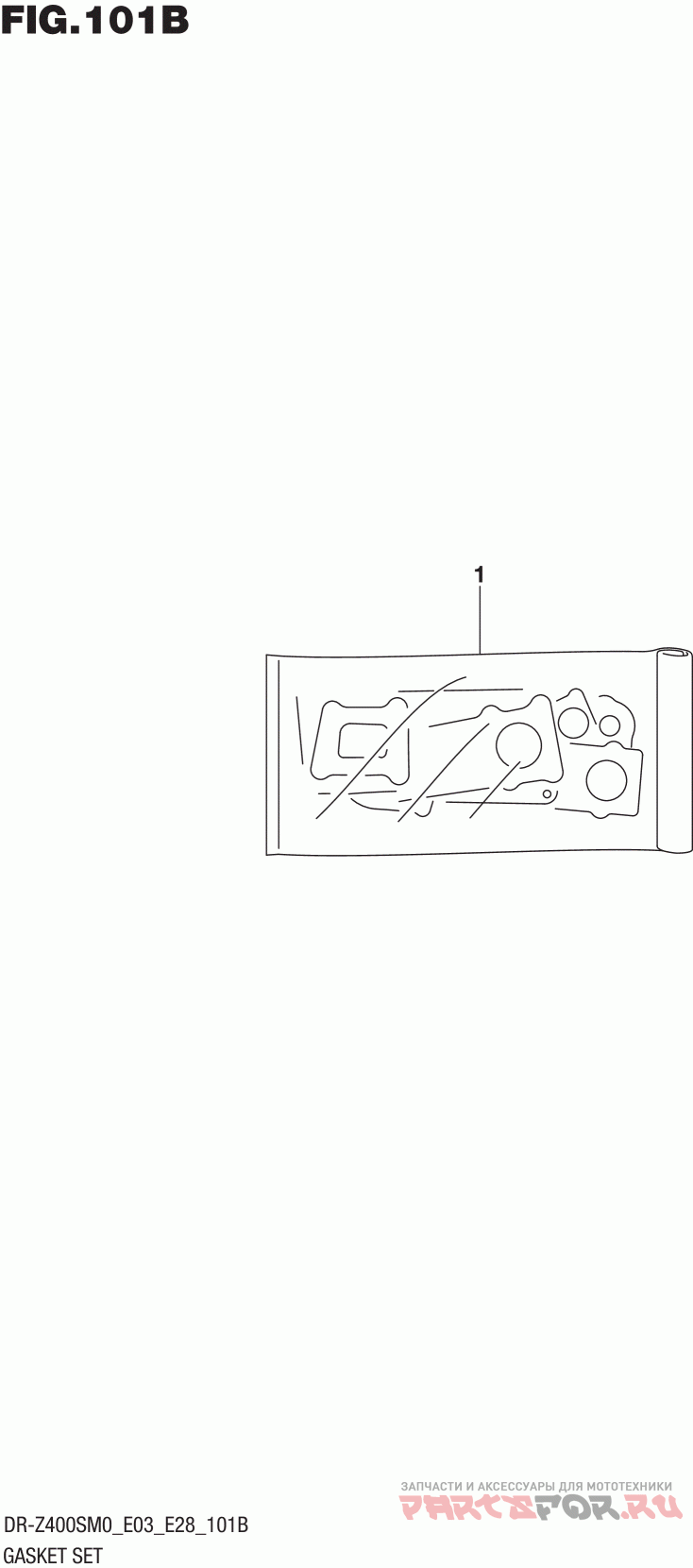

GASKET SET (OPT)
10
11191-27E00
WASHER,CYL HEAD COVER (L:5.5) (NOT ILLUSTRATED)
11
09280-11005
O RING (D:2.4,ID:11) (NOT ILLUSTRATED)
12
09280-13004
O RING (D:1.9,ID:13) (NOT ILLUSTRATED)
13
09280-17003
O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
14
09280-33004
O RING (D:3.1,ID:32.7) (NOT ILLUSTRATED)
15
09280-54001
O RING (D:2.4,ID:52.6) (NOT ILLUSTRATED)
16
09280-71008
O RING (D:2.6,ID:67.1) (NOT ILLUSTRATED)
2
11141-29F01
GASKET,CYLINDER HEAD (NOT ILLUSTRATED)
3
11173-29F00
GASKET,CYL HEAD COVER (NOT ILLUSTRATED)
4
11241-29F11
GASKET,CYLINDER (NOT ILLUSTRATED)
5
11482-29F00
GASKET,CLUTCH COVER (NOT ILLUSTRATED)
6
11483-29F00
GASKET,MAGNETO COVER (NOT ILLUSTRATED)
7
11484-29F00
O RING,CLUTCH COVER OUTER (NOT ILLUSTRATED)
8
12837-24A10
GASKET,TENSIONER ADJUSTER (NOT ILLUSTRATED)
9
14181-29E02
GASKET,EXH PIPE (NOT ILLUSTRATED)
