Fuel tank (dl650a:e33) для мотоциклов Suzuki (Америка) DL650A,XA (2020)

Москва и регионы России

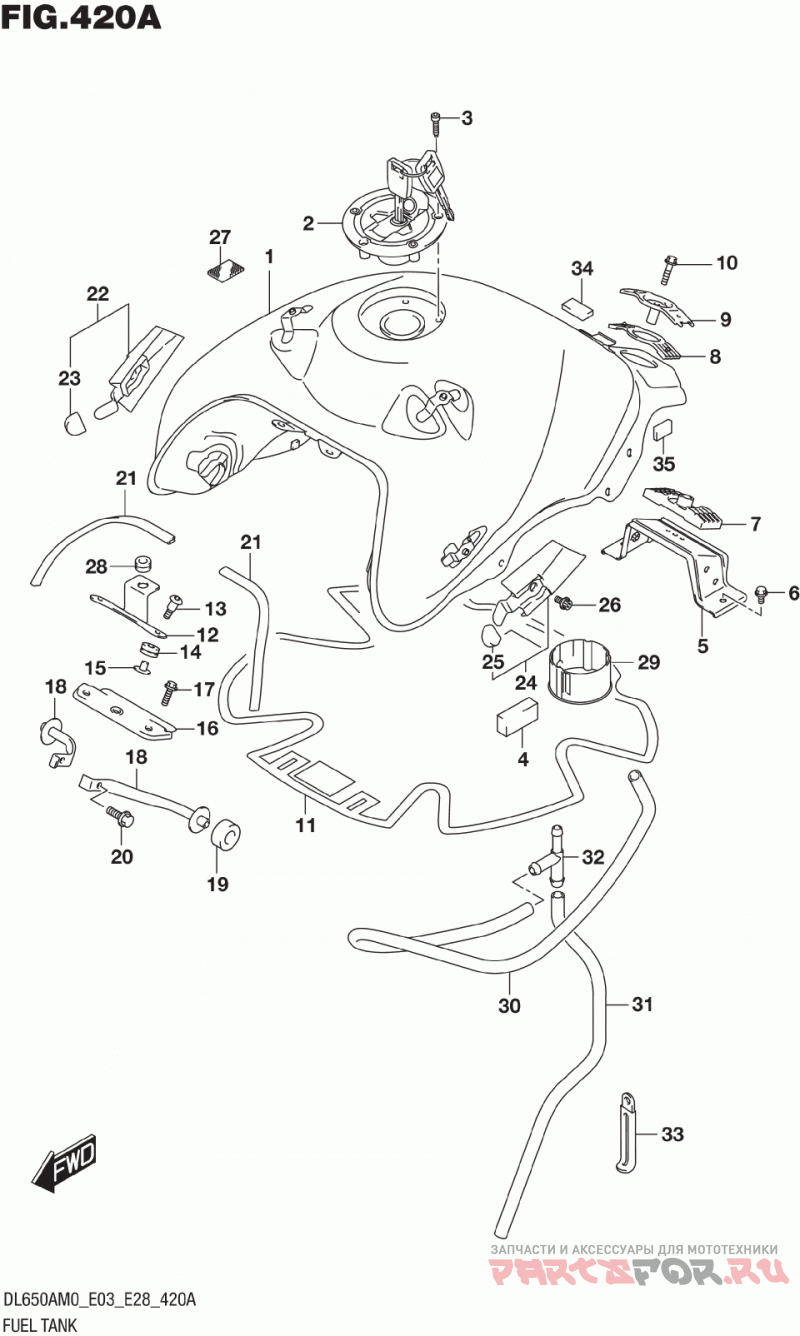

Fuel tank (dl650a:e33)

Suzuki (Америка) DL650A,XA

Fuel tank (dl650a:e33)

#

oem код

название

цена

1-1

44100-28K00-YUD

TANK ASSY,FUEL (GRAY) (BODY COLOR:YUD)

TANK ASSY,FUEL (GRAY) (BODY COLOR:YUD)

1-2

44100-28K00-YVB

TANK ASSY,FUEL (BLACK) (BODY COLOR:YVB)

TANK ASSY,FUEL (BLACK) (BODY COLOR:YVB)

1-3

44100-28K00-YWW

TANK ASSY,FUEL (WHITE) (BODY COLOR:YWW)

TANK ASSY,FUEL (WHITE) (BODY COLOR:YWW)

10

Болт

Болт

11

SHIELD,FUEL TANK CENTER

SHIELD,FUEL TANK CENTER

12

BRACKET,FRONT COVER

BRACKET,FRONT COVER

13

SCREW (6X25)

SCREW (6X25)

14

CUSHION,FUEL TANK,FR

CUSHION,FUEL TANK,FR

15

SPACER,FUEL TANK,FR

SPACER,FUEL TANK,FR

16

BRACKET,FUEL TANK FRONT

BRACKET,FUEL TANK FRONT

17

Болт (6X20)

Болт (6X20)

18

BRACKET,FRONT SIDE

BRACKET,FRONT SIDE

19

CUSHION,FRONT SIDE BRKT

CUSHION,FRONT SIDE BRKT

2

CAP SET, FUEL TANK

CAP SET, FUEL TANK

20

Болт

Болт

21

MOLDING,FUEL TANK

MOLDING,FUEL TANK

22

BRACKET,FUEL TANK COVER RH

BRACKET,FUEL TANK COVER RH

23

.CUSHION

.CUSHION

24

BRACKET,FUEL TANK COVER LH

BRACKET,FUEL TANK COVER LH

25

.CUSHION

.CUSHION

26

Болт

Болт

27

FASTENER,COWLING (20X15X0.8)

FASTENER,COWLING (20X15X0.8)

28

Подушка

Подушка

29

VESSEL,FUEL TANK INNER

VESSEL,FUEL TANK INNER

3

BOLT,FUEL TANK FILLER CAP

BOLT,FUEL TANK FILLER CAP

30

HOSE,FUEL TANK DRAIN NO.1

HOSE,FUEL TANK DRAIN NO.1

31

HOSE,FUEL TANK DRAIN NO.2

HOSE,FUEL TANK DRAIN NO.2

32

3 WAY

3 WAY

33

CLAMP (L:80)

CLAMP (L:80)

34

CUSHION,SEAT TAIL COV LWR RR

CUSHION,SEAT TAIL COV LWR RR

35

CUSHION,FRAME COVER FR RR

CUSHION,FRAME COVER FR RR

4

CUSHION,FUEL TANK SIDE

CUSHION,FUEL TANK SIDE

5

BRACKET,FUEL TANK REAR

BRACKET,FUEL TANK REAR

6

Болт

Болт

7

CUSHION,FUEL TANK RR LWR

CUSHION,FUEL TANK RR LWR

8

CUSHION,FUEL TANK RR UPR

CUSHION,FUEL TANK RR UPR

9

BRACKET,FUEL TANK REAR UP

BRACKET,FUEL TANK REAR UP
