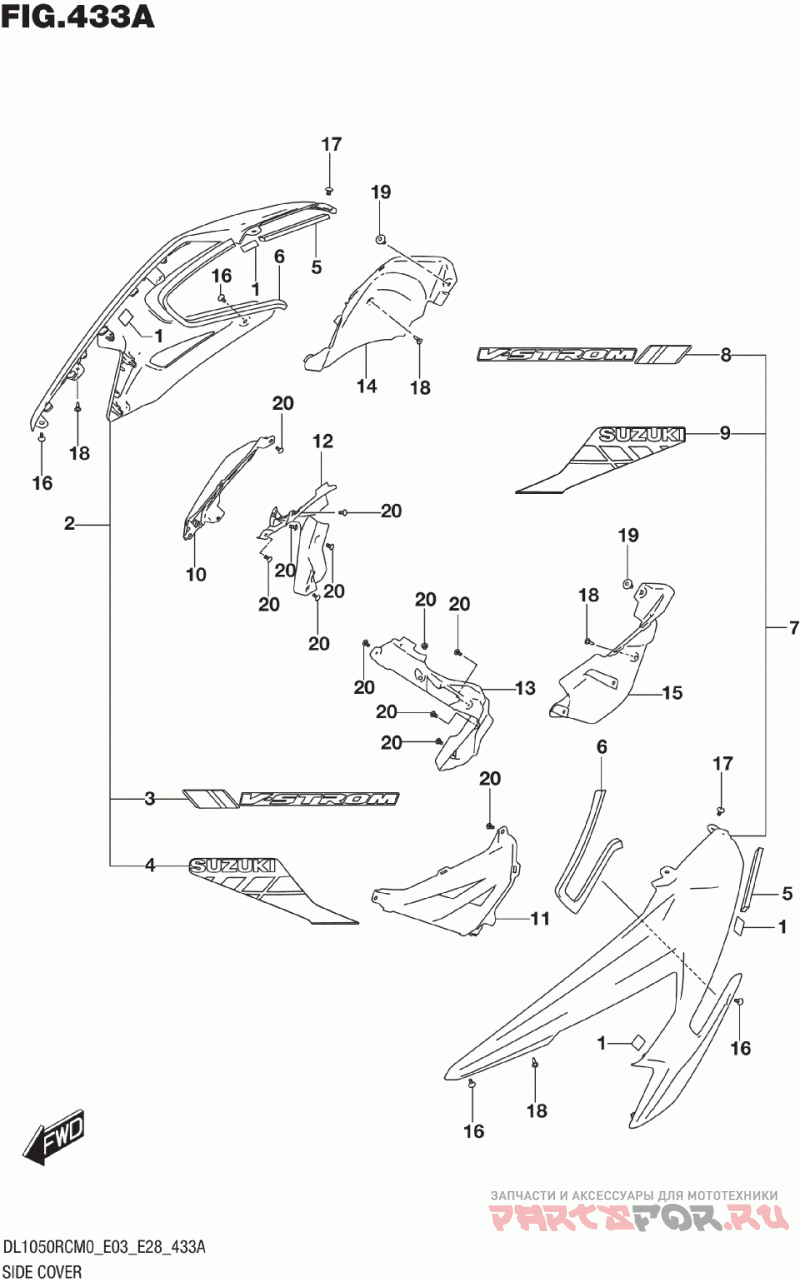

Side cover (dl1050rc)

Suzuki (Америка) DL1050,XT,XTA

Suzuki (Америка)
#oem кодцена
1
44572-13G10
FASTENER,RR COMB (33X25)
10
94441-06L00
COVER,SIDE NO.2 RH
11
94451-06L00
COVER,SIDE NO.2 LH
12
94463-06L00
COVER,SIDE INNER LWR RH
13
94464-06L00
COVER,SIDE INNER LWR LH
14
94471-06L00
COVER,SIDE INNER UPR RH
15
94481-06L00
COVER,SIDE INNER UPR LH
16
09139-05091
SCREW (5X13)
17
09139-06172
SCREW (6X10)
18
09409-06314-5PK
CLIP (5.9X20.5)
19
09409-07333
CLIP (D:2.4,ID:23.7)
2-1
94420-06L00-YU1
COVER,SIDE RH (YELLOW) (BODY COLOR:YU1)
2-2
94420-06L00-YVB
COVER,SIDE RH (BLACK) (BODY COLOR:YVB)
2-3
94420-06L00-QRE
COVER,SIDE RH (ORANGE) (BODY COLOR:B1F)
20
03541-0512B
Винт
3-1
68271-06L00-B4K
EMBLEM,SIDE COVER RH (BODY COLOR:YU1)
3-2
68271-06L00-B4L
EMBLEM,SIDE COVER RH (BODY COLOR:YVB)
3-3
68271-06L00-B4M
EMBLEM,SIDE COVER RH (BODY COLOR:B1F)
4-1
68275-06L00-B4K
TAPE,COVER SIDE RH (BODY COLOR:YU1)
4-2
68275-06L00-B4L
TAPE,COVER SIDE RH (BODY COLOR:YVB)
4-3
68275-06L00-B4M
TAPE,COVER SIDE RH (BODY COLOR:B1F)
5
94425-06L00
CUSHION,SIDE COVER NO.1
6
94426-06L00
CUSHION,SIDE COVER NO.2
7-1
94430-06L00-YU1
COVER,SIDE LH (YELLOW) (BODY COLOR:YU1)
7-2
94430-06L00-YVB
COVER,SIDE LH (BLACK) (BODY COLOR:YVB)
7-3
94430-06L00-QRE
COVER,SIDE LH (ORANGE) (BODY COLOR:B1F)
8-1
68281-06L00-B4K
EMBLEM,SIDE COVER LH (BODY COLOR:YU1)
8-2
68281-06L00-B4L
EMBLEM,SIDE COVER LH (BODY COLOR:YVB)
8-3
68281-06L00-B4M
EMBLEM,SIDE COVER LH (BODY COLOR:B1F)
9-1
68285-06L00-B4K
TAPE,COVER SIDE LH (BODY COLOR:YU1)
9-2
68285-06L00-B4L
TAPE,COVER SIDE LH (BODY COLOR:YVB)
9-3
68285-06L00-B4M
TAPE,COVER SIDE LH (BODY COLOR:B1F)
