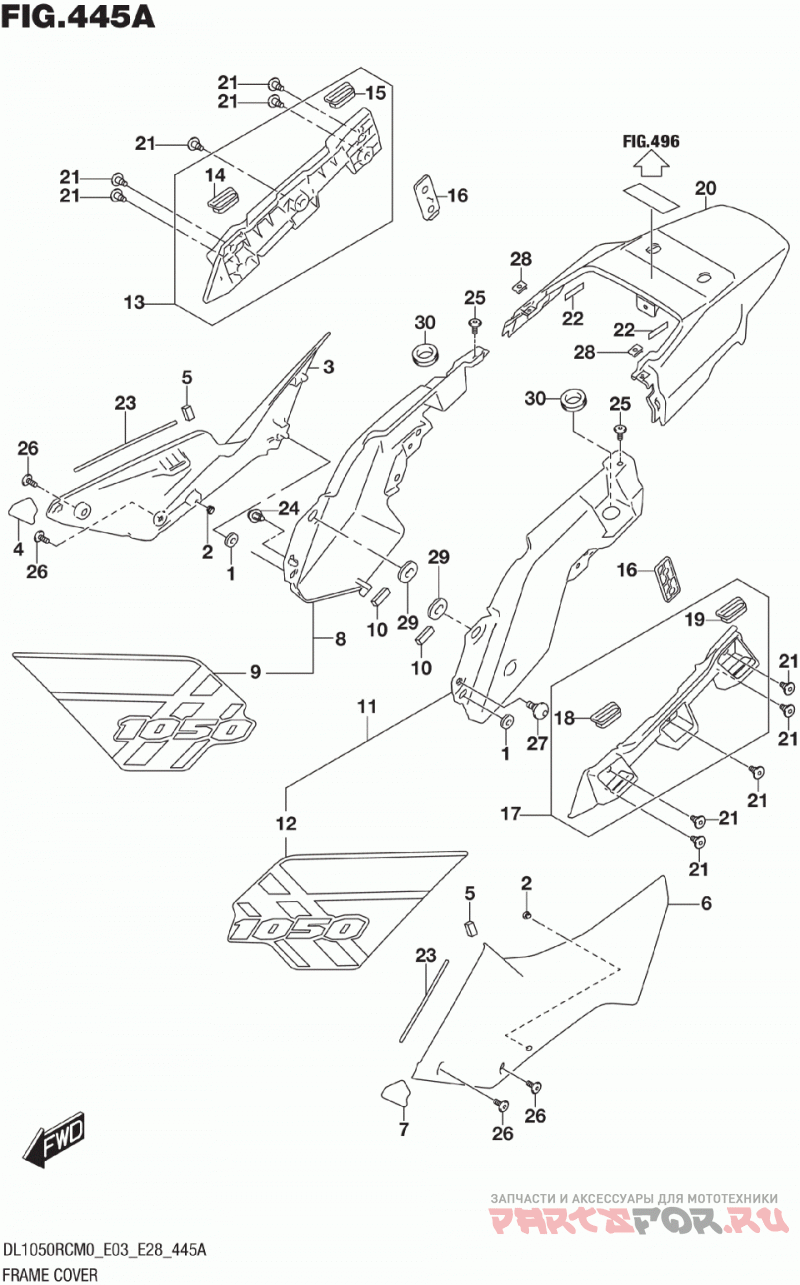

Frame cover (dl1050rc) для мотоциклов Suzuki (Америка) DL1050,XT,XTA (2020)

Москва и регионы России

Frame cover (dl1050rc)

Suzuki (Америка) DL1050,XT,XTA

Frame cover (dl1050rc)

#

oem код

название

цена

1

CUSHION,FUEL TANK COVER SIDE

CUSHION,FUEL TANK COVER SIDE

10

CUSHION,FRM COV SIDE NO.5

CUSHION,FRM COV SIDE NO.5

11-1

47350-06L00-YU1

COVER,FRAME LH (YELLOW) (BODY COLOR:YU1)

COVER,FRAME LH (YELLOW) (BODY COLOR:YU1)

11-2

47350-06L00-YVB

COVER,FRAME LH (BLACK) (BODY COLOR:YVB)

COVER,FRAME LH (BLACK) (BODY COLOR:YVB)

11-3

47350-06L00-QRE

COVER,FRAME LH (ORANGE) (BODY COLOR:B1F)

COVER,FRAME LH (ORANGE) (BODY COLOR:B1F)

12-1

68145-06L00-B4K

TAPE,FRAME COVER LH (BODY COLOR:YU1)

TAPE,FRAME COVER LH (BODY COLOR:YU1)

12-2

68145-06L00-B4L

TAPE,FRAME COVER LH (BODY COLOR:YVB)

TAPE,FRAME COVER LH (BODY COLOR:YVB)

12-3

68145-06L00-B4M

TAPE,FRAME COVER LH (BODY COLOR:B1F)

TAPE,FRAME COVER LH (BODY COLOR:B1F)

13

BRKT,SIDE CASE UPR RH

BRKT,SIDE CASE UPR RH

14

BUSH,SIDE CASE BRKT FR RH

BUSH,SIDE CASE BRKT FR RH

15

BUSH,SIDE CASE BRKT RR RH

BUSH,SIDE CASE BRKT RR RH

16

SPACER,FRAME COVER

SPACER,FRAME COVER

17

BRKT,SIDE CASE UPR LH

BRKT,SIDE CASE UPR LH

18

BUSH,SIDE CASE BRKT FR LH

BUSH,SIDE CASE BRKT FR LH

19

BUSH,SIDE CASE BRKT RR LH

BUSH,SIDE CASE BRKT RR LH

2

CUSHION, SEAT MOUNT

CUSHION, SEAT MOUNT

20-1

47711-06L00-YU1

COVER,FRAME CTR (YELLOW) (BODY COLOR:YU1)

COVER,FRAME CTR (YELLOW) (BODY COLOR:YU1)

20-2

47711-06L00-YVB

COVER,FRAME CTR (BLACK) (BODY COLOR:YVB)

COVER,FRAME CTR (BLACK) (BODY COLOR:YVB)

20-3

47711-06L00-QRE

COVER,FRAME CTR (ORANGE) (BODY COLOR:B1F)

COVER,FRAME CTR (ORANGE) (BODY COLOR:B1F)

21

Винт

Винт

22

TAPE,ABS UNIT HOLDER

TAPE,ABS UNIT HOLDER

23

CUSHION,FRAME COVER

CUSHION,FRAME COVER

24

Зажим

Зажим

25

SCREW (5X13)

SCREW (5X13)

26

SCREW (5X13)

SCREW (5X13)

27

Винт (6x16)

Винт (6x16)

28

NUT (M5)

NUT (M5)

29

Подушка

Подушка

3-1

47111-06L00-YU1

COVER,FRAME FRONT RH (YELLOW) (BODY COLOR:YU1)

COVER,FRAME FRONT RH (YELLOW) (BODY COLOR:YU1)

3-2

COVER,FRAME FRONT RH (BODY COLOR:YVB)

COVER,FRAME FRONT RH (BODY COLOR:YVB)

3-3

47111-06L00-YUH

COVER,FRAME FRONT RH (WHITE) (BODY COLOR:B1F)

COVER,FRAME FRONT RH (WHITE) (BODY COLOR:B1F)

30

CUSHION (20X32X9)

CUSHION (20X32X9)

4

PROTECTOR,FRAME COVER RH (BODY COLOR:YU1,B1F)

PROTECTOR,FRAME COVER RH (BODY COLOR:YU1,B1F)

5

CUSHION,FRAME COVER FR RR

CUSHION,FRAME COVER FR RR

6-1

47211-06L00-YU1

COVER,FRAME FRONT LH (YELLOW) (BODY COLOR:YU1)

COVER,FRAME FRONT LH (YELLOW) (BODY COLOR:YU1)

6-2

COVER,FRAME FRONT LH (BODY COLOR:YVB)

COVER,FRAME FRONT LH (BODY COLOR:YVB)

6-3

47211-06L00-YUH

COVER,FRAME FRONT LH (WHITE) (BODY COLOR:B1F)

COVER,FRAME FRONT LH (WHITE) (BODY COLOR:B1F)

7

PROTECTOR,FRAME COVER LH (BODY COLOR:YU1,B1F)

PROTECTOR,FRAME COVER LH (BODY COLOR:YU1,B1F)

8-1

47310-06L00-YU1

COVER,FRAME RH (YELLOW) (BODY COLOR:YU1)

COVER,FRAME RH (YELLOW) (BODY COLOR:YU1)

8-2

47310-06L00-YVB

COVER,FRAME RH (BLACK) (BODY COLOR:YVB)

COVER,FRAME RH (BLACK) (BODY COLOR:YVB)

8-3

47310-06L00-QRE

COVER,FRAME RH (ORANGE) (BODY COLOR:B1F)

COVER,FRAME RH (ORANGE) (BODY COLOR:B1F)

9-1

68135-06L00-B4K

TAPE,FRAME COVER RH (BODY COLOR:YU1)

TAPE,FRAME COVER RH (BODY COLOR:YU1)

9-2

68135-06L00-B4L

TAPE,FRAME COVER RH (BODY COLOR:YVB)

TAPE,FRAME COVER RH (BODY COLOR:YVB)

9-3

68135-06L00-B4M

TAPE,FRAME COVER RH (BODY COLOR:B1F)

TAPE,FRAME COVER RH (BODY COLOR:B1F)
