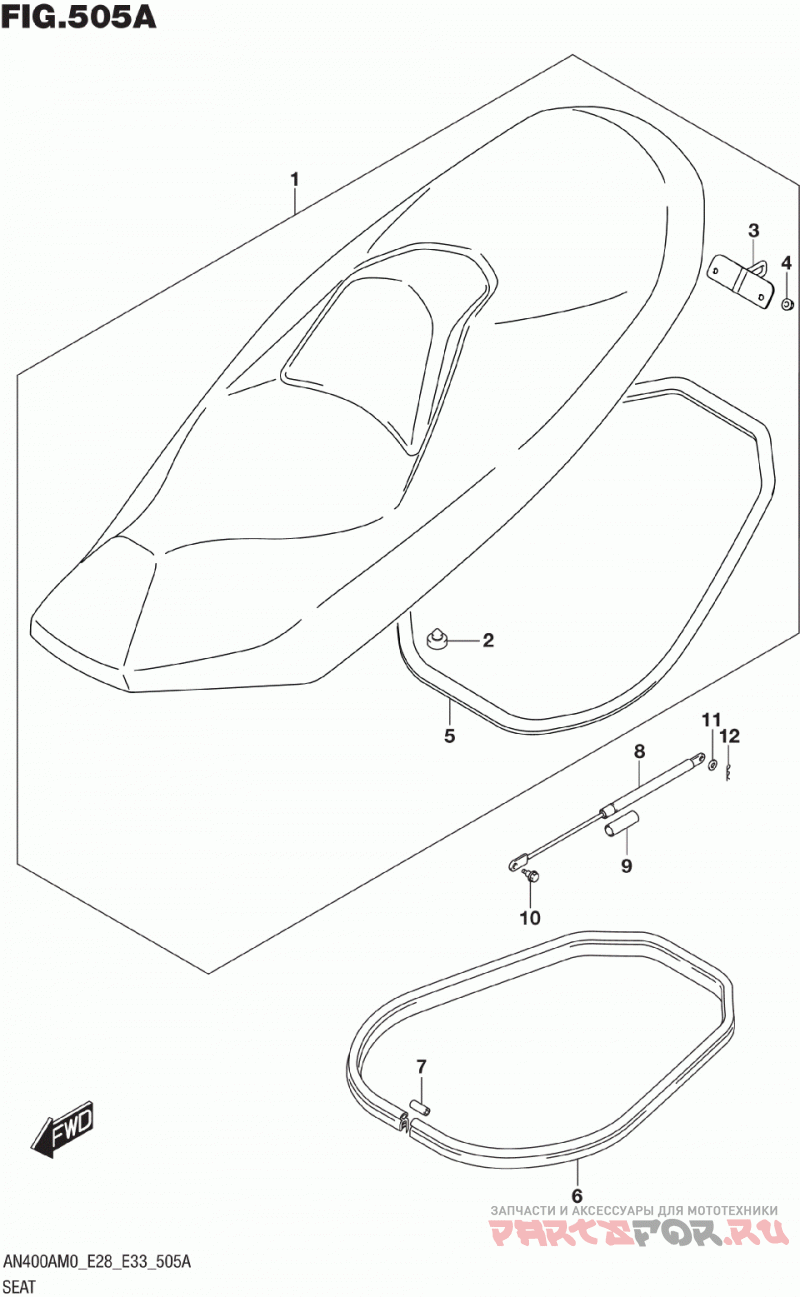

Сиденье
Suzuki (Америка) AN400
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 45100-19K02-B07 SEAT ASSY (BODY COLOR:YKV,YWW) | SEAT ASSY (BODY COLOR:YKV,YWW) | |
10 | 09111-06071 BOLT (6X16) | BOLT (6X16) | |
11 | 08322-0108A WASHER,LOCK | WASHER,LOCK | |
12 | 09385-08003 Штифт | Штифт | |
2 | 09321-10002 .CUSHION,FRONT | .CUSHION,FRONT | |
4 | 45210-05H10 .STRIKER, SEAT LOCK | .STRIKER, SEAT LOCK | |
5 | 08316-1006A Гайка | Гайка | |
6 | 45211-33G60 MOLDING, SEAT | MOLDING, SEAT | |
7 | 09351-30001-600 HOSE (3X5X600) | HOSE (3X5X600) | |
8 | 45270-19K00 DAMPER ASSY, SEAT | DAMPER ASSY, SEAT | |
9 | 09352-13162-600 HOSE (13.5X16.5X600) | HOSE (13.5X16.5X600) |
