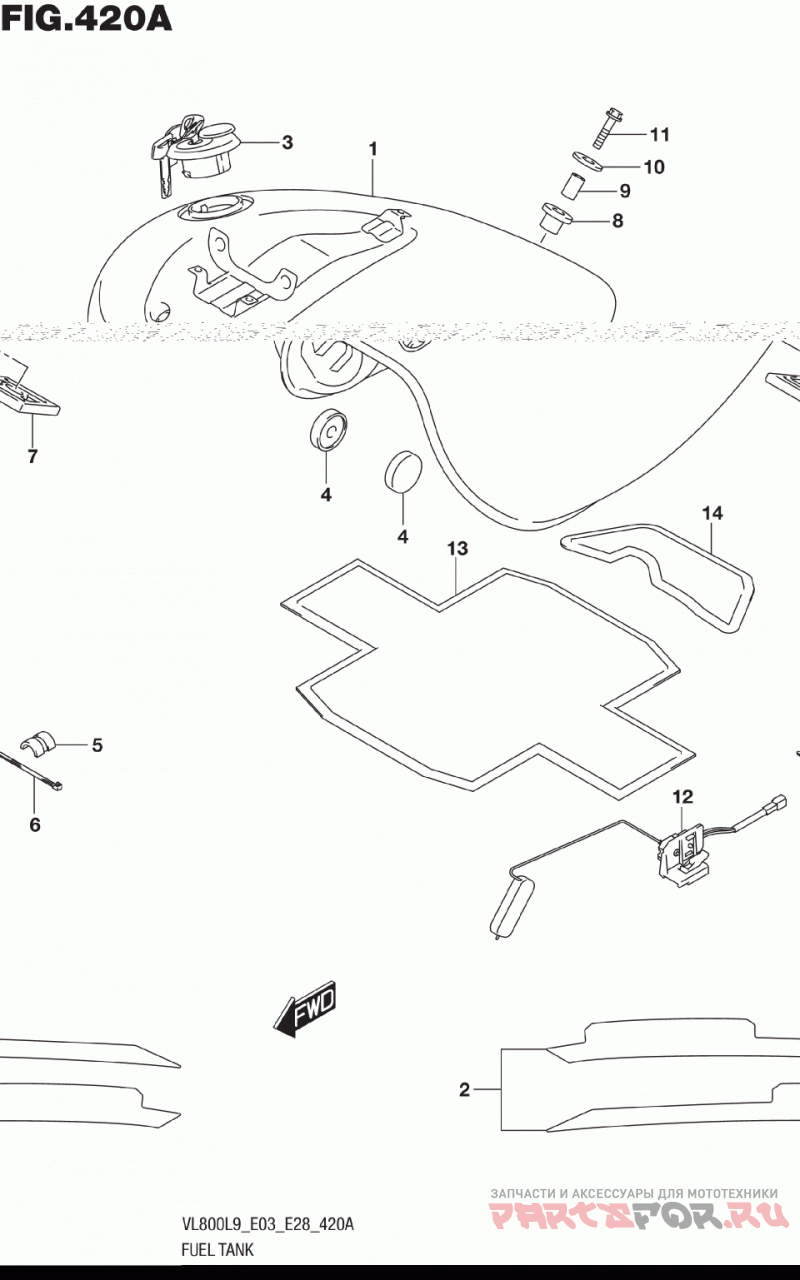

Fuel tank (vl800l9 e03)
Suzuki (Америка) VL800
| # | oem код | название | цена |
|---|---|---|---|
3 | 44200-41830 CAP SET, FUEL TANK | CAP SET, FUEL TANK | |
4 | 09329-10007 Подушка | Подушка | |
5 | 44541-14F10 CUSHION, SIDE | CUSHION, SIDE | |
6 | 09407-25402 CLAMP (L:250) | CLAMP (L:250) | |
7 | 44542-41F00 CUSHION, REAR LOWER | CUSHION, REAR LOWER | |
8 | 44541-41F01 CUSHION, REAR UPPER | CUSHION, REAR UPPER | |
10 | 09160-08146 WASHER (8.5X33X1.5) | WASHER (8.5X33X1.5) | |
11 | 01550-0835A Болт | Болт | |
12 | 34810-41F11 GUAGE ASSY, FUEL TANK | GUAGE ASSY, FUEL TANK | |
13 | 44192-39G00 SHIELD, HEAT NO.1 | SHIELD, HEAT NO.1 | |
14 | 44191-43H00 SHIELD, HEAT NO.2 | SHIELD, HEAT NO.2 |
