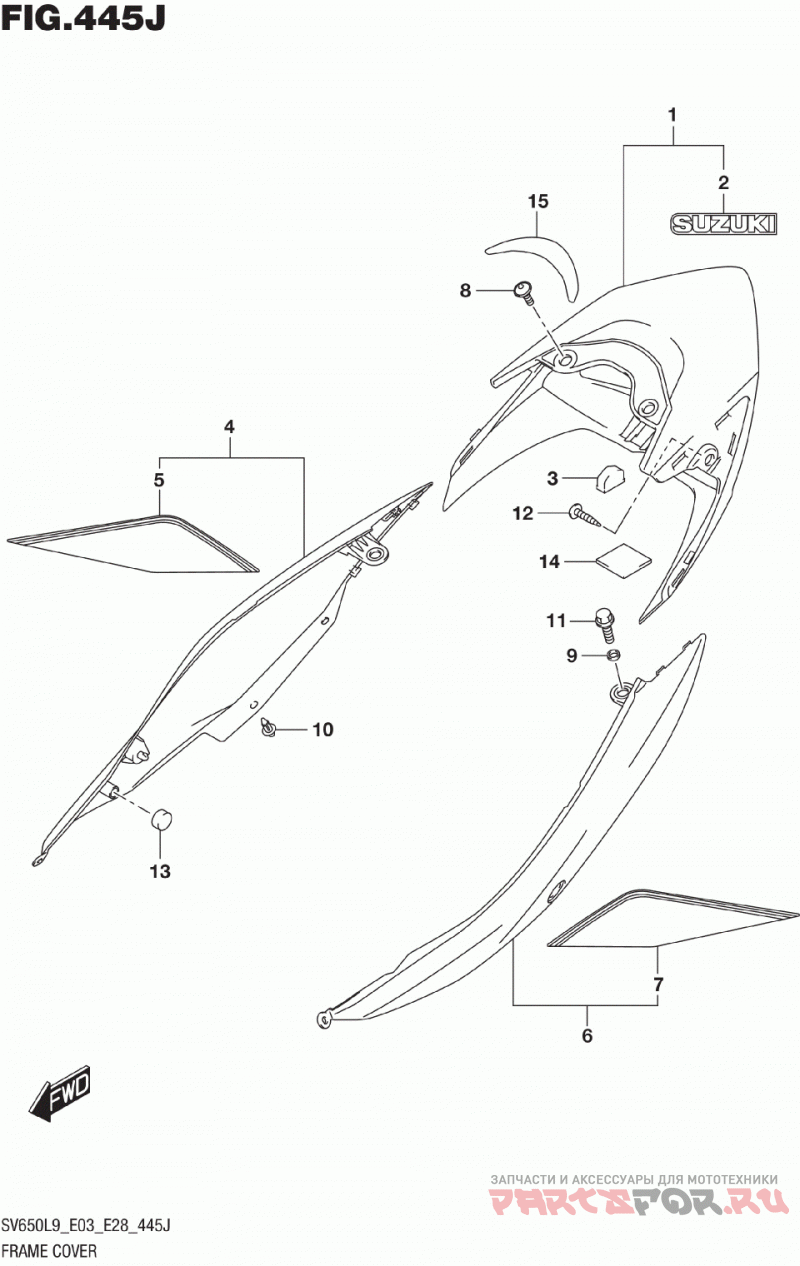

Frame cover (sv650xal9 e28)
Suzuki (Америка) SV650,A,XA
| # | oem код | название | цена |
|---|---|---|---|
3 | 47315-18K00 CUSHION, FRAME COVER CTR | CUSHION, FRAME COVER CTR | |
8 | 09139-05074 BOLT (5X13) | BOLT (5X13) | |
9 | 09180-08052 SPACER (8.5X12X2.5) | SPACER (8.5X12X2.5) | |
10 | 09409-06314-5PK Зажим | Зажим | |
11 | 01550-0812A Болт | Болт | |
12 | 03541-0510A Винт | Винт | |
13 | 09329-14002 Подушка | Подушка | |
14 | 33652-20C00 CUSHION (CUT AS REQUIRED) | CUSHION (CUT AS REQUIRED) | |
15 | 47312-18K00 TAPE, FRAME COVER REAR CENTER | TAPE, FRAME COVER REAR CENTER |
