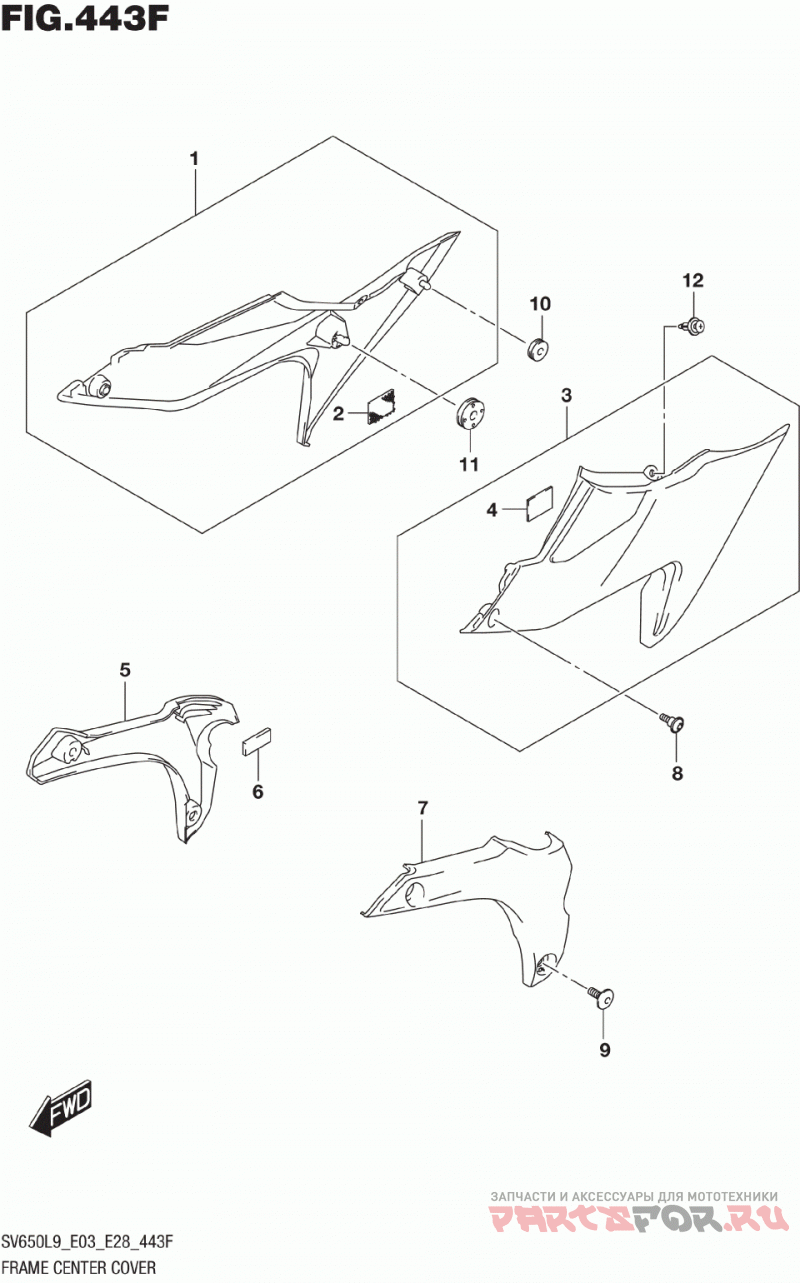

Frame center cover (sv650xal9 e33)
Suzuki (Америка) SV650,A,XA
| # | oem код | название | цена |
|---|---|---|---|
2 | 44572-13G10 .FASTENER | .FASTENER | |
4 | 44572-13G10 .FASTENER | .FASTENER | |
5 | 47611-18K00-YKV COVER, FRAME LOWER RH (BLACK) | COVER, FRAME LOWER RH (BLACK) | |
6 | 47613-44H00 CUSHION, FRAME COVER LWR NO.2 | CUSHION, FRAME COVER LWR NO.2 | |
7 | 47711-18K00-YKV COVER, FRAME LOWER LH (BLACK) | COVER, FRAME LOWER LH (BLACK) | |
8 | 09139-05504 SCREW (5X16) | SCREW (5X16) | |
9 | 47915-31J00 Винт (6x16) | Винт (6x16) | |
10 | 09320-06504 Подушка | Подушка | |
11 | 09320-08028 Подушка | Подушка | |
12 | 09409-06322-5PK Зажим | Зажим |
