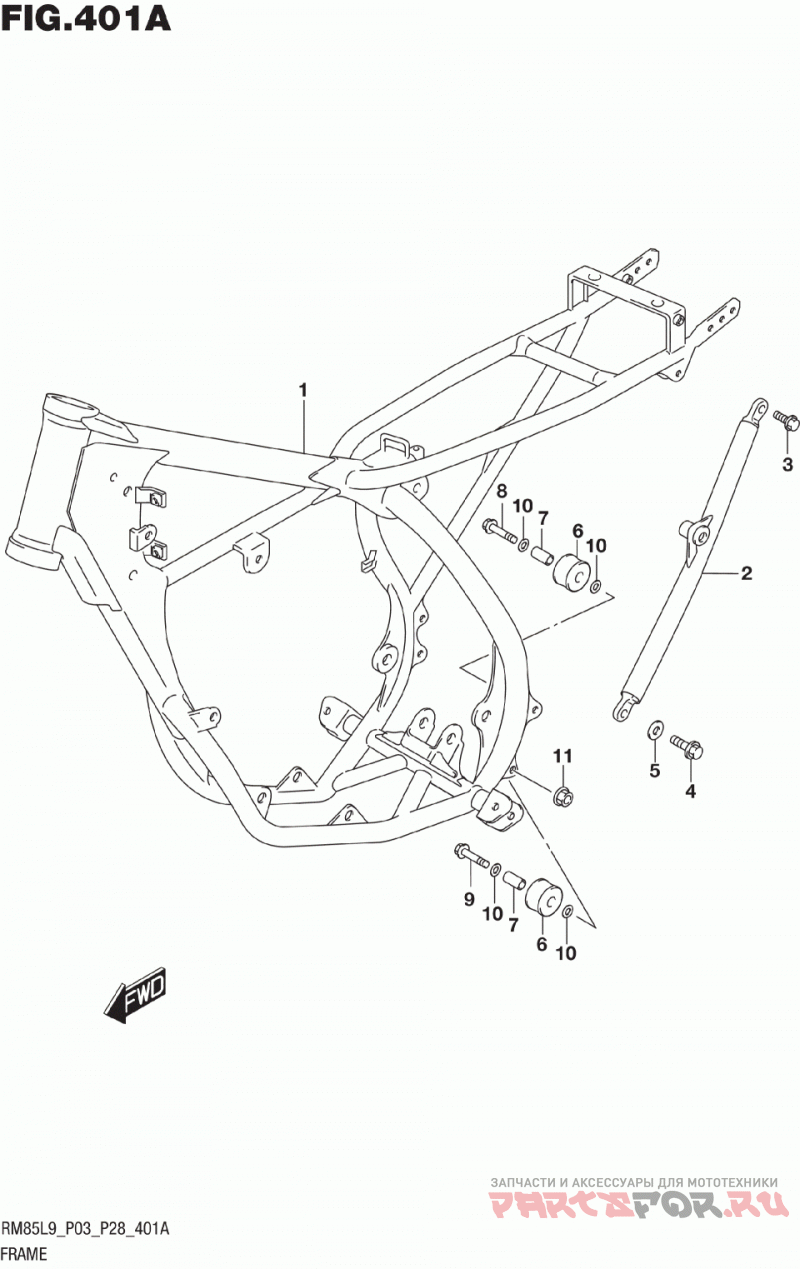

Рама
Suzuki (Америка) RM85
| # | oem код | название | цена |
|---|---|---|---|
1 | 41100-03BB1-YU8 FRAME (GRAY) | FRAME (GRAY) | |
2 | 41670-02B30-YU8 TUBE, FRAME SIDE LH (GRAY) | TUBE, FRAME SIDE LH (GRAY) | |
3 | 09100-08274 BOLT (8X22) (UPPER) | BOLT (8X22) (UPPER) | |
4 | 09100-08284 BOLT (8X16) (LOWER) | BOLT (8X16) (LOWER) | |
5 | 09160-08120 WASHER (8.5X18X2) (LOWER) | WASHER (8.5X18X2) (LOWER) | |
6 | 43911-35B00 ROLLER, CHAIN CONTROL | ROLLER, CHAIN CONTROL | |
7 | 09180-08214 SPACER (8.6X12.2X25.5) | SPACER (8.6X12.2X25.5) | |
8 | 09103-08178 BOLT (8X38) (UPPER) | BOLT (8X38) (UPPER) | |
9 | 09103-08339 BOLT (8X55) (LOWER) | BOLT (8X55) (LOWER) | |
10 | 09181-08167 SHIM (8X16X1) | SHIM (8X16X1) | |
11 | 08319-3108A Гайка | Гайка |
