Сцепление для мотоциклов Suzuki (Америка) GSX,S750 (2019)

Москва и регионы России

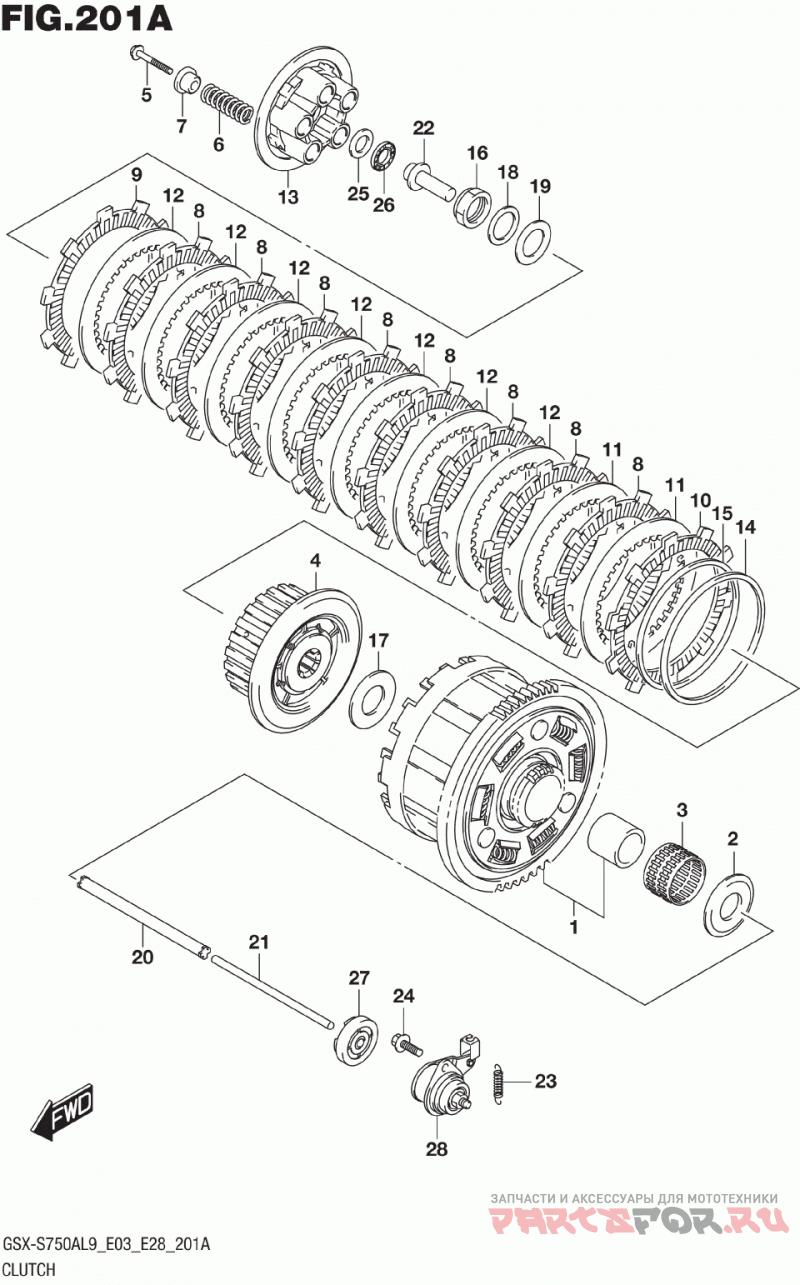

Сцепление

Suzuki (Америка) GSX,S750

Сцепление

#

oem код

название

цена

1

GEAR ASSY, PRIMARY DRIVEN (NT:78)

GEAR ASSY, PRIMARY DRIVEN (NT:78)

2

WASHER (25X54X2.4)

WASHER (25X54X2.4)

3

BEARING (35X40X29.8)

BEARING (35X40X29.8)

4

HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

5

BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

6

Пружина

Пружина

7

WASHER, CLUTCH SPRING

WASHER, CLUTCH SPRING

8

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

9

PLATE, CLUTCH DRIVE NO.2 (T:3.0)

PLATE, CLUTCH DRIVE NO.2 (T:3.0)

10

PLATE, CLUTCH DRIVE NO.3 (T:3.0)

PLATE, CLUTCH DRIVE NO.3 (T:3.0)

11

PLATE, CLUTCH DRIVEN NO.1 (T:1.6)

PLATE, CLUTCH DRIVEN NO.1 (T:1.6)

12

PLATE, CLUTCH DRIVEN NO.2 (T:2.0)

PLATE, CLUTCH DRIVEN NO.2 (T:2.0)

13

DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

14

SEAT, WAVE WASHER

SEAT, WAVE WASHER

15

WASHER, CLUTCH PLATE WAVE

WASHER, CLUTCH PLATE WAVE

16

Гайка

Гайка

17

WASHER (25X50X2.5)

WASHER (25X50X2.5)

18

Шайба

Шайба

19

SHIM (25X38X1)

SHIM (25X38X1)

20

Шток

Шток

21

ROD, CLUTCH PUSH LH

ROD, CLUTCH PUSH LH

22

PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

23

Пружина

Пружина

24

Болт

Болт

25

WASHER (15.5X28X1)

WASHER (15.5X28X1)

26

Подшипник (15x28x2)

Подшипник (15x28x2)

27

OIL SEAL (6X34X10.5)

OIL SEAL (6X34X10.5)

28

SCREW ASSY, CLUTCH RELEASE

SCREW ASSY, CLUTCH RELEASE
