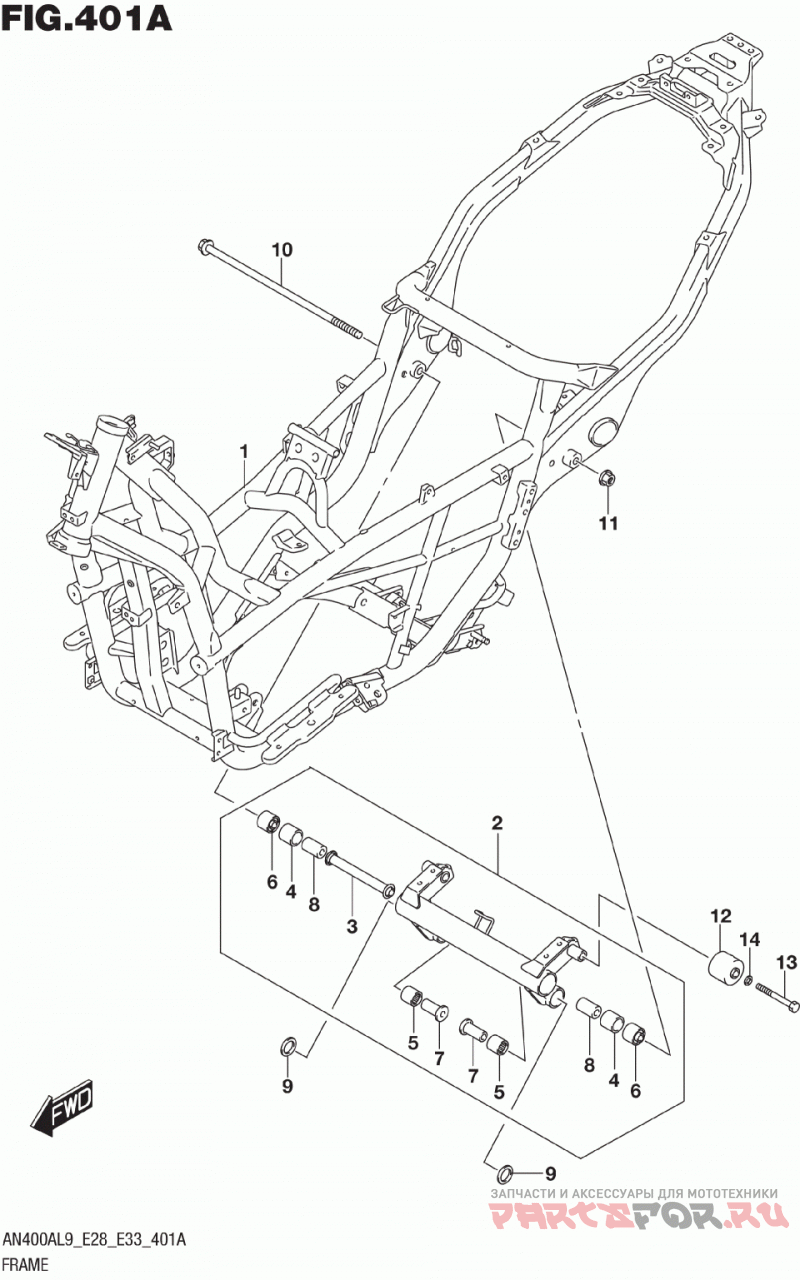

Рама
Suzuki (Америка) AN400A
| # | oem код | название | цена |
|---|---|---|---|
3 | 42610-05H00 .SPACER, BRACKET | .SPACER, BRACKET | |
4 | 09263-25063 .BEARING (25X33X30) | .BEARING (25X33X30) | |
5 | 09263-20064 .BEARING (20X27X26) | .BEARING (20X27X26) | |
6 | 09319-12065 .BUSH | .BUSH | |
7 | 41214-14F10 .SPACER, ENGINE | .SPACER, ENGINE | |
8 | 41213-14F00 .SPACER, BRACKET | .SPACER, BRACKET | |
9 | 09160-12044 WASHER (12.5X35X3.2) | WASHER (12.5X35X3.2) | |
10 | 09103-12086 BOLT (12X440) | BOLT (12X440) | |
11 | 08319-3112A Гайка | Гайка | |
12 | 41185-14F00 CUSHION, SWING STOP | CUSHION, SWING STOP | |
14 | 08322-0112B Шайба | Шайба |
