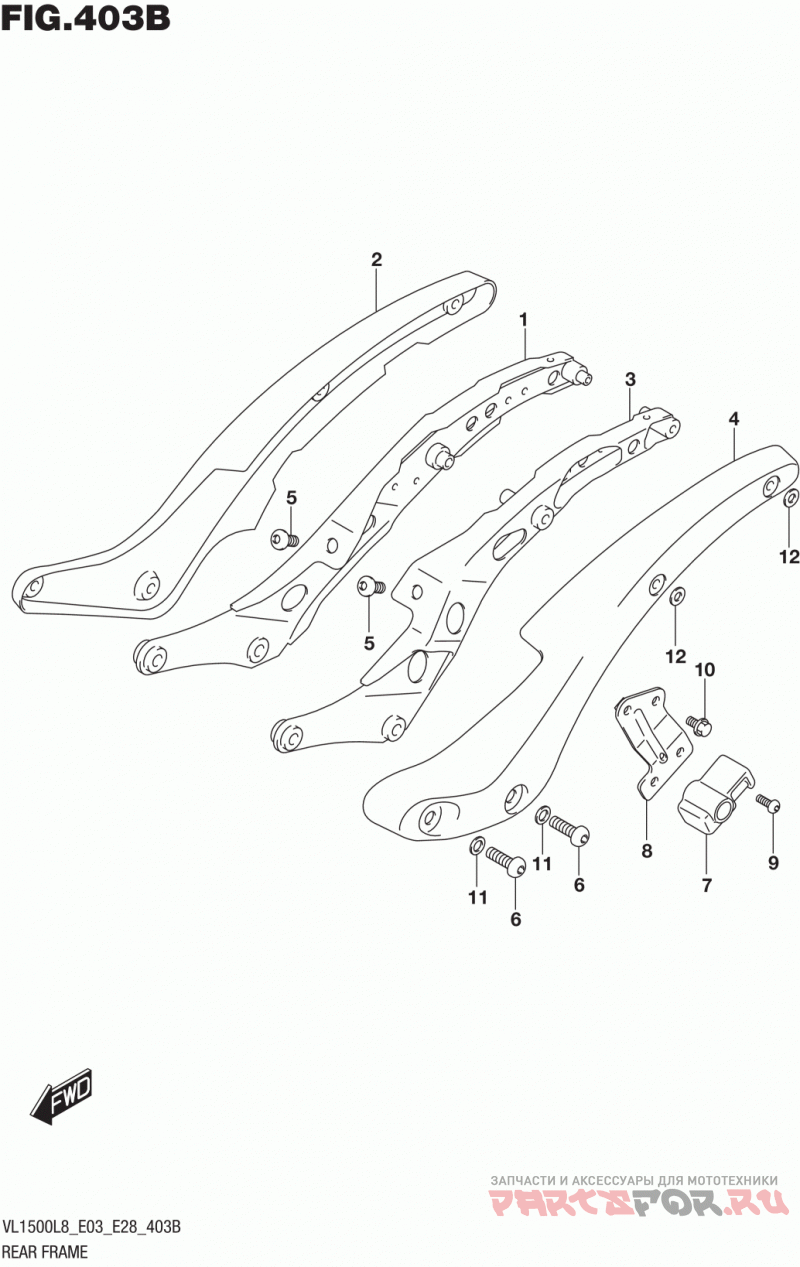

Rear frame (vl1500bl8 e28)
Suzuki (Америка) VL1500
| # | oem код | название | цена |
|---|---|---|---|
10 | 02162-0612A Винт | Винт | |
11 | 09160-10082 WASHER (10.5X19X2) (FRONT) | WASHER (10.5X19X2) (FRONT) | |
12 | 09160-08043 WASHER (8.5X18X1) (REAR) | WASHER (8.5X18X1) (REAR) | |
1 | 42650-06J00 FRAME, REAR RH | FRAME, REAR RH | |
2 | 42651-06J10 PLATE, REAR FRAME RH | PLATE, REAR FRAME RH | |
3 | 42660-06J00 FRAME, REAR LH | FRAME, REAR LH | |
4 | 42661-06J10 PLATE, REAR FRAME LH | PLATE, REAR FRAME LH | |
5 | 09139-10003 Болт (10x25) | Болт (10x25) | |
6 | 09139-10005 BOLT (10X35) | BOLT (10X35) | |
7 | 95700-41821 Замок | Замок | |
9 | 09139-06089 Винт (6x14) | Винт (6x14) |
