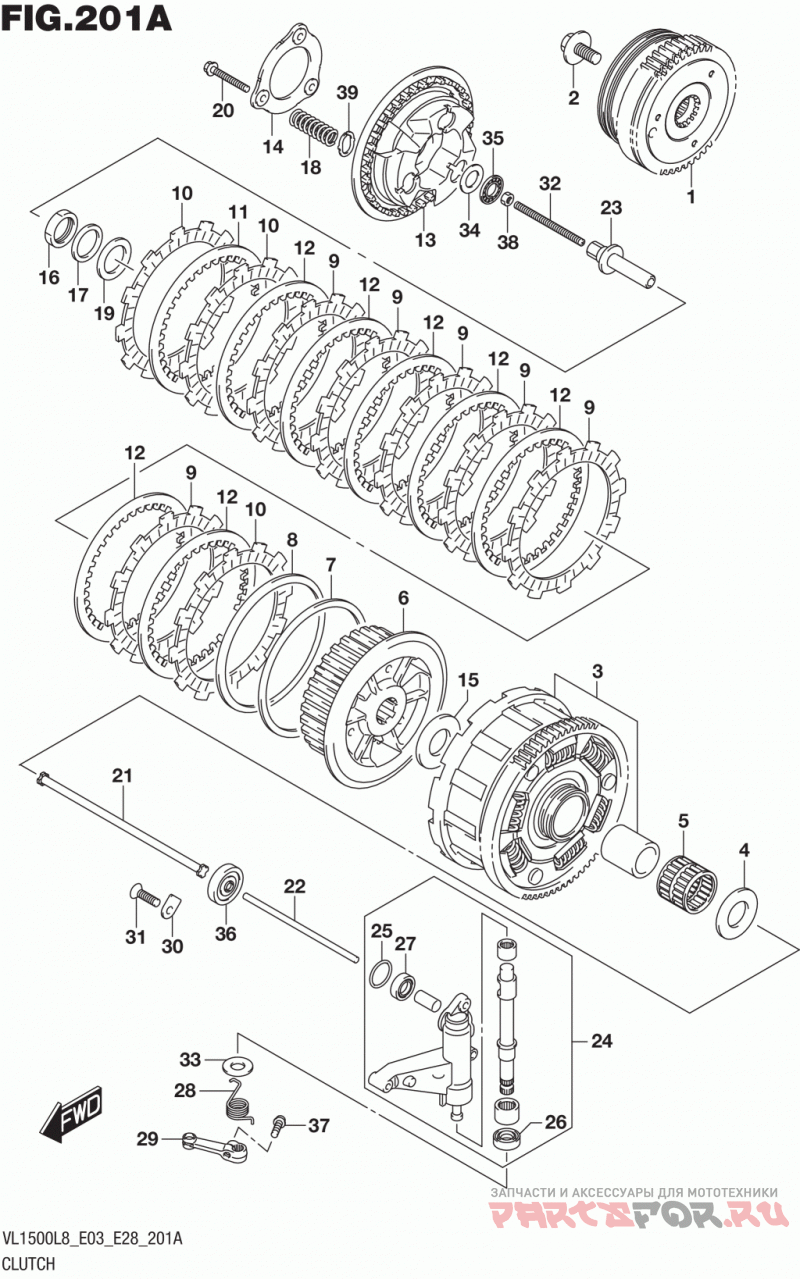

Сцепление для мотоциклов Suzuki (Америка) VL1500 (2018)

Москва и регионы России

Сцепление

Suzuki (Америка) VL1500

Сцепление

#

oem код

название

цена

10

PLATE, CLUTCH DRIVE (T:3.8)

PLATE, CLUTCH DRIVE (T:3.8)

11

PLATE, CLUTCH DRIVEN (T:2.0)

PLATE, CLUTCH DRIVEN (T:2.0)

12

PLATE, CLUTCH DRIVEN (T:2.0)

PLATE, CLUTCH DRIVEN (T:2.0)

13

DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

14

PLATE, STOPPER

PLATE, STOPPER

15

WASHER (25X50X2.5)

WASHER (25X50X2.5)

16

Гайка

Гайка

17

Шайба

Шайба

18

Пружина

Пружина

19

SHIM (25X38X1)

SHIM (25X38X1)

20

BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

21

Шток

Шток

22

ROD, CLUTCH PUSH LH

ROD, CLUTCH PUSH LH

23

PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

24

CAMSHAFT SET, CLUTCH RELEASE

CAMSHAFT SET, CLUTCH RELEASE

25

.O RING (D:2.5,ID:21)

.O RING (D:2.5,ID:21)

26

.OIL SEAL (10X20X6)

.OIL SEAL (10X20X6)

27

.OIL SEAL (10X17X5)

.OIL SEAL (10X17X5)

28

SPRING, CLUTCH RELEASE RETURN

SPRING, CLUTCH RELEASE RETURN

29

ARM, CLUTCH RELEASE

ARM, CLUTCH RELEASE

30

RETAINER, CLUTCH PUSH ROD

RETAINER, CLUTCH PUSH ROD

31

Винт (6x12)

Винт (6x12)

32

SCREW (6X73)

SCREW (6X73)

33

WASHER (10.5X24X1)

WASHER (10.5X24X1)

34

WASHER (15.5X28X1)

WASHER (15.5X28X1)

35

Подшипник (15x28x2)

Подшипник (15x28x2)

36

OIL SEAL (6X18X5)

OIL SEAL (6X18X5)

37

Болт

Болт

38

Гайка

Гайка

39

SEAT, CLUTCH SPRING

SEAT, CLUTCH SPRING

1

GEAR, PRIMARY DRIVE (NT:54)

GEAR, PRIMARY DRIVE (NT:54)

2

BOLT (14X28)

BOLT (14X28)

3

GEAR, PRIMARY DRIVEN (NT:76)

GEAR, PRIMARY DRIVEN (NT:76)

4

WASHER (25X52X2.5)

WASHER (25X52X2.5)

5

BEARING (35X40X39.8)

BEARING (35X40X39.8)

6

HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

7

SEAT, WAVE WASHER

SEAT, WAVE WASHER

8

WASHER, CLUTCH PLATE WAVE

WASHER, CLUTCH PLATE WAVE

9

PLATE, CLUTCH DRIVE (T:3.8)

PLATE, CLUTCH DRIVE (T:3.8)
