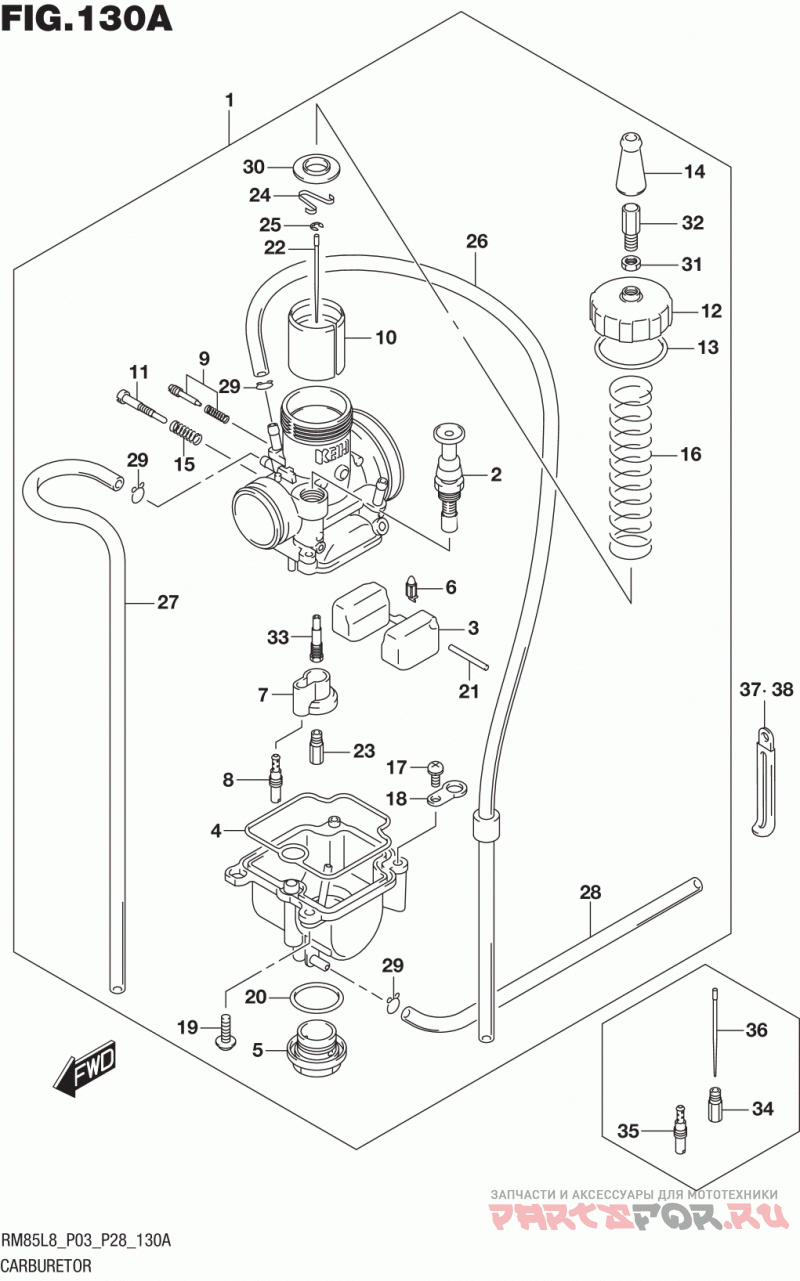

Карбюратор для мотоциклов Suzuki (Америка) RM85 (2018)

Москва и регионы России

Карбюратор

Suzuki (Америка) RM85

Карбюратор

#

oem код

название

цена

10

.THROTTLE VALVE

.THROTTLE VALVE

11

.SCREW, STOP

.SCREW, STOP

12

.COVER

.COVER

13

Прокладка

Прокладка

14

Колпачек

Колпачек

15

Пружина

Пружина

16

Пружина

Пружина

17

Винт

Винт

18

.PLATE

.PLATE

19

Винт

Винт

20

Кольцо

Кольцо

21

.PIN, FLOAT

.PIN, FLOAT

22

.NEEDLE (24NAAH)

.NEEDLE (24NAAH)

23

.JET, MAIN (128)

.JET, MAIN (128)

24

.CLIP

.CLIP

25

.CLIP, NEEDLE

.CLIP, NEEDLE

26

.PIPE ASSY

.PIPE ASSY

27

.HOSE, (4X7X620) (L:620->380)

.HOSE, (4X7X620) (L:620->380)

28

.HOSE, (4X7X620) (L:620->300)

.HOSE, (4X7X620) (L:620->300)

29

.CLIP

.CLIP

30

.VALVE PLATE

.VALVE PLATE

31

Гайка

Гайка

32

.ADJUST BOLT

.ADJUST BOLT

33

.JET, NEEDLE

.JET, NEEDLE

34-1

JET, MAIN (115) (OPT)

JET, MAIN (115) (OPT)

34-2

JET, MAIN (118) (OPT)

JET, MAIN (118) (OPT)

34-3

JET, MAIN (120) (OPT)

JET, MAIN (120) (OPT)

34-4

JET, MAIN (122) (OPT)

JET, MAIN (122) (OPT)

34-5

JET, MAIN (125) (OPT)

JET, MAIN (125) (OPT)

34-6

JET, MAIN (128) (OPT)

JET, MAIN (128) (OPT)

34-7

JET, MAIN (130) (OPT)

JET, MAIN (130) (OPT)

34-8

JET, MAIN (132) (OPT)

JET, MAIN (132) (OPT)

34-9

JET, MAIN (135) (OPT)

JET, MAIN (135) (OPT)

34-10

JET, MAIN (138) (OPT)

JET, MAIN (138) (OPT)

34-11

JET, MAIN (140) (OPT)

JET, MAIN (140) (OPT)

34-12

JET, MAIN (142) (OPT)

JET, MAIN (142) (OPT)

34-13

JET, MAIN (145) (OPT)

JET, MAIN (145) (OPT)

35-1

JET, PILOT (45) (OPT)

JET, PILOT (45) (OPT)

35-2

JET, PILOT (48) (OPT)

JET, PILOT (48) (OPT)

35-3

JET, PILOT (50) (OPT)

JET, PILOT (50) (OPT)

35-4

JET, PILOT (52) (OPT)

JET, PILOT (52) (OPT)

35-5

JET, PILOT (55) (OPT)

JET, PILOT (55) (OPT)

35-6

JET, PILOT (58) (OPT)

JET, PILOT (58) (OPT)

36-1

NEEDLE (24NAAF) (OPT)

NEEDLE (24NAAF) (OPT)

36-2

NEEDLE (24NAAG) (OPT)

NEEDLE (24NAAG) (OPT)

36-3

NEEDLE (24NAAH) (OPT)

NEEDLE (24NAAH) (OPT)

36-4

NEEDLE (24NAAJ) (OPT)

NEEDLE (24NAAJ) (OPT)

36-5

NEEDLE (24NAAK) (OPT)

NEEDLE (24NAAK) (OPT)

36-6

NEEDLE (24NCDF) (OPT)

NEEDLE (24NCDF) (OPT)

36-7

NEEDLE (24NCDG) (OPT)

NEEDLE (24NCDG) (OPT)

36-8

NEEDLE (24NCDH) (OPT)

NEEDLE (24NCDH) (OPT)

36-9

NEEDLE (24NCDJ) (OPT)

NEEDLE (24NCDJ) (OPT)

36-10

NEEDLE (24NCDK) (OPT)

NEEDLE (24NCDK) (OPT)

37

CLAMP (L:45)

CLAMP (L:45)

38

CLAMP (L:82)

CLAMP (L:82)

1

Карбюратор

Карбюратор

2

.VALVE ASSY, STARTER

.VALVE ASSY, STARTER

3

.FLOAT ASSY

.FLOAT ASSY

4

Прокладка

Прокладка

5

.BOLT, DRAIN

.BOLT, DRAIN

6

.VALVE ASSY, NEEDLE

.VALVE ASSY, NEEDLE

7

.HOLDER, JET

.HOLDER, JET

8

.JET, SLOW (50)

.JET, SLOW (50)

9

.ADJUST SCREW SET

.ADJUST SCREW SET
