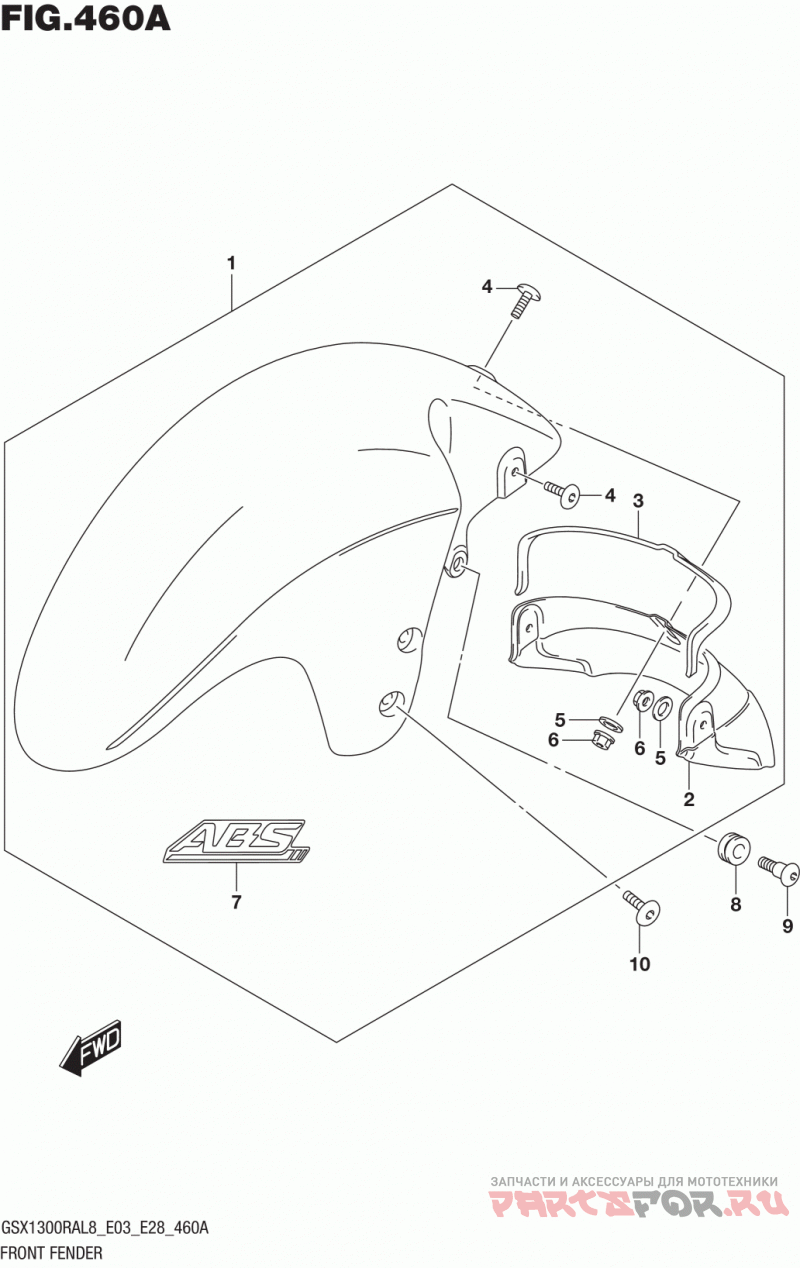

Переднее крыло
Suzuki (Америка) GSX1300R,A
| # | oem код | название | цена |
|---|---|---|---|
10 | 09139-06131 Винт (6x16) | Винт (6x16) | |
1-1 | 53100-15H10-YVB FENDER, FRONT (BLACK) (FOR YVB) | FENDER, FRONT (BLACK) (FOR YVB) | |
1-2 | 53100-15H10-YWW FENDER, FRONT (WHITE) (FOR AGS) | FENDER, FRONT (WHITE) (FOR AGS) | |
2 | 53331-15H00 .MUDGUARD, FRONT FENDER | .MUDGUARD, FRONT FENDER | |
3 | 94424-05H00 .CUSHION | .CUSHION | |
4 | 09139-06129 .SCREW (6X16) | .SCREW (6X16) | |
5 | 09160-06129 .WASHER (6.5X16X1) | .WASHER (6.5X16X1) | |
6 | 08319-3106A Гайка | Гайка | |
7 | 68151-44G00-1ZY .EMBLEM, | .EMBLEM, | |
8 | 09320-09016 Подушка | Подушка | |
9 | 09139-06146 Винт (6x16) | Винт (6x16) |
