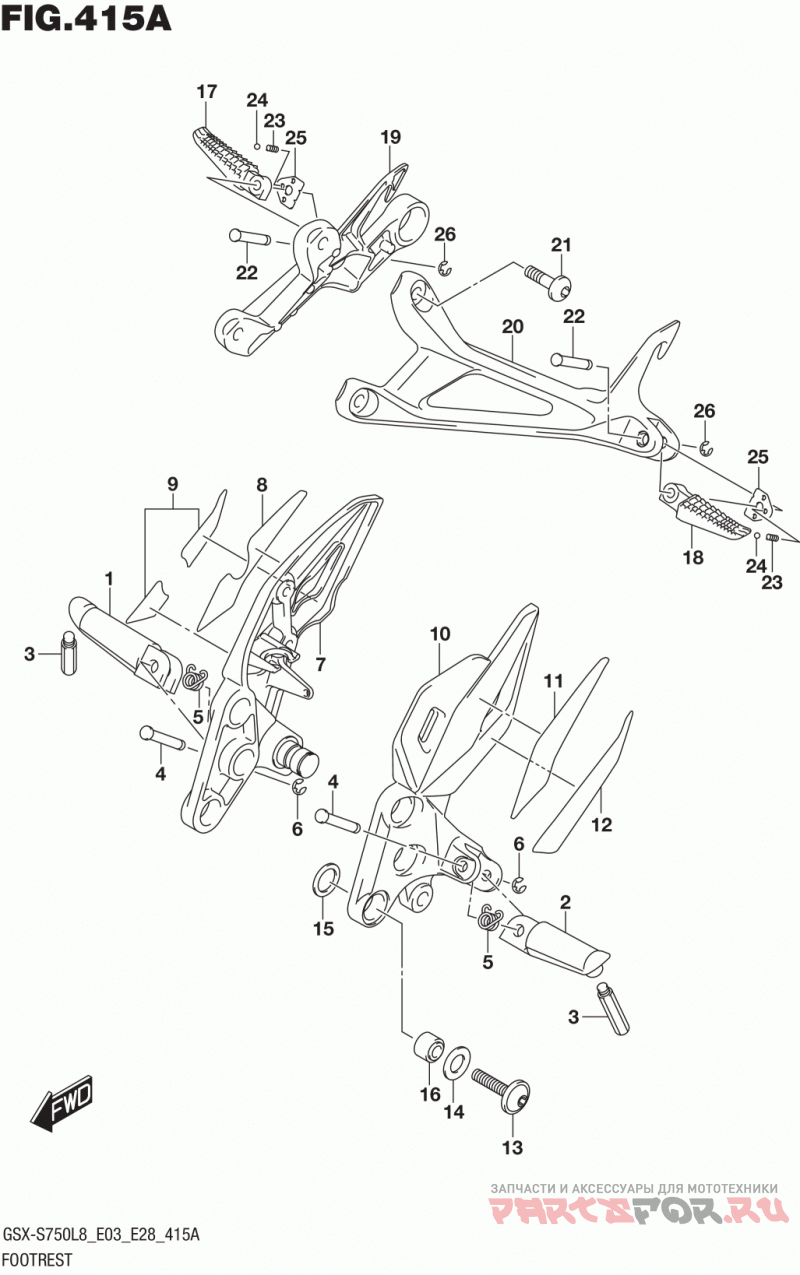

Подножки

Suzuki (Америка) GSX,S750

Suzuki (Америка)
#oem кодцена
10
43521-08J10
BRACKET, FRONT FOOTREST LH
11
43572-13K00
TAPE, FR FOOTREST NO.1 LH
12
43574-13K00
TAPE, FR FOOTREST NO.2 LH
13
09106-08147
Болт (8x30)
14
09161-13004
WASHER (13.7X24X2)
15
09161-17002
WASHER (17.2X24X2.2)
16
09319-08045
BUSH (8.4X20X16)
17
43611-37H30
BAR, PILLION FOOTREST RH
18
43621-37H30
BAR, PILLION FOOTREST LH
19
43811-08J00-YAP
BRACKET, PILLION FOOTREST RH (BLACK)
20
43821-08J00-YAP
BRACKET, PILLION FOOTREST LH (BLACK)
21
09106-08186
BOLT (8X23)
22
09208-08020
Штифт
23
09440-05003
Пружина
24
06111-07004
Шарик
25
43816-01H20
PLATE, PILLION FOOTREST RH
26
08332-1106A
E RING
1
43516-35F20
BAR, FRONT FOOTREST RH
2
43526-35F20
BAR, FRONT FOOTREST LH
3
43576-48B60
Болт
4
09208-08019
Штифт
5
43581-13K00
SPRING, FRONT FOOTREST
6
08332-1106A
E RING
7
43510-08J10
BRACKET, FRONT FOOTREST RH
8
43571-13K00
TAPE, FR FOOTREST NO.1 RH
9
43573-13K00
TAPE, FR FOOTREST NO.2 RH
