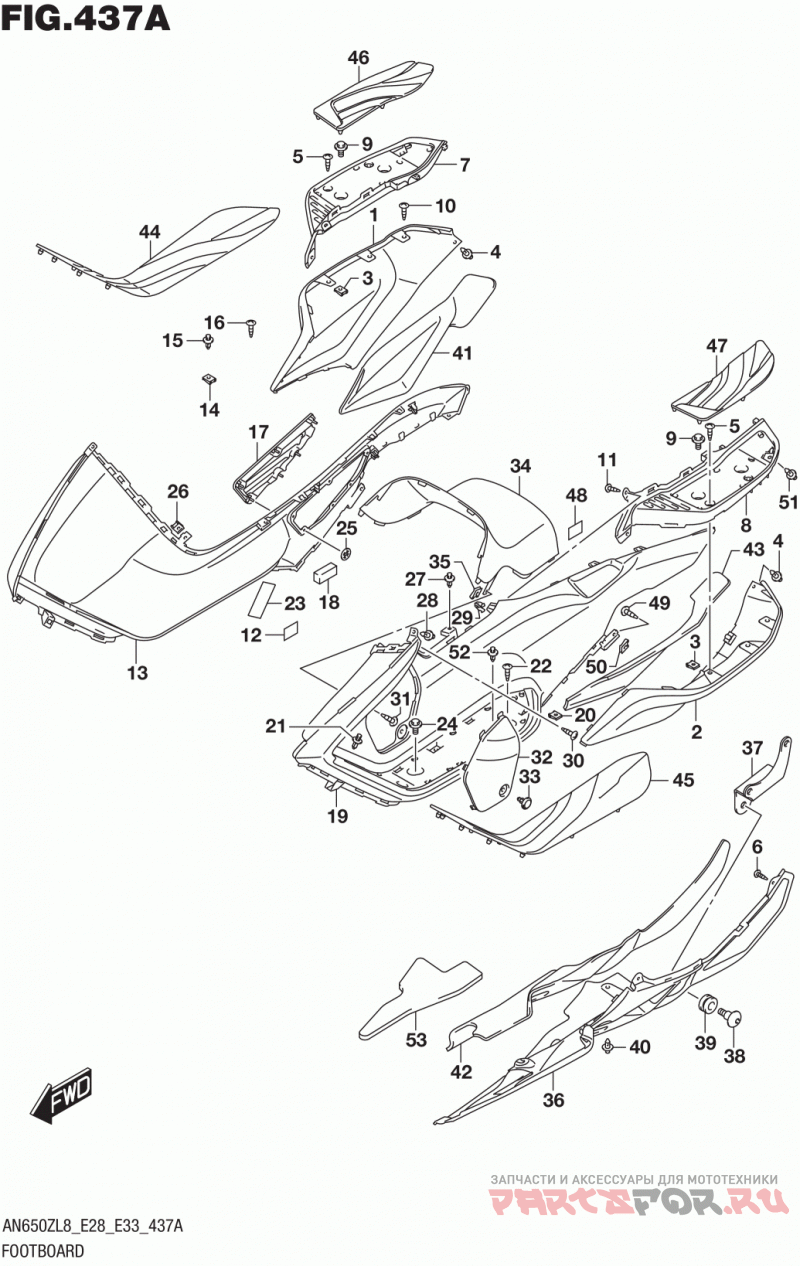

Footboard

Suzuki (Америка) AN650Z

Suzuki (Америка)
#oem кодцена
10
03541-0512A
Винт
11
03541-0516A
Винт
12
33652-13G00
CUSHION, FOOTBOARD NO.2
13
48120-26J50
FOOTBOARD, RH
14
09148-05038
Гайка
15
09409-06314-5PK
.CLIP
16
03541-0512A
Винт
17
48123-26J50
LOUVER, AIR RH
18
48127-10G00
CUSHION, FOOTBOARD NO.1
19
48130-26J50
FOOTBOARD, LH
20
09148-05038
Гайка
21
09409-06314-5PK
.CLIP
22
03541-0512A
Винт
23
48327-26J00
SHIELD, FOOTBOARD RH
25
09148-03010
Гайка
26
09148-05038
Гайка
27
09409-06314-5PK
Зажим
28
09409-06329
Зажим
29
09409-08326
Зажим
30
03541-0516A
Винт
31
03541-0516A
Винт
32
48191-26J51
LID, MAINTENANCE
33
94479-35F00
CLIP, MAINTENANCE LID
34
48124-26J50
COVER, CENTER
35
09148-05038
Гайка
36
48138-26J50
COVER, UNDER CTR
37
48330-10G00
BRACKET, UNDER COVER
38
09139-06190
Болт (6X20)
39
09320-09016
Подушка
40
09409-07333
Зажим
41
48313-26J00
CUSHION, REAR FOOTBOARD LOWER
42
48316-26J00
CUSHION, UNDER COVER LOWER
43
48323-26J00
CUSHION, REAR FOOTBOARD LOWER
44
48211-26J00-291
MAT, FLOOR FRONT RH (BLACK)
45
48221-26J00-291
MAT, FLOOR FRONT LH (BLACK)
46
48231-26J00-291
MAT, FLOOR REAR RH (BLACK)
47
48241-26J00-291
MAT, FLOOR REAR LH (BLACK)
48
17798-29E30
CUSHION, FOOTBOARD NO.3
49
03541-0516A
Винт
50
09148-05038
Гайка
51
09409-06314-5PK
Зажим
52
09409-06314-5PK
CLIP (LH)
53
48317-26J00
CUSHION, UNDER COVER LWR NO.2
1
48127-26J20-YKV
FOOTBOARD, REAR LOWER RH (BLACK)
2
48128-26J20-YKV
FOOTBOARD, REAR LOWER LH (BLACK)
3
09148-05038
Гайка
4
09409-06314-5PK
Зажим
5
03541-0512A
Винт
6
03541-0516A
Винт
7
48125-26J50
FOOTBOARD, REAR UPPER RH
8
48126-26J50
FOOTBOARD, REAR UPPER LH
9
09111-06109
BOLT (6X14.8)
