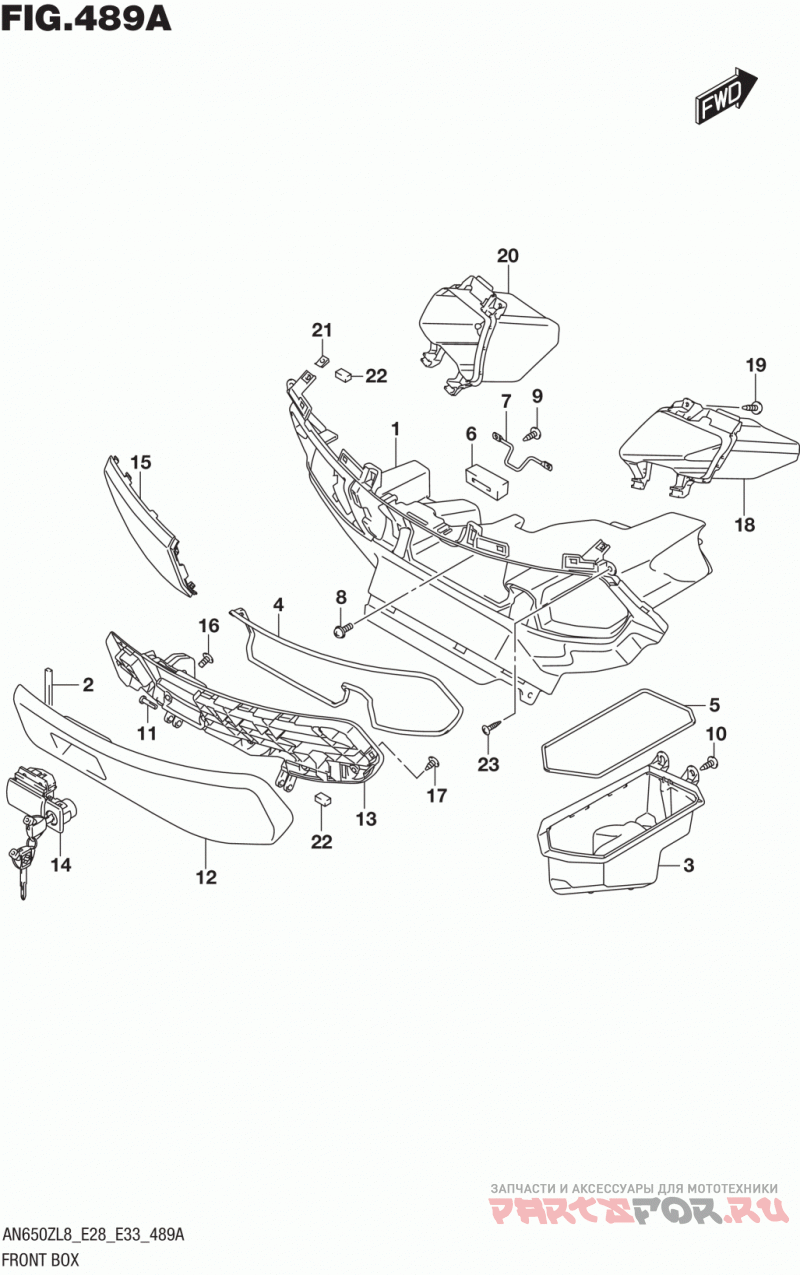

Передний ящик

Suzuki (Америка) AN650Z

Suzuki (Америка)
#oem кодцена
10
03541-0516A
Винт
11
73423-50G00
PIN, GLOVE BOX HINGE
12-1
92121-26J00-PGZ
LID, FRONT BOX OUTER (GRAY)
12-2
92121-26J00-YKV
LID, FRONT BOX OUTER (BLACK)
12-3
92121-26J00-YWW
LID, FRONT BOX OUTER (WHITE)
13
92122-26J50
LID, FRONT BOX INNER
14
92100-10841
LOCK SET, LID
15-1
92161-26J01-PGZ
LID, CLNR MAINT (GRAY)
15-2
92161-26J01-YKV
LID, CLNR MAINT (BLACK)
15-3
92161-26J01-YWW
LID, CLNR MAINT (WHITE)
16
02142-0512B
Винт
18
92141-26J00
BOX, FRONT PANEL RH
19
03541-0516A
Винт
20
92151-26J00
BOX, FRONT PANEL LH
21
09148-05038
Гайка
22
17798-39G00
CUSHION (CUT AS REQUIRED)
23
03541-0516A
Винт
2
92123-26J00
CUSHION, FRONT BOX OUTER LID
3
92112-26J00
COVER, FRONT BOX INNER
4
92114-26J00
CUSHION, FRONT BOX NO.1
5
92113-26J00
CUSHION, FRONT BOX INNER
6
92116-10G00
CUSHION, FRONT BOX NO.3
7
92171-26J00
STRIKER, FRONT BOX
8
09136-06157
Винт (6x16)
9
03541-0516A
Винт
