Secondary drive gear для мотоциклов Suzuki (Америка) VL800 (2017)

Москва и регионы России

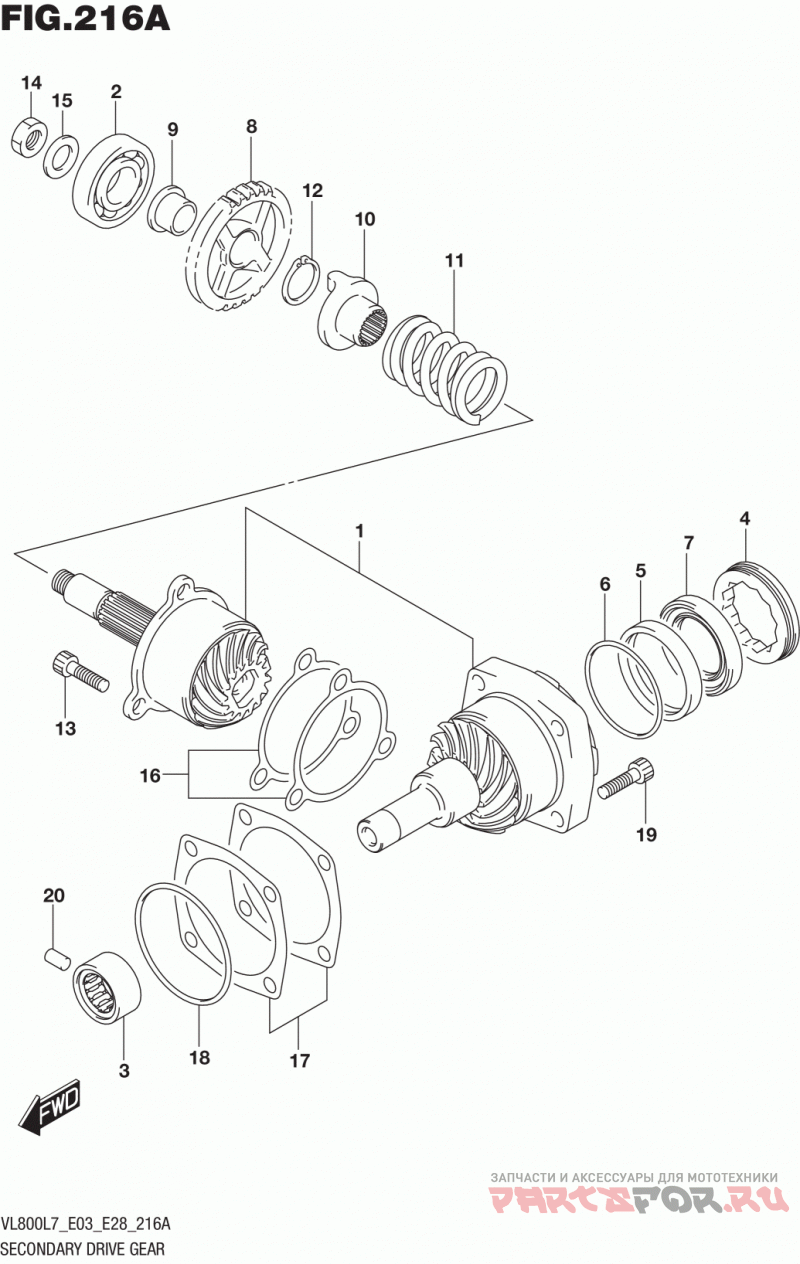

Secondary drive gear

Suzuki (Америка) VL800

Secondary drive gear

#

oem код

название

цена

10

DOG, OUTPUT CAM

DOG, OUTPUT CAM

11

Пружина

Пружина

12

Пружинное стопорное кольцо

Пружинное стопорное кольцо

13

BOLT (8X25)

BOLT (8X25)

14

Гайка

Гайка

15

WASHER (16X29X4)

WASHER (16X29X4)

16

SHIM SET, SEC DRIVE GEAR (T:0.3/0.35/0.4/0.5/0.6)

SHIM SET, SEC DRIVE GEAR (T:0.3/0.35/0.4/0.5/0.6)

17

SHIM SET, SEC DRIVE HOUSING (T:0.3/0.35/0.4/0.5/0.6)

SHIM SET, SEC DRIVE HOUSING (T:0.3/0.35/0.4/0.5/0.6)

18

O RING (D:2.1,ID:66.2)

O RING (D:2.1,ID:66.2)

19

BOLT (8X25)

BOLT (8X25)

20

Штифт

Штифт

1

GEAR & HOUSING SET, SECONDARY

GEAR & HOUSING SET, SECONDARY

2

.BEARING (20X52X15)

.BEARING (20X52X15)

3

.BEARING (20X34X16)

.BEARING (20X34X16)

4

.STOPPER, BEARING

.STOPPER, BEARING

5

.HOUSING, OIL SEAL

.HOUSING, OIL SEAL

6

.O RING (D:1.2,ID:59.6)

.O RING (D:1.2,ID:59.6)

7

.OIL SEAL (38X54X8.5)

.OIL SEAL (38X54X8.5)

8

GEAR, REDUCTION DRIVEN (NT:30

GEAR, REDUCTION DRIVEN (NT:30

9

Втулка

Втулка
